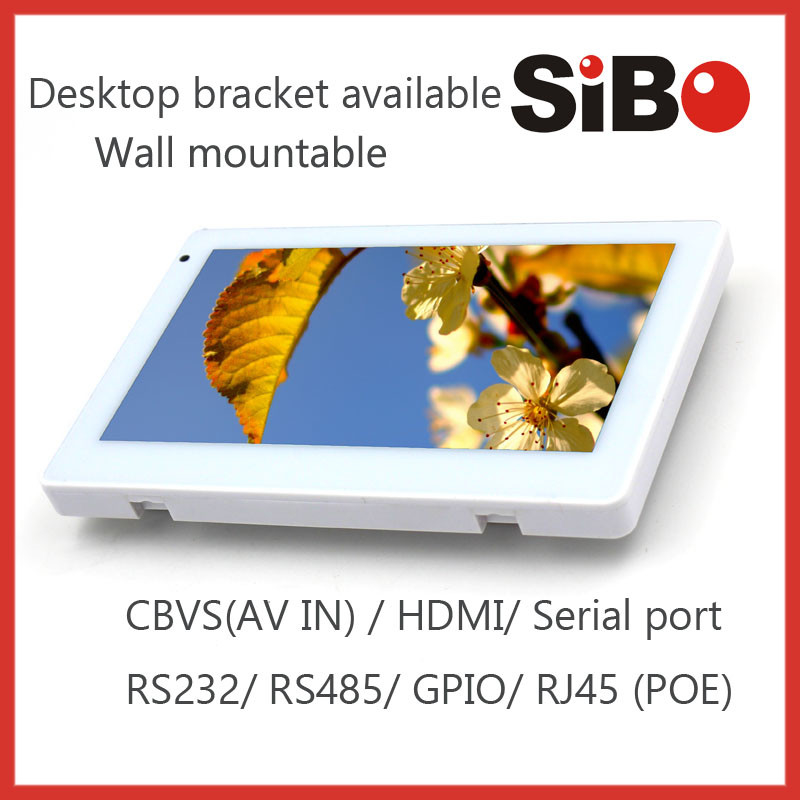

Embedded Tablet PC With RS232 And POE

Large Image : Embedded Tablet PC With RS232 And POE Get Best Price

Product Details:

Place of Origin:	Shenzhen
Brand Name:	SiBo
Model Number:	Q896
Interface:	CVBS , HDMI, GPIO , RJ45, USB
Power Supply:	POE / DC IN (9V - 24V)
Display:	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
Port:	RJ45 / RS232 / RS485
Feature:	3G, Camera, Multi Touch, Wifi, Bluetooth
CPU:	ARM Cortex A7 Dual-Core, 1.2Ghz

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece (sample)
Delivery Time:	25 working days after receipt of deposit
Payment Terms:	T/T in advance,30% deposit needed before production,70% T/T before delivery.
Supply Ability:	30000 Pieces per Month

Contact Now

Detailed Product Description

High Light:

Embedded Tablet PC

Tablet With RS232

Andriod Tablet WIth POE

Embedded Tablet PC With RS232 And POE

Embedded Tablet PC With RS232 And POE

Application:

The Tablet PC can directly be embedded into a wall , be placed on wall / or desktop with rich application for home application and Industrial control so on.

Features:

IPS Touch Screen (G+G glass)
Android 4.2.2
Interface: CVBS , HDMI, Serial port , GPIO , Uart interface
No buttons design
Slim Body with 3 Brackets for wall mounting
Web Camera & Mic
POE
Boot Up when Power Supply
In wall / On wall version

Model Number		Q896
Hardware Specs	Solution	Allwinner Dual-Core Cortex™-A7 CPU
	CPU	ARM Cortex A7 Dual-Core, 1.2Ghz
	Display	7 Inch IPS Display, Resolution:1024 x 600, Brightness: 350 cd/m2
	RAM	1GB
	Nand Flash	4GB

Software Feature	System	Google Android 4.2.2
	Video	H.264 2160p video decoding, Multi-format FHD video decoding, including Mpeg1/2, Mpeg4 SP/ASP GMC, H.263, H.264, VP6/8, AVS jizun, Jpeg/Mjpeg,etc. H.264 High Profile 1080p@30fps or 720@60fps encoding 3840 x 1080@30fps 3D decoding, BD/SBS/TAB/FP supported Complies with RTSP, HTTP, HLS, RTMP, MMS streaming media protocols


	Audio	One Speaker 1×1 Watt(intergrated)3W Amplifier
	Language	Support multi-languages

Interfaces	Back	Ethernet Interface(RJ45)
		HDMI Out
		USB Socket
		CVBS IN
		DC IN Power Terminal
		Optional:RS232,RS485,1×GPIO IN, 1×GPIO OUT

Network	WIFI+Bluetooth	WIFI (802.11b/g/n), Bluetooth v2.1+EDR/Bluetooth 3.0/3.0+HS/4.0
Network	LAN Port	Ethernet RJ45

Power Supply	DC IN POE(optional)	DC 9V - 24V IEEE802.3AF(48V)
Boot Up: Auto Power on (without buttons)

It is Wall Tablet , no battery , no buttons (with auto power on feature), it is Serial port Tablet , It is a GPIO tablet, all good features for home automation and so on

A real POE tablet PC can works with POE standard of IEEE 8023.AF, compatible with 12V DC.

Q896 INTERFACE:

1.HDMI OUT

2.CVBS IN

3.DC IN (9-24V)

4.RJ45

5.USB

6.UART, IO , 3W AMP OUT

7.SLOTS FOR MOUNTING

8.SCREWS FOR MOUNTING

Tablet with RS232 (With RS232 to RS485 Converter)

Tablet with RS485

Flush mounting installation:

On wall mounting:

Desktop mounting

welcome to place the oem order about home automation applications ,if you have any demands about the production please contact me immediately, looking forward to built a cooperation relationship with you ,thanks
