Launch X431 Scanner , Launch X431 Pad With 9.7” LCD Touch Screen


Launch X431 Scanner , Launch X431 Pad With 9.7” LCD Touch Screen

Expandable PC Based Diagnostics Tablet The Launch Pad, running on Windows 7, offers a true PC-Based Diagnostic Scan Tool experience that is both wireless to the car and the internet. Multiple applications can be run simultaneously and at blazing fast speeds. Perform diagnostics, view graphs, and record PID data all while on the web gathering diagnostic information from your favorite repair database. Bi-directional controls, module coding, and the latest in OE level coverage and capabilities � for Asian, European and Domestic carlines - are right at your fingertips with the Launch Pad. Add-on Modules such as a Lab Scope, Sensor Simulator and Battery Tester, make the Launch Pad the perfect choice for those needing a scan tool with added diagnostic and repair capabilities. Ultra-fast, sturdy and ergonomic and with a highly intuitive interface, the Launch Pad is a must have for today�s modern technician.

Launch X431 PAD X-431 PAD Key features:

• 9.7” LCD touch screen with IPS offering unmatched off axis viewing and clarity
• 1.3 mega pixel camera with video
• Delivered complete with all connectors and cables
• Built-in thermal printer
• 12 months of software updates included
• 75 manufacturer programmes in the expanded vehicle coverage
• ‘One button’ software updates
• Live data streaming and instant print outs of fault codes
• Optional modules expand on the Pads capability
• MENS (Multi Euro Networking System) - Exclusive to Launch UK customers

Diagnosis Based Solutions (DBS) is the culmination of two decades of expertise, and the heart of DBS is a Launch designed microchip located in the diagnostic connector.
The Euro Pad is truly wireless with an embedded Windows® 7 operating system. This PC based system features a one key system restore button and allows multiple applications to be run at the same time with no loss of speed. It gathers repair information from the internet while you read the live data streams from the diagnostic process, allowing you to switch functions seamlessly.
It is possible through a VPN connection with the Launch server to transfer images and videos, and to allow a remote support centre to control the Euro Pad functions while connected to a vehicle. In addition there is a superb feedback function which allows users to send fault reports directly to the Launch service centre server.
Save screenshots while working for review later and print out reports for archiving with the built-in thermal printer. This flexible and versatile solution to car diagnostics is the next generation in Launch technology, offering a number of essential functions with convenient wireless capabilities.


Launch X431 PAD X-431 PAD Specifications:

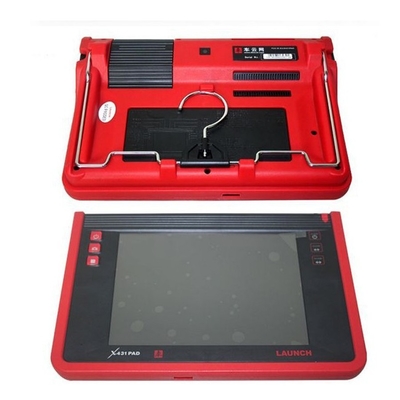

• Display: 1024 x 768 • 9.7” Touch Screen with IPS Technology
• Operating System: Windows® 7
• CPU: 1.6Ghz Intel® Atom N280
• RAM: 2GB
• Storage: 16GB Solid-State Hard Drive
• Weight: 6.6 lbs (3 kg)
• Dimensions: Height 12.1” (307mm), Width 8.42” (214mm), Depth 2.6” (67mm)
• Working Temp: 14 – 131 F (-10 - +55 C )
• Wireless: Wi-Fi 802.11 b/g/n

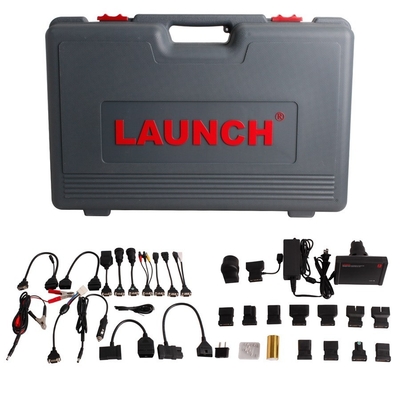

Launch X431 PAD X-431 PAD Included hardware:

• X-431 PAD main unit

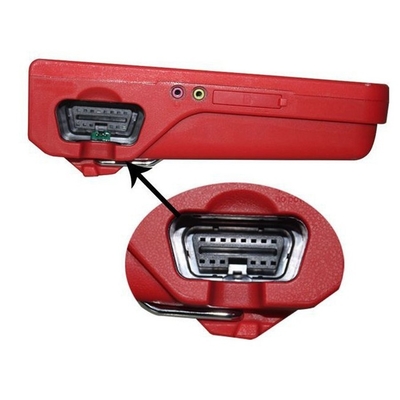

• DBScar diagnostic connector
• DBScar USB cable
• Cigarette light cable
• Power adaptor
• Stylus
• OBD II extension cable
• Non-16 PIN connectorPrinter paper roll
• Connectors: Toyota 17-pin, Toyota 22-pin, Toyota 16-pin, BMW 16-pin, BMW 20-pin, Mercedes 38-pin, Sprinter 14-pin, Universal 3-pin, Honda 3-pin, Chrysler 6-pin, Chrysler 16-pin, VW/Audi 2x2-pin, GM/Daewoo 12-pin, Fiat 3-pin, Smart OBDII, Mazda 17-pin, Ford 6+1-pin, Kia 20-pin, Mitsubishi/Hyundai 12+16-pin, Nissan 14+16-pin, Audi 16 (KKL) adapter

Launch X431 PAD X-431 PAD Included software:
Audi, BMW/Mini, Mercedes, Volkswagen, Volvo, Saab, Porsche, Sprinter, Smart, Land Rover/Range Rover, Jaguar, Toyota, Lexus, Honda, Acura, Nissan/Infiniti, Subaru, Suzuki, Mazda, Mitsubishi, GM, Ford, Chrysler, Kia, Daewoo, Ssangyong, EOBD/OBD II, EOBD/OBD II CAN, Isuzu, Opel, Fiat, Renault, Peugeot, Citroen, Skoda, Seat, Rover.
