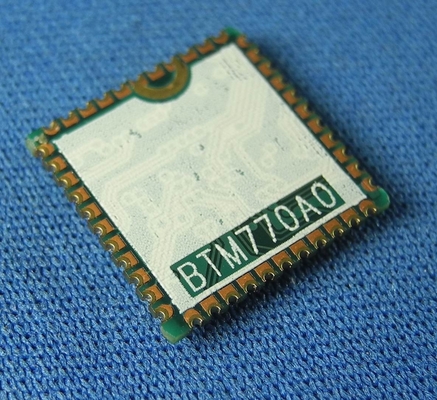

USB UART Internal Bluetooth Module
Product Description

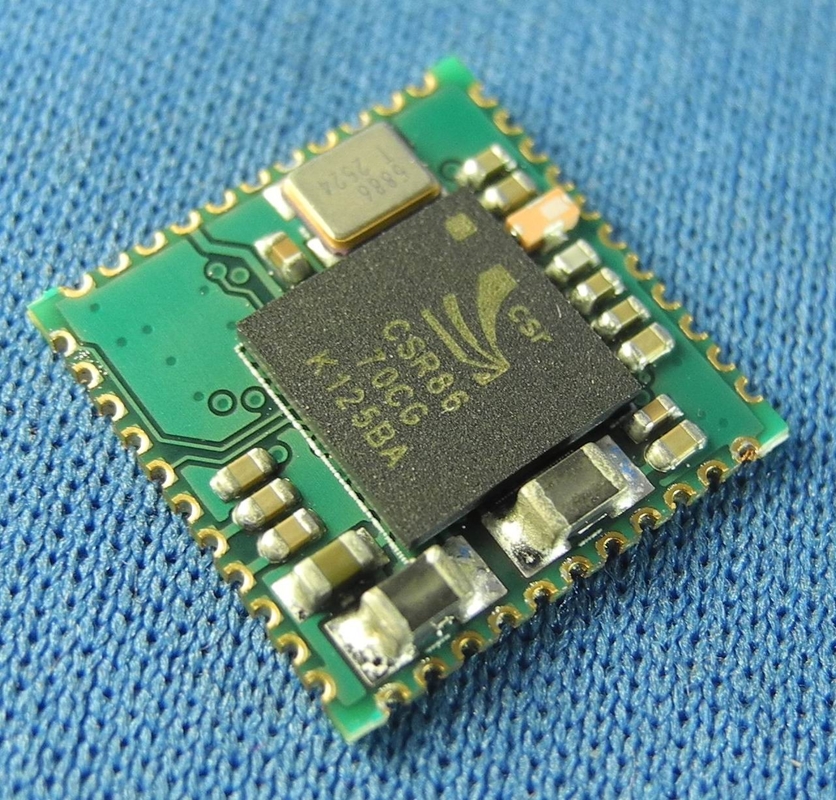

This is a Bluetooth Class2 (max 4dBm) dual mode module. It is based on the most advanced CSR8670 chip set and the latest ADK, it can support Bluetooth V4.0 standard. The new RISC MCU core and 80MIPS Kalimba DSP Co-Processor enable not the existing Bluetooth multi-media function such as echo cancellation, noise reduction and stereo audio (A2DP audio) communications but also extended features for future. The highly integrated hardware includes high quality stereo DAC, high current (200mA) battery charger and, switch regulator. This makes the system design easier and save costs of external components. The host Interfaces include USB and UART, that are programmable for data communication, module control or firmware upgrade.
The powerful and flexible design allows the module to support HSP/HFP/A2DP/AVRCP SPP, PBAP,…all kinds of Bluetooth profiles. Further more, the aptX, AAC, MP3 HIFI audio streaming are also supported.
Applications
- High quality wireless stereo headset.
- High quality wireless stereo speaker.
- High quality wireless stereo transmitter.
- High quality wireless microphone
- Wireless USB audio class device.
- Dual paring mono headsets with noise reduction capability.
- Hands-free car kits.
- VOIP or land line phones wireless headsets.
- Bluetooth Audio Gateway
Product Benefits
- Powerful and flexible that fits various kinds of the Bluetooth applications.
- Compact Bluetooth stack firmware, easy to use.
- Embedded high current (200mA) Li-ion battery charger.
Product Specification
|
Dimension |
12.4x12.4x1.8 mm |
|
Bluetooth Standard |
V4.0 |
|
RF Power |
-6dBm to +4dBm |
|
Receiving Sensitivity |
-86dBm |
|
Program Flash Memory |
16M bits |
|
Audio Interfaces |
Analog stereo, dual microphone inputs |
|
Host Interface |
USB and UART |
|
Supply Voltage |
3.3V – 4.4V |
