1024 x 768 10.4" Color lcd display module Chinmei G104X1-L03 with full view angle
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 10.4 Inch | Resolution: | 1024x768 |
|---|---|---|---|
| Brightness: | 350 Cd/m2 | Contrast Ratio: | 1000:1 |
| View Angle(L/R/U/D): | 88/88/88/88 | Interface: | LVDS |
| Operating Temperature: | -20~70℃ | Storage Temperature: | -20-70℃ |
| High Light: | Chimei LCD display,tft lcd module |
||
1024x768 xga 10.4" color tft lcd screen Chinmei G104X1-L03
Specifications:
| Module number | G104X1-L03 |
| Type | a-Si TFT LCD |
| Size | 10.4 inch |
| Brand | CMI |
| Resolution | 1024x768 |
| Width:Height | 4:3 |
| Pixel Pitch | 0.2055×0.2055 (mm) |
| Active Area | 215.4×161.8(mm) |
| View angle | R/L/U/D 88/88/88/88 (Deg) |
| Mode | Super MVA, normally black, transmissive |
| LCD Surface | Anti-glare |
| Number of Colors | 262K/16.2M(6 bit/6 bit+FRC) |
| Electrical Interface | lvds(1ch, 8 bit) |
| Brightness | 350 cd/m2 |
| Contrast ratio | 1000:1 |
| Outline dimension | 238.6x175.8x6.0mm(Typ.) |
| Panel weight | 280g(Typ.) |
| Backlight | WLED |
| Power Consumption | 5.10W |
| Supply Voltage (V) | 3.3V |
| Response time | 14/11 (ms) |
| Operate temperature | -20-70 (°C) |
| Storage temperature | -20-70 (°C) |
| Application |
Special for industrial grade use
|
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- WLED backlight & Backlight replaceable & LED driver integrated;
-- Full view angle 88/88/88/88;
-- 6/8 bit optional;
-- SAG surface;
-- 180 Deg. rotation view support.

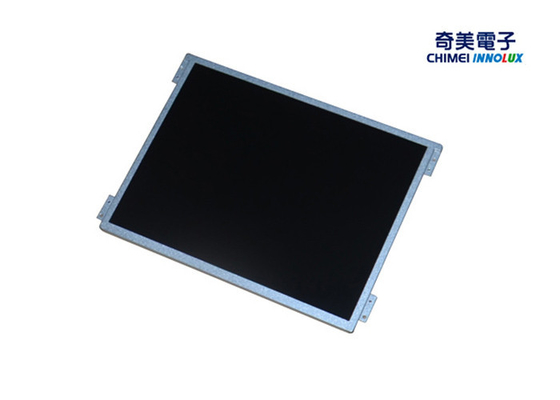

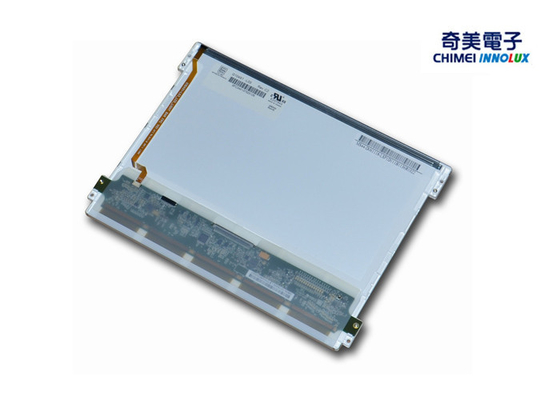

Product Show:
