10.1" LCD Touch Panel Adhesive I2C Interface 10 Multi - Touch Points

large.img.alt
small.img.alt small.img.alt

Large Image :  10.1" LCD Touch Panel Adhesive I2C Interface 10 Multi - Touch Points Get Best Price

Product Details:
Place of Origin: China
Brand Name: SCT Touch
Certification: ISO9001, ISO14001, TS16949, CE, FCC, ROHS
Model Number: SCT-GA0-004052W
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: US$1-30/pc
Packaging Details: 1pc/blister tray, 10pcs/carton, 60*45*30cm
Delivery Time: 7-15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1.5KKpcs/month
Detailed Product Description
Active Area: 217.58 X 136.36mm Outline Dimension: 248.8 X174.5mm
Multi Touch: 10 Points Structure: GG
Size: 10.1 Inch Port: I2C
High Light:

surface capacitive touch screen

,

multi touch panel



10.1" LCD Touch Panel Adhesive I2C Interface 10 Multi - Touch Points





Quick Detail:



  1. Cover Glass + ITO Glass + Adhesive+ FPC
  2. Interface: I2C
  3. IC Model: GT928
  4. Work Voltage: 2.8V-3.3 V
  5. Application: Tablet PC



Touch Panel Specification:



  Model No.

   SCT-GA0-004052W

  Structure    GG

  Size

   10.1"

  Connection    COF
  IC Model    GT928
  Interface    I2C
  Operating System    Android

  Active Area

   217.58 x 136.36mm

  Outline Dimension

   248.8 x174.5mm

  ITO Glass    0.55mm
  Cover Glass    0.7mm
  Adhesive    0.165mm

  Total Thickness

   1.4±0.1mm

  Multi Touch

   10 Points

  Transparent

   ≥87%

  Surface Hardness     6H

  Operating temperature

   -20℃~70℃, ≤90%RH

  Storage temperature

   -30℃~80℃, ≤90%RH





Main Structure:



■ GG structure

GG structure is cover glass plus sensor glass technology solution, with high transmittance, good effect of protecting scratch and also harder than PG structure.



■ OGS structure

OGS is one glass solution, directly form ITO conducting film in the protective glass and use the sensor technology. It has the advantage of the simple structure, light, thin and good transmitting etc.



■ PG structure

PG structure uses one PET film plus sensor glass solution. Mature process technology greatly reduces the failure rate and cost. It has the same level weight with OGS structure.





Application:



  1. Tablet PC (MID)
  2. Household appliance
  3. Bank system
  4. Smart home system
  5. Industrial equipment
  6. All In One (AIO)
  7. Car navigation (GPS)
  8. Smart phone
  9. Ultra book
  10. Education electronics





Main Material:



IC: from Taiwan, America etc.

Film: from Japan, Korea etc.

Glass: from Japan, America, Germany etc.





Environment Condition:



            Item

            Value

   working environment

   -20℃~70℃, ≤90%RH

   storage environment

   -30℃~80℃, ≤90%RH





Mechanical Characteristics:



          Item

            Value

   finger contact area

   Φ≥5mm

   transmittance

   ≥87%





Electric Characteristics:



         Item

       Value

  working voltage

   DC2.8~3.3V

  insulation resistance

   >20M, DC25V

  working current

   12mA~14.5mA

  response time

   ≤16ms





Reliability Condition:



       Item

      condition

  high temperature and humidity

   60℃, 90%RH, 96H

  high temperature storage

   70℃/120H

  thermal shock

   -20℃(0.5H)~+70℃(0.5H) by 100 cycles





Assembly Precautions:



  1. Do not exert extra force to touch panel.
  2. Since touch panel is transparent and clear, make sure to wear fingerstall or glove before touching. Be careful of your hands and other parts from injury at handling by glass corners.
  3. When handling, make sure to hold the touch panel borders not center parts to avoid dirt to touch panel. Do not lift touch panel by tail to avoid tail loosen.
  4. When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
  5. Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert extra force to tail tip and cause tail loosen.
  6. Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
  7. If there is air groove on touch panel, when design product structure, make sure no liquid and powder near the air groove.
  8. In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling gap between touch panel and case.





Why Choose Us?



■ Research & Development



SENCENT has a dedicated team of experienced R&D specialists and engineers who produce creative solutions, which meet the growing requirements of the modern world. We own state-of-the-art manufacturing facilities and advanced production methods ensure consistent quality as well as high efficiency rate.





■ Wide product Range



SUNCENT offers products for a wide variety of applications.
TOUCH PANEL widely applied to Tablet PC, AIO Computer, Ultrabook, GPS Navigation, Car infotainment, Smart phone, Mobile Terminal, POS machine, Electric learning products, Security system, Home appliance, Medical device, Metering device etc.





■ Powerful Supplier



Customers’ satisfaction is our company’s dignity forever, we will make great effort to develop new and top-quality products, meet your special requirements for the research and development of the products and provide you perfect service system consisting of pro-sale, on-sale and after-sale service. Suncent always target to do the maximum efforts to reach win-win with our customers.





■ Quality & Management



SENCENT has passed ISO9001:2008 quality management system certificate and ISO14001:2004 environment system certificate. Together with the strong financial background, outstanding research teams, it makes SUNCENT’s technical level to become the industry’s leading position. Mature technology and strict quality management system are our basis.





■ Nice Warrenty



SUNCENT provides not only warranty for each product but also post-warranty servicing, consultations, and maintenance. Furthermore, SUNCENT offers production of tailor-made equipment to suit specific customer requirements and provide professional solutions for ODM/OEM partners.





■ Service Guarantee



Based on our powerful factory, we ensure every order will be produced on time, customers can understand their order status including producing.

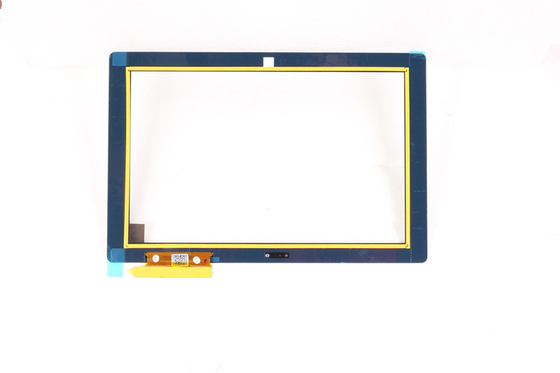

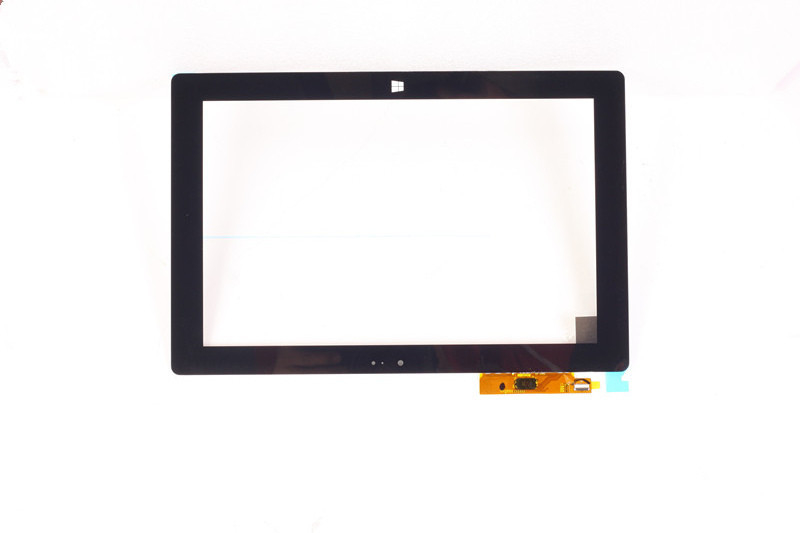

10.1" LCD Touch Panel Adhesive I2C Interface 10 Multi - Touch Points 010.1" LCD Touch Panel Adhesive I2C Interface 10 Multi - Touch Points 1
