12832K7 Graphic LCD Display COB white on blue , STN alphanumeric lcd display
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic Lcd Display | Dots: | 128*32 |
|---|---|---|---|
| Controller IC:: | ST7565R | Drive Method:: | 1/64 Duty; 1/9 Bias |
| Active Area:: | 51.16X15.32 Mm | Interface: | Serial/parallel Port, Optional |
| Polarizer Type:: | Transflective, Positive | Operating Temperature: | –20ºC TO +70ºC |
| Storage Temperature: | –30ºC TO +80ºC | ||
| High Light: | alphanumeric lcd display,graphic lcd module |
||

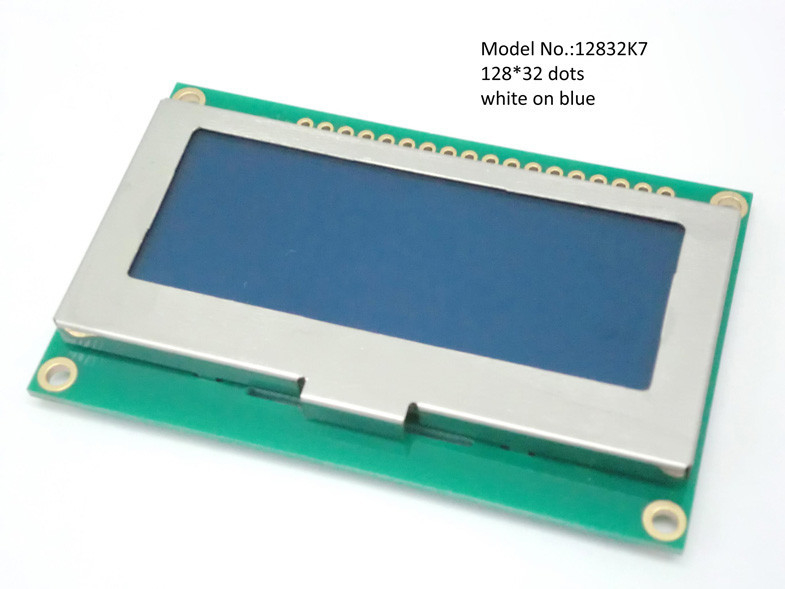

128*32 Graphic LCD Display white on blue with ST7565R controller
Specification:
| Model NO.: | 12832K7 |
| LCD Outline Size: | 70*44*8.7 mm |
| View Area: | 56.9*21.4 mm |
| Active Area: | 51.16X15.32 mm |
| Display Type: | STN, blue |
| Polarizer Type: | Transflective,positive |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/64 Duty; 1/9 Bias |
| Controller IC: | ST7565R |
| interface: | Serial/parallel port, optional |
| Backlight type: | blue |
| Backlight Supply Voltage: | +3.0V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Welcome to customize product!
we have a professional R&D team working for you !
