Size: | 8.4 Inch | Resolution: | 640*480 |
---|---|---|---|
Brightness: | 300 | Contrast: | 400:1 |
Backlight: | LED | ||
High Light: | industrial embedded pc,industrial embedded computer |

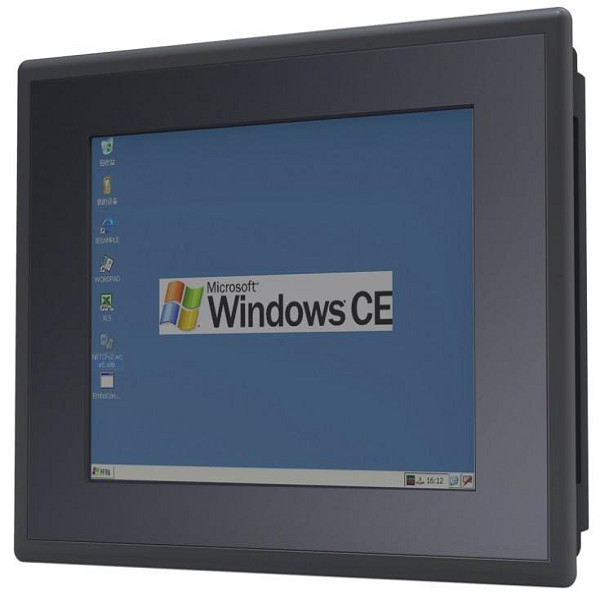

128MB NAND Flash 8.4 " embedded industrial PC with 640 * 480 resolution
1. Specification and performance parameter
Name |
STeWin8400 |
|
Size |
8.4-inch |
|
Resolution |
640X480 |
|
Brightness |
700 |
|
Contrast |
800:1 |
|
Backlight |
LED(adjustable) |
life:50000h |
Touch screen |
four-wire resistive,1000000/point |
|
Operating temperature |
-20℃~ +70℃(certified) |
|
Passed certification |
CE,FCC,ROHS and temperature |
|
|
System parameters |
|
Operating system |
Genuine edition WINDOWS CE5.0Core Chinese/English |
|
Basic frequency |
400MHz |
|
Processor |
SAMSUNG S3C2440-40 |
|
Internal memory |
64MB SDRAM |
|
Memory |
128MB NAND Flash |
|
Storage |
U-Disk ; SD card |
|
Software compilation |
ARMV4I |
|
method |
|
|
|
Interface parameter |
|
Serial |
RS232(2);RS485(1) |
|
Serial frequency |
Setted up through software |
|
SD card |
Up to 8GB (supporting for upgrading OS,boot logo,data storage) |
|
USB HOST |
USB Host1.1 Connect to U-Disk, USB mice, keyboards |
|
USB DVICE |
Connect to computer for USB1.1 device access over ActiveSync |
|
Network |
100M, network debugging, data transmission |
|
Audio |
Stereo headphone output, speaker |
|
Power |
9V~28V(12V |
130~400mA) |
Expansion function |
WIFI,GPS,GPRS,Bluetooth,Watchdog |
|
Universal digital IO |
Input(4),output(5) |
|
|
Dimensions |
|
Mounting type |
Embedded installation shell |
|
Safety performance of |
Waterproof, shakeproof |
|
IP65 |
|
|
Size of front panel |
248mmX192mm |
|
Size of mounting hole |
235mmX179mm |
2. Dimensions
Installation size of STeWin8400
Unit: mm
3. Appearance introduction
4. Interface Introduction
Power: DC 9V~28V
LAN: Connect to PC with crossover Ethernet cable
USB interface: U-Disk (up to 2G), USB mice, USB keyboards
SD card: Up to 8G
Serial: RS232 and RS485
ST-eWin8400 can be a displayable terminal control device and connected to subordinate computer (MCU) through RS232.
The advantage of separating display interface from control system is making the systems independent and upgrading conveniently.
Audio output port: Connect to Stereo headphone output or speaker
