14.1" TFT Mitsubishi lcd module Wide view angle AA141TC01 sunlight readable

Large Image : 14.1" TFT Mitsubishi lcd module Wide view angle AA141TC01 sunlight readable Get Best Price

Product Details:

Certification:	RoHS,UL
Model Number:	AA141TC01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Mitsubishi original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	14.1 Inch	Resolution:	1280x800
Brightness:	800 Cd/m2	Contrast Ratio:	700:1
View Angle(L/R/U/D):	80/80/80/60(Deg)	Interface:	LVDS
Operating Temperature:	-20~70℃	Storage Temperature:	-20-80℃
Highlight:	mitsubishi lcd display , mitsubishi lcd screen

Mitsubishi 14.1 inch tft lcd module AA141TC01

Specifications:

Module number	AA141TC01
Type	a-Si TFT LCD
Panel Size	14.1 inch
Brand	Mitsubishi
Resolution	1280x800
Width: Height	16:10
Pixel Pitch	0.237X 0.237(mm)
Active Area	303.36 X 189.6(mm)
View angle	R/L/U/D 80/80/80/60(Deg)
Mode	TN, normally white, transmissive
LCD Surface	Anti-glare, Hard coating (3H)
Number of Colors	262k/16.7M (6-bit/6-bit + Hi-FRC)
Electrical Interface	LVDS(1ch, 6/8-bit)
Brightness	800 cd/m2
Contrast ratio	700:1

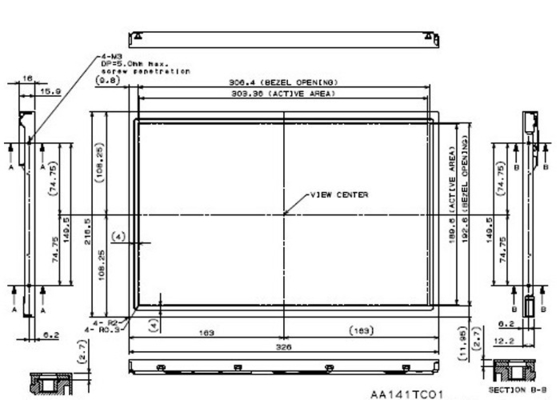

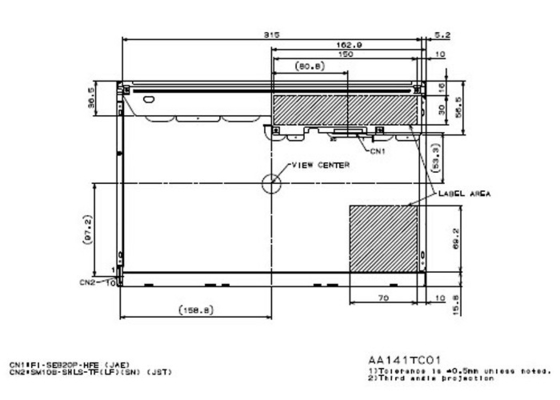

Outline dimension	326x216.5x16mm(Typ.)
Panel weight	1.13kgs(Typ.)
Backlight	WLED
Working lifetime	100K hrs(Min.)
Power Consumption	13.9W(Typ.)
Supply Voltage (V)	3.3V
Response time	16 (ms)
Operate temperature	-20-70 (°C)
Storage temperature	-20-80 (°C)
Application	Industrial grade use.

We also can provide total set such as lcd panel + touch panel + ad board + osd board + cables + Power Supply etc accessories for you, quality promised.

Product Features:

--Long lifetime more than 100K hours at least;

--Wide screen;

--Wide view angle;

--WLED backlight;

--High brightness & sunlight readable;

--6/8 bit optional;

--Anti-glare surface.

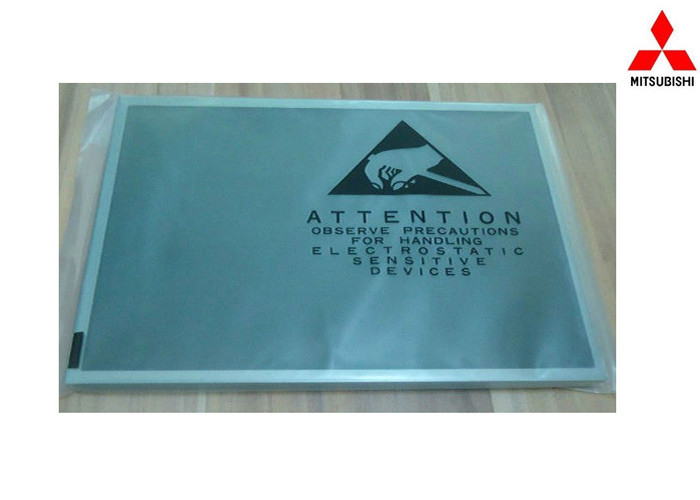

Product Show:

14.1" TFT Mitsubishi lcd module Wide view angle AA141TC01 sunlight readable 0
