Product Details:
Payment & Shipping Terms:
|
Size: | 7 Inch | Resolution: | 800*480 |
---|---|---|---|
Brightness: | 1500 Cd/m² | Contrast Ratio: | 600:1 |
Interface: | Parallel RGB (1 Ch, 6-bit), 50pin | Backlight: | LED |
Operating Temperature: | -30~70℃ | Storage Temperature: | -40~95℃ |
Weight: | 157g | ||
High Light: | tft lcd panel,tft display module |

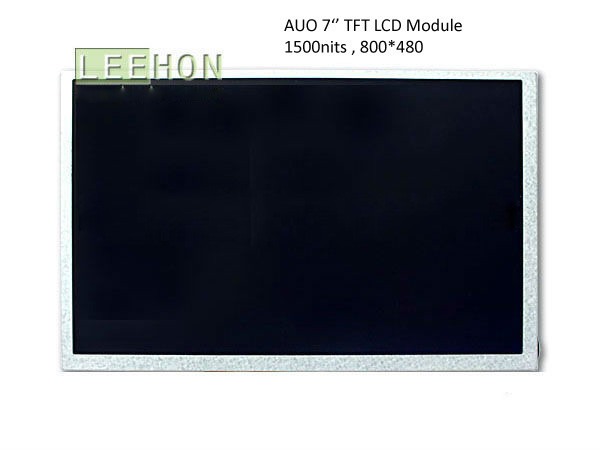

G070VTN02.0, AUO newest TFT lcd screen, sunlight readable with wide temperature
Quick Detail
Application
Specifications
Module number | G070VTN02.0 |
Resolution | 800x480 |
Pixel Pitch | 0.1905×0.1905 (mm) |
Active Area | 152.40×91.44 (V) (mm) |
View angle | R/L/U/D 65/65/50/60 (Deg) |
Mode | TN |
LCD Surface | Anti-glare,3H |
Number of Colors | 262K/16.2M |
Electrical Interface | Paralled RGB (1-ch,6 bit ) |
Brightness | 1500 cd/m2 |
Contrast ratio | 600:01:00 |
Outline dimension | 170.0×111.0 x 8(D) (mm) |
Gross weight | TBD(Typ.) |
Backlight | WLED |
LED Life (hrs.) | 10K(Min.) |
Power Consumption (W) | 1.80 (Typ.) |
Supply Voltage (V) | 3.3V |
Response time | 12/18 (ms) |
Operate temperature | -30 ~ 70 °C |
Storage temperature | -40-95 (°C) |
Operate humidity | 5-95 (%RH) |
Storage humidity | 5-95 (%RH) |
Our Advantage
>>Quality ensurance
100% AUO original and brand new!
warranty :12 months !
You can enjoy the real panels directly from AUO factory;
>>Packing ensurance
all the products are in original package from original factory directly, and all the packages have labels andserial number!
>>Delivery ensurance
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
we have many years good experience on display solution.
any question, we will reply you within 12 hours.
Tel: +86-755-29858730~305
