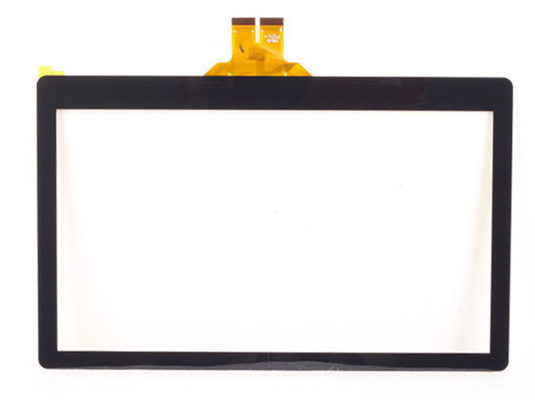

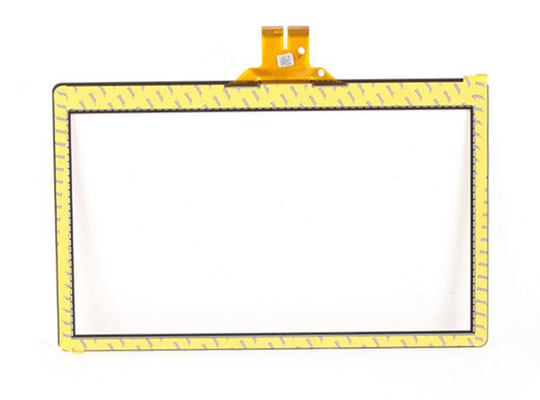

19 Inch LCD Touch Screen PG Structure , 10 capacitive multi-touch screen COB Connection

small.img.alt small.img.alt

Large Image :  19 Inch LCD Touch Screen PG Structure , 10 capacitive multi-touch screen COB Connection Get Best Price

Product Details:
Place of Origin: China
Brand Name: SCT Touch
Certification: ISO9001, ISO14001, TS16949, CE, FCC, ROHS
Model Number: SCT-GA9-005483A
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: US$30-100/pc
Packaging Details: 1pc/blister tray, 10pcs/carton, 60*45*30cm
Delivery Time: 7-15 working days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1.5KKpcs/month
Detailed Product Description
Outline Dimension: 407.32 X 332.06mm Active Area: 377.32 X 302.06mm
Structure: GG Connection: COB + PCB
Touch: 10 Points IC Project: GT9115+GT9115+GTM905
High Light:

surface capacitive touch screen


multi touch panel


 19 Inch LCD Touch Screen PG Structure , 10 capacitive multi-touch screen COB Connection



Main Material:


IC: from Taiwan, America etc.

Glass: from Japan, America, Germany etc.

Film: from Japan, Korea etc.



Touch PanelSpecification:


  Model No.


  Structure    GG
  Size     19 Inch
  Multi Touch    10 Points

  Active Area

   377.32 x 302.06mm

  Outline Dimension

   407.32 x 332.06mm

  Cover Glass    1.1mm
  ITO Glass    1.1mm

  Surface Hardness


  Connection     COB + PCB
   IC Project    GT9115+GT9115+GTM905



  Operating temperature

   -20℃~70℃, ≤90%RH

  Storage temperature

   -30℃~80℃, ≤90%RH


Main Structure:


  • GG structure

GG structure is cover glass plus sensor glass technology solution, with high transmittance, good effect of protecting scratch and also harder than PG structure.

  • PG structure

PG structure uses one PET film plus sensor glass solution. Mature process technology greatly reduces the failure rate and cost. It has the same level weight with OGS structure.

  • OGS structure

OGS is one glass solution, directly form ITO conducting film in the protective glass and use the sensor technology. It has the advantage of the simple structure, light, thin and good transmitting etc.





  • Car navigation (GPS)
  • Education electronics
  • Household appliance
  • Bank system
  • Smart home system
  • Industrial equipment
  • Tablet PC (MID)
  • Smart phone
  • Ultra book
  • All In One (AIO)


Environment Condition:




   working environment

   -20℃~70℃, ≤90%RH

   storage environment

   -30℃~80℃, ≤90%RH


Electric Characteristics:




  working voltage


  insulation resistance

   >20M, DC25V

  working current


  response time




Mechanical Characteristics:




   finger contact area





Reliability Condition:




  high temperature and humidity

   60℃, 90%RH, 96H

  high temperature storage


  thermal shock

   -20℃(0.5H)~+70℃(0.5H) by 100 cycles



Assembly Precautions:


  1. Do not exert extra force to touch panel.
  2. Since touch panel is transparent and clear, make sure to wear fingerstall or glove before touching. Be careful of your hands and other parts from injury at handling by glass corners.
  3. When handling, make sure to hold the touch panel borders not center parts to avoid dirt to touch panel. Do not lift touch panel by tail to avoid tail loosen.
  4. When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
  5. Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert extra force to tail tip and cause tail loosen.
  6. Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
  7. If there is air groove on touch panel, when design product structure, make sure no liquid and powder near the air groove.
  8. In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling gap between touch panel and case.



Why Choose Us?


■ Research & Development


SENCENT has a dedicated team of experienced R&D specialists and engineers who produce creative solutions, which meet the growing requirements of the modern world. We own state-of-the-art manufacturing facilities and advanced production methods ensure consistent quality as well as high efficiency rate.



■ Wide product Range


SUNCENT offers products for a wide variety of applications.
TOUCH PANEL widely applied to Tablet PC, AIO Computer, Ultrabook, GPS Navigation, Car infotainment, Smart phone, Mobile Terminal, POS machine, Electric learning products, Security system, Home appliance, Medical device, Metering device etc.



■ Powerful Supplier


Customers’ satisfaction is our company’s dignity forever, we will make great effort to develop new and top-quality products, meet your special requirements for the research and development of the products and provide you perfect service system consisting of pro-sale, on-sale and after-sale service. Suncent always target to do the maximum efforts to reach win-win with our customers.



■ Quality & Management


SENCENT has passed ISO9001:2008 quality management system certificate and ISO14001:2004 environment system certificate. Together with the strong financial background, outstanding research teams, it makes SUNCENT’s technical level to become the industry’s leading position. Mature technology and strict quality management system are our basis.



■ Nice Warrenty


SUNCENT provides not only warranty for each product but also post-warranty servicing, consultations, and maintenance. Furthermore, SUNCENT offers production of tailor-made equipment to suit specific customer requirements and provide professional solutions for ODM/OEM partners.



■ Service Guarantee


Based on our powerful factory, we ensure every order will be produced on time, customers can understand their order status including producing.
