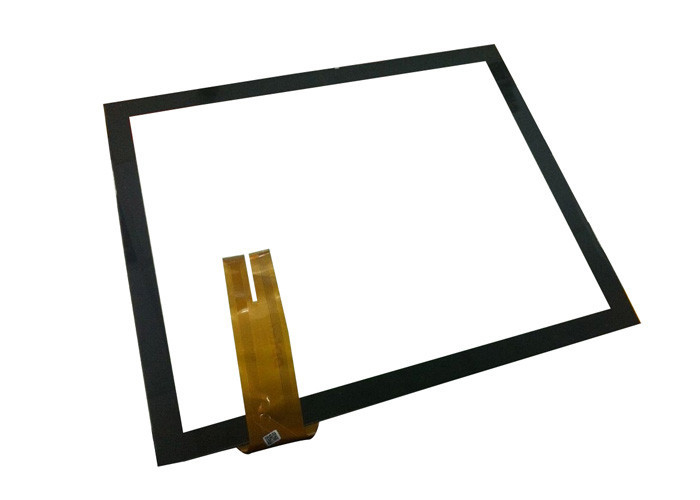

19 Inch Multi - point LCD Touch Panel with USB , Capacitive touch screen panel
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size:: | 19 Inch | Active Area:: | 377.32mm*302. 06mm |
|---|---|---|---|
| Overall Dimention:: | 421.00mm*346.00mm | Thickness:: | 1.8mm |
| Surface Hardness:: | 3H | Operate Temperature:: | -20~60 |
| Storage Temperature:: | -30~80 | Sample: | Available In 1 Week |
| High Light: | lcd touch screen display,touch screen lcd module |
||
19 inch Capacitive multi-point LCD Touch Panel , with USB interface controller SIS9257+F321
Quick Detail:
ITO glass +PET + FPC
Surface Hardness: 3H
IC: SIS9257+F321
Multi Touch: 10 Points
Interface: USB
Working Voltage: 3.0-3.6V
Specification:
Model No. | LHDA9-N4715A |
Size | 19.0 inch |
Active Area | 377.32mm*302. 06mm |
Outline Dimension | 421.00mm*346.00mm |
Structure | Cover Glass + Sensor Glass |
FPC | Pitch=0.5 mm |
Surface Hardness | 3H |
Connection | COB |
IC Model | SIS9257+F321 |
Multi Touch | 10 Points |
| Interface | USB |
| Working Voltage | 3.0-3.6V |
| Operating System | Android / Linux / WINDOWS |
Transmittance | ≥87% |
Operating temperature | -20℃～60℃, ≤90%RH |
Storage temperature | -40℃～80℃, ≤90%RH |
Application:
Used as the input devices for general electric appliances and OA equipment.This specification applies
to consumer electronics the capacitive touch screen (such as Turboboost, AIO, etc.).
Environment Condition:
Item | Value |
working environment | -20℃～60℃, ≤90%RH |
storage environment | -30℃～80℃, ≤90%RH |
Mechanical Characteristics:
Item | Value |
finger contact area | Φ≥5mm |
transmittance | ≥87% |
Electric Characteristics:
Item | Value |
working voltage | DC3.0~3.6V |
insulation resistance | ＞20M, DC25V |
working current | 12mA~14.5mA |
response time | ≤16ms |
Reliability Condition:
Item | condition |
high temperature and humidity | 80℃, 90%RH, 240H |
high temperature storage | 80℃/240H |
thermal shock | -30℃(0.5H)~+80℃(0.5H) by 100 cycles |
Picture show:
