320 * 240 Graphic LCD Display with parallel port interface and white LED backlight
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Graphic Lcd Display | Resolution: | 320*240 |
|---|---|---|---|
| Controller IC:: | RA8835 Or Equivalent | Drive Method:: | 1/240 Duty; 1/13 Bias |
| Active Area:: | 76.78*57.58 Mm | Interface: | Parallel Port |
| Polarizer Type:: | Transflective,positive | Operating Temperature: | –20ºC TO +70ºC |
| Display Type: | FSTN | ||
| High Light: | alphanumeric lcd display,serial lcd display |
||

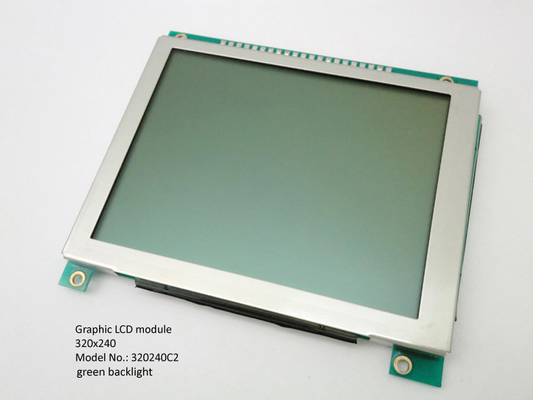

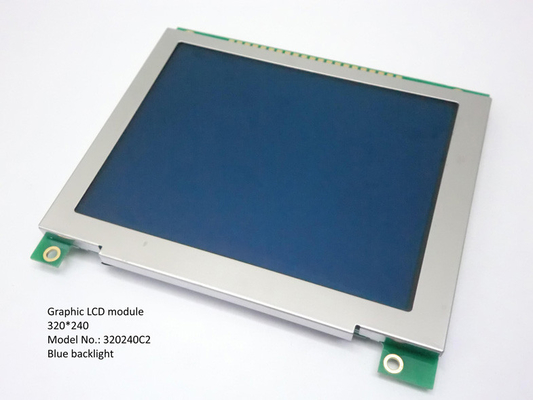

320*240 Graphic LCD Display FSTN type COB
Specification:
| product name.: | graphic lcd display |
| Model NO.: | 320240C2 |
| Resolution | 320*240 |
| LCD Outline Size: | 94*83.5*4.6 mm |
| View Area: | 80.5*61.1 mm |
| Active Area: | 76.78*57.58 mm |
| Display Type: | FSTN |
| Polarizer Type: | Transflective,positive |
| View Direction: | 6:0 O'Clock |
| VDD | +5.0V |
| Drive Method: | 1/240 Duty; 1/13 Bias |
| Controller IC: | RA8835 or equivalent |
| backlight type | white,LED |
| interface: | parallel port |
| Backlight Supply Voltage: | +5.0V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Welcome to customize product!
we have a professional R&D team working for you !
Our factory is founded in Year 2009, located in Nanjin China. Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
320240C2 Drawing as below:
