4.3 inch STONE Embedded Industrial PC with high resolution USB interface

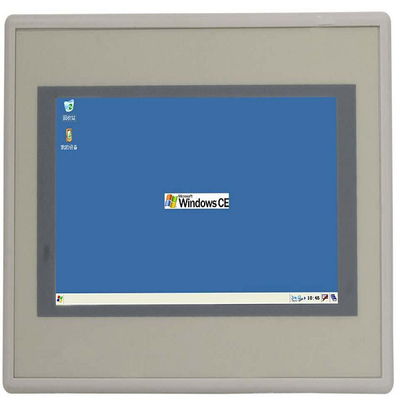

Large Image : 4.3 inch STONE Embedded Industrial PC with high resolution USB interface Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	STONE
Certification:	CE, FCC RoHS, ISO9001:2008
Model Number:	STeWin4300

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Packaging Details:	Box/Carton
Payment Terms:	T/T, Western Union, Paypal

Contact Now

Detailed Product Description

Size:	4.3 Inch	Resolution:	480*272
Brightness:	300	Contrast:	400:1
Backlight:	LED
High Light:	industrial tablet pc , industrial embedded pc

4.3 inch STONE Embedded Industrial PC with high resolution USB interface

1. Specification and performance parameter

Name	STeWin4300
Size	4.3-inch(95.04×53.86)
Resolution	480X272
Brightness	300
Contrast	400:1
Backlight	LED(adjustable) life:30000h
Touch screen	four-wire resistive,1000000/point
Operating temperature	-20℃~ +70℃(certified)
Passed certification	CE,FCC,ROHS and temperature
	System parameters
Operating system	Genuine edition WINDOWS CE5.0Core Chinese/English
Basic frequency	400MHz
Processor	SAMSUNG S3C2440-40
Internal memory	64MB SDRAM
Memory	128MB NAND Flash
Storage	U-Disk ; SD card
Software compilation	ARMV4I
method
	Interface parameter
Serial	RS232(2);RS485(1)
Serial frequency	Setted up through software
SD card	Up to 8GB (supporting for upgrading OS,boot logo,data storage)
USB HOST	USB Host1.1 Connect to U-Disk, USB mice, keyboards
USB DVICE	Connect to computer for USB1.1 device access over ActiveSync
Network	100M, network debugging, data transmission
Audio	Stereo headphone output, speaker
Power	9V~28V(12V 80~180mA)
Expansion function	WIFI,GPS,GPRS,Bluetooth,Watchdog
Universal digital IO	Input(8),output(8)
	Dimensions
Mounting type	Embedded installation shell
Safety performance of	Waterproof, shakeproof
IP65
Size of front panel	136mm ×104 mm
Size of mounting hole	126mm ×95mm

2. Dimensions

Installation size of STeWinA400

Unit: mm

4.3 inch STONE Embedded Industrial PC with high resolution USB interface 0

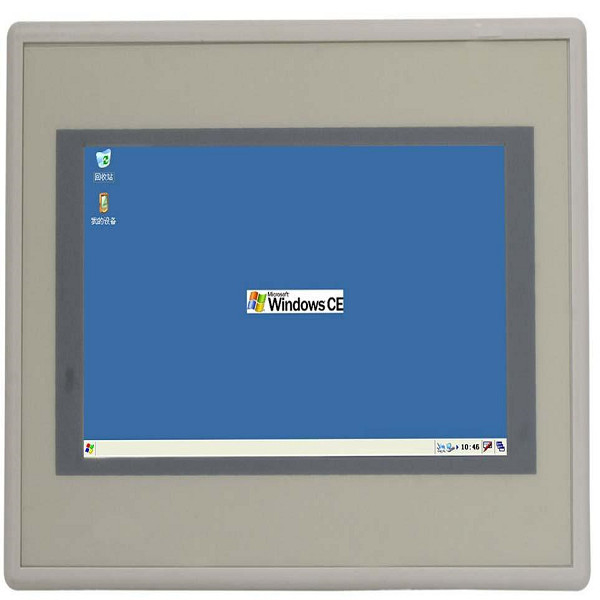

3. Appearance introduction

4. Interface Introduction

4.3 inch STONE Embedded Industrial PC with high resolution USB interface 1

Power: DC 9V~28V
LAN: Connect to PC with crossover Ethernet cable
USB interface: U-Disk (up to 2G), USB mice, USB keyboards
SD card: Up to 8G
Serial:RS232 and RS485

ST-eWin4300 can be a displayable terminal control device and connected to subordinate computer (MCU) through RS232.

The advantage of separating display interface from control system is making the systems independent and upgrading conveniently.
Audio output port: Connect to Stereo headphone output or speaker
