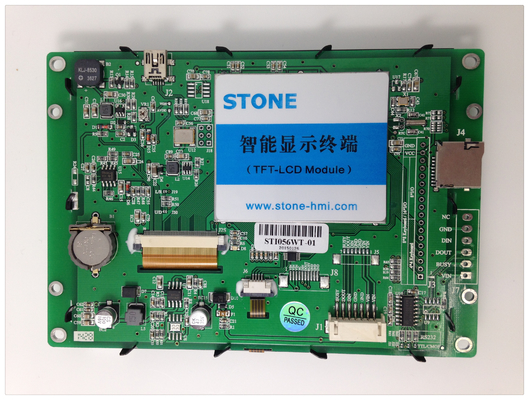

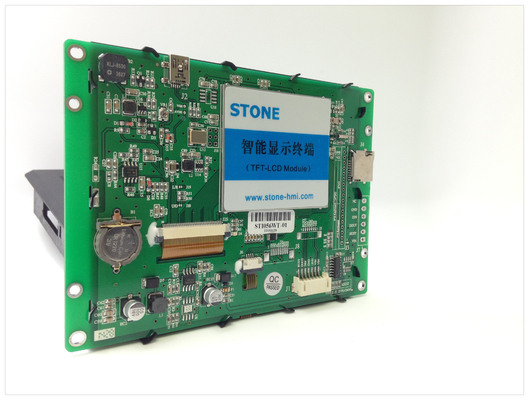

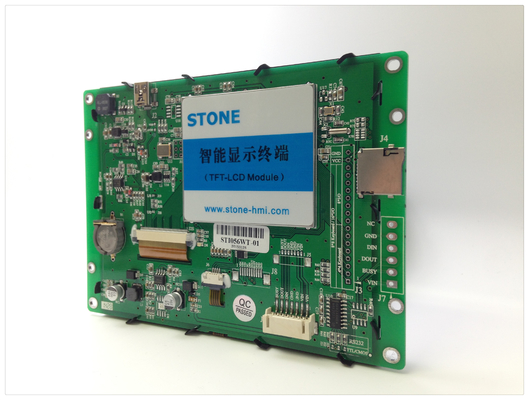

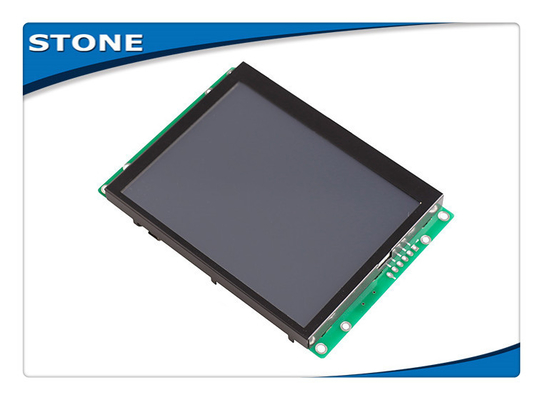

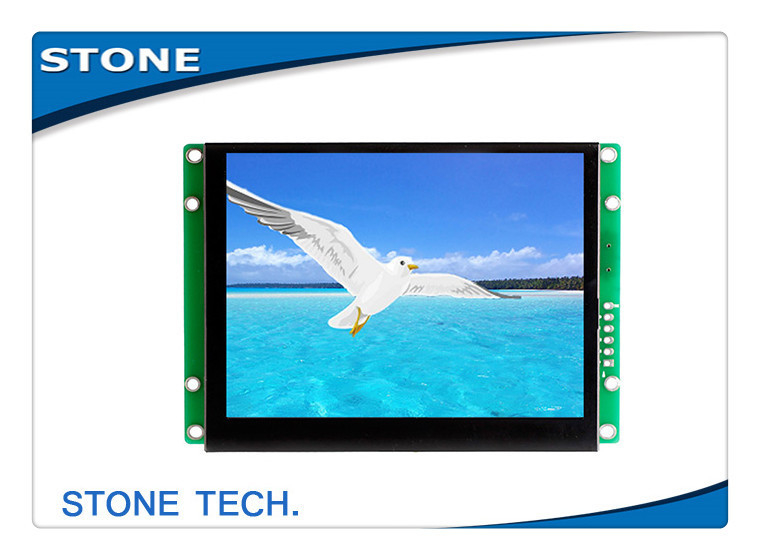

5.6" TFT LCD module with driver board monitor touch screen
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 5.6" | Color: | 65 K |
|---|---|---|---|
| Resolution: | 640*480 | Display Scale: | 4:3 |
| Backlight: | LED | CPU: | Cortex |
| High Light: | touch screen module,tft color lcd display |
||
5.6" TFT LCD module with driver board monitor touch screen
Easy!!! Powerful!!! Saving!!!
The Intelligent TFT-LCD Module can be controlled by Any MCU through our Powerful & Easy Command Set (HEX Code), So many of engineer in more than 50 countries enjoy our Product for new project.
1. Design a group of Beautiful "Graphical User Interface" that you need.
2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly, plug and play.
3. Write a simple program for the MCU to control the TFT-LCD Module via powerful "Command Sets" (HEX Code).
That's all. Saving much development Time and Cost for Engineer.
For example: Image Command 0x70.
Send: “0xAA+0x70+ Pic_ID + 0xCC 0x33 0xC3 0x3C”
|
|
Introduction |
Example |
Note |
|
AA |
Frame head |
|
Frame head of one Command |
|
0x70 |
Command Code |
|
|
|
Pic_ID |
Sequence number of the current picture |
0x00 0x01 |
Show Picture - 01 |
|
CC 33 C3 3C |
Frame end |
|
Frame end of one Command |
We would offer a simple Toolbox to help you to work with TFT-LCD Module on PC.
1. Assistant function: show how to send the Command Set to control the TFT display.
2. Download function: Download the images and configuration files into TFT Module
3. Touch Control function: Define many buttons on the User Interface, then create a touch configuration file.
4. Font software: Create the font configuration file.
Widely Used In Many Various Industrial Field in more than 50 Countries.
Model: STI056WT-01 (Industrial Type)
|
Physical Parameter |
|
|
Model |
STI056WT-01 |
|
Size (Inch) |
5.6" |
|
Resolution |
640×RGB×480 |
|
Pixel Spacing |
0.1905 mm × 0.0635 mm(H×V) |
|
Color |
65536 colors (16 bit) |
|
Viewing Area |
112.9 mm × 84.67 mm |
|
Overall Dimension |
143.5 mm × 101.4 mm × 14.3 mm(N)/ 15.9 mm(T) |
|
Net Weight |
240 g(N)/ 275 g(T) |
|
TFT Panel |
A Level Industry Panel |
|
Touch Screen |
Industry Level 4 wire resistance Or without touch screen is optional. |
|
Backlight Parameter |
|
|
Backlight Type |
LED |
|
Brightness |
280 cd/m2 (Brightness can be adjustable in 100 levels.) |
|
Contrast |
500:1 |
|
Backlight life |
30,000 hours |
|
Viewing Angle |
70°/ 70°/ 50°/ 70° (L/R/U/D) |
|
Working Temperature |
-20°C ~ +70°C |
|
Working Humidity |
55°C, 85% |
|
Storage Temperature |
-30°C ~ +85°C |
|
Screen Mode |
Digital |
|
Performance Parameter |
|
|
CPU |
CortexM3 STM32F103 |
|
LCD Controller |
CPLD EPM240 |
|
Refresh Rate |
60Hz |
|
Picture Switching Speed |
30 ms/picture (33 pictures/s) |
|
Flash Memory |
Standard 256m, Extension 2GB |
|
Memory Amount for picture |
304 images |
|
Interface |
RS232/ RS485/ TTL UART Interface |
|
Pictures downloading |
MiniUSB2.0 (12Mbps) & SD card |
|
Voltage Range |
DC5.0V ~ 20V (typical value: 12V) |
|
Power |
2.2 W |
|
Test Report |
|
|
MTBF |
4,250,000H |
|
Working Temperature |
-20°C ~ +70°C |
|
Air Humidity |
60°C, 90% |
|
Continuous Vibration Testing |
10-55Hz, 1.5mm, 10G |
|
Impact Acceleration Testing |
6ms, 100G |
|
ESD Testing |
10KV |
|
Radiation Reliability Testing |
44W |
|
Main Size of TFT LCD Module |
|
|
Size |
Resolution |
|
3.5" |
320*240 |
|
4.3" |
480*272 |
|
5" |
640*480; 480*272; 800*480 |
|
5.6" |
640*480 |
|
5.7" |
640*480 |
|
7" |
800*480; 800*600; 1024*600 |
|
8" |
800*600; 800*480; 1024*768 |
|
8.4" |
800*600 |
|
10.1" |
1024*600 |
|
10.4" |
800*600 |
|
12.1" |
800*600 |
|
15.1" |
1024*768 |
|
With CPU & Driving device |
|
Controlled by Any MCU |
|
Display Picture/ Text/ Curve |
|
65536 colour TFT display |
|
Wide working voltage range |
|
Widely used in various Industrial Field |
|
With powerful software & command set program |
|
Easy to use! Powerful function! Saving Cost and Time! |
