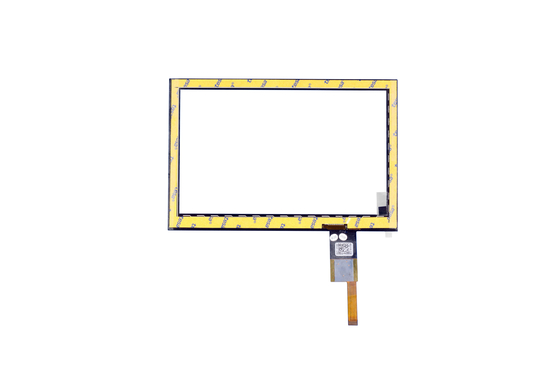

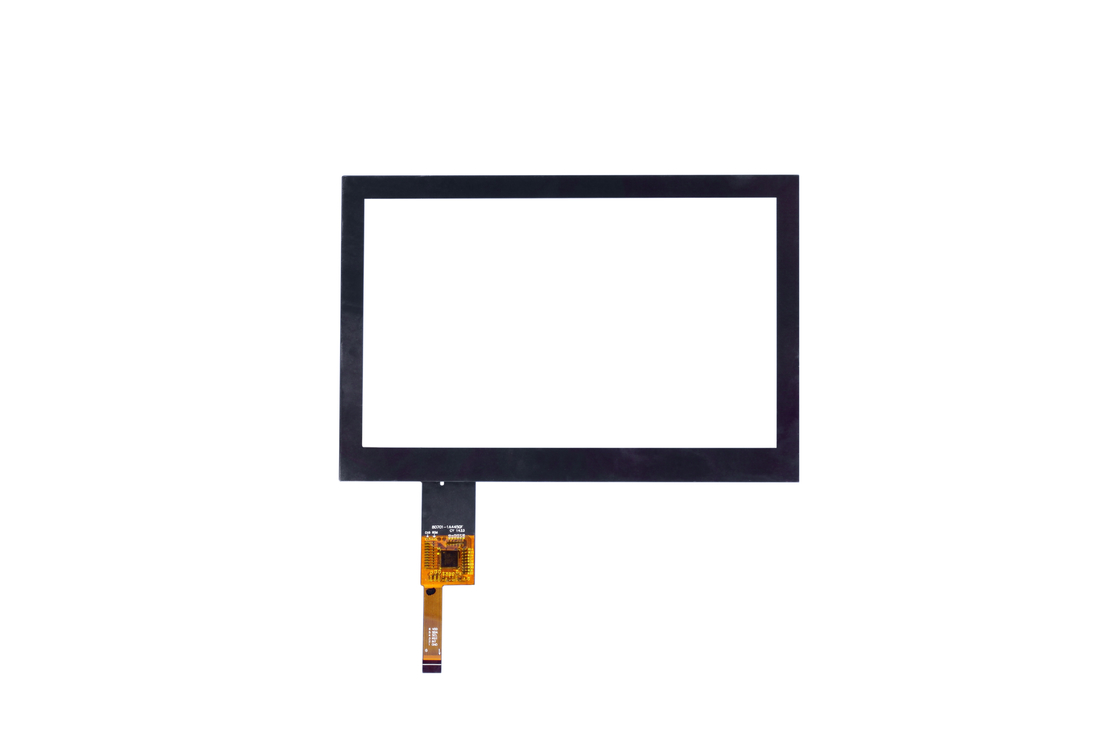

7 inch LCD Touch Panel Controller COF Connection ISO9001 / ISO14001

7 inch LCD Touch Panel Controller COF Connection ISO9001 / ISO14001

Quick Detail:

1. Cover Glass + ITO Glass +OCA +Adhesive + FPC
2. Surface Hardness: 6H
3. Sensor  Process: Printing
4. IC: GT911 (COF)
5. Total Thickness: 1.7±0.1 mm
6. Transmittance: ≥87%

Specification:

Assembly Precautions:

1. Do not exert extra force to touch panel.
2. Since touch panel is transparent and clear,make sure to wear fingerstall or glove before touching.Be careful of your hands and other parts from injury at handling by glass corners.
3. When handling,make sure to hold the touch panel borders not center parts to avoid dirt to touch panel. Do not lift touch panel by tail to avoid tail loosen.
4. When installing and assembling, do not lift tail with heavy force to avoid tail peeling off touch panel.
5. Do not stick or mount other parts on the tail, such as additional film or metal plate. As it will exert extra force to tail tip and cause tail loosen.
6. Please don't pull FPC with force from side to side, because the FPC tension will make FPC burst.
7. If there is air groove on touch panel, when design product structure, make sure no liquid and powder near the air groove.
8. In order to avoid heavy stress to touch panel surface, make sure to keep 0.2mm-0.5mm assembling gap between touch panel and case.

About Us

Main Structure:

• GG structure

GG structure uses cover glass plus sensor glass solution, harder than PG structure, high transmittance and good effect for anti-scratch.


•  PG structure

PG structure uses one PET film plus sensor glass solution. Mature process technology greatly reduces the failure rate and cost. It has the same level weight with OGS structure.


•  OGS structure

OGS uses one glass solution, directly form ITO conducting film in the protective glass and use the sensor technology. It has the advantage of the simple structure, light, thin and good transmitting etc.

Application:

• Smart phone
• Car navigation (GPS)
• Tablet PC (MID)
• Education electronics
• Ultra book
• All In One (AIO)
• Household appliance
• Bank system
• Smart home system
• Industrial equipment

Environment Condition:

Mechanical Characteristics:

Electric Characteristics:

Reliability Condition:

Why Choose Us?

■ Research & Development

SENCENT has a dedicated team of experienced R&D specialists and engineers who produce creative solutions, which meet the growing requirements of the modern world. We own state-of-the-art manufacturing facilities and advanced production methods ensure consistent quality as well as high efficiency rate.

■ Wide product Range

SUNCENT offers products for a wide variety of applications.
TOUCH PANEL widely applied to Tablet PC, AIO Computer, Ultrabook, GPS Navigation, Car infotainment, Smart phone, Mobile Terminal, POS machine, Electric learning products, Security system, Home appliance, Medical device, Metering device etc.

■ Powerful Supplier

Customers’ satisfaction is our company’s dignity forever, we will make great effort to develop new and top-quality products, meet your special requirements for the research and development of the products and provide you perfect service system consisting of pro-sale, on-sale and after-sale service. Suncent always target to do the maximum efforts to reach win-win with our customers.

■ Quality & Management

SENCENT has passed ISO9001:2008 quality management system certificate and ISO14001:2004 environment system certificate. Together with the strong financial background, outstanding research teams, it makes SUNCENT’s technical level to become the industry’s leading position. Mature technology and strict quality management system are our basis.

■ Nice Warrenty

SUNCENT provides not only warranty for each product but also post-warranty servicing, consultations, and maintenance. Furthermore, SUNCENT offers production of tailor-made equipment to suit specific customer requirements and provide professional solutions for ODM/OEM partners.

■ Service Guarantee

Based on our powerful factory, we ensure every order will be produced on time, customers can understand their order status including producing.
