800 x 480 6.5 inch Innolux lcd panel screen with wide temperature for car AT065TN14

large.img.alt
small.img.alt small.img.alt

Large Image :  800 x 480 6.5 inch Innolux lcd panel screen with wide temperature for car AT065TN14 Get Best Price

Product Details:
Place of Origin: Taiwan
Brand Name: Innolux
Certification: RoHS
Model Number: AT065TN14
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: Innolux original package
Delivery Time: within 1 week
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000pcs per week
Contact Now
Detailed Product Description
Size: 6.5 Inch Resolution: 800x480
Brightness: 400 Cd/m2 Contrast Ratio: 500:1
View Angle(L/R/U/D): 70/70/50/70(Deg) Interface: Parallel RGB
Operating Temperature: -30~85℃ Storage Temperature: -30-85℃
High Light:

innolux lcd display

,

innolux lcd screen

Car lcd 800x480 Innolux 6.5 inch lcd panel AT065TN14 Specifications:

Module number AT065TN14
Type a-Si TFT LCD
Size 6.5 inch
Brand Innolux
Resolution 800 × (RGB) × 480
Width:Height 17:9
Pixel pitch 0.17925(W) × 0.1598 (H) mm
Active Area 146.2(W) × 78.7(H) mm
View angle R/L/U/D 70/70/50/70(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface Parallel RGB
Brightness 400(cd/m2)
Contrast ratio 500:1
Outline dimension 155.2(W) × 89.4(H) × 5.5(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -30-85(°C)
Storage temperature -30-85(°C)
Display Colors 262k/16.7M
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)
Application



Special for car use.






We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.









Product Features:

-- 360 Deg. rotation view supported;

-- Wide screen;

-- Wide temperature;

--  WLED backlight;

-- 6/8 bit optional;

-- Anti-glossy surface.

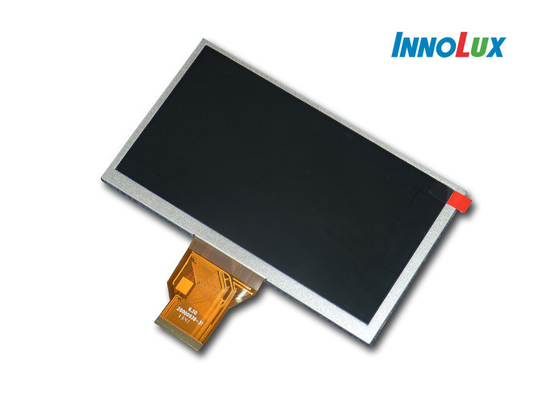

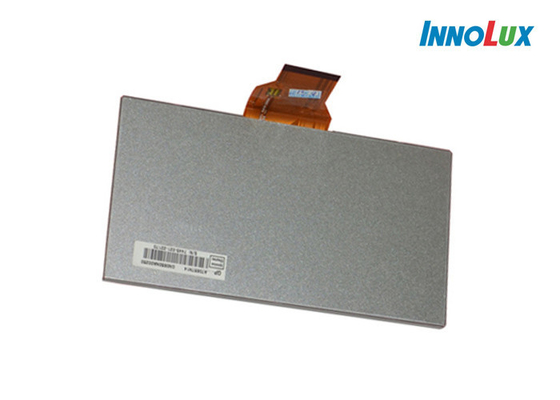

Product Show:
800 x 480 6.5 inch Innolux lcd panel screen with wide temperature for car AT065TN14 0



800 x 480 6.5 inch Innolux lcd panel screen with wide temperature for car AT065TN14 1








Applications:
800 x 480 6.5 inch Innolux lcd panel screen with wide temperature for car AT065TN14 2
