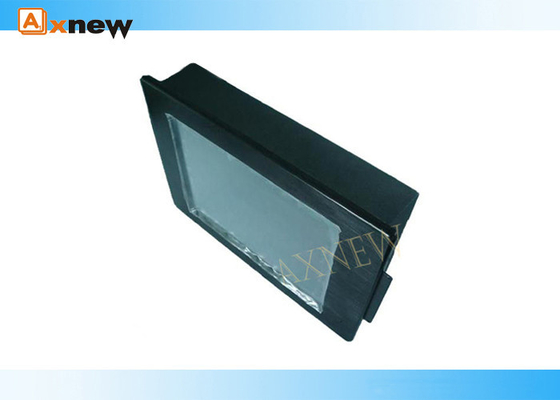

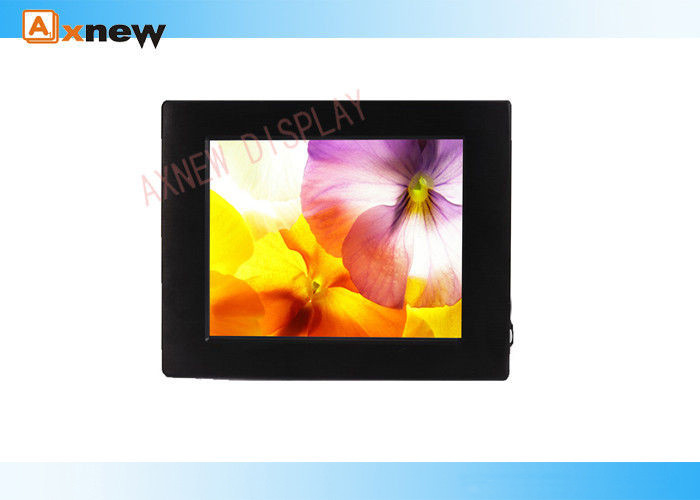

800x600 Industrial Touch Panel PC
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Screen Size: | 10.4 Inch | Pixel: | 800X600 |
|---|---|---|---|
| Contrast Ratio: | 500:1 | Brightness: | 400cd/m^2 |
| Viewing Angles: | 140(H)/140(V) | Monitor Type: | 5 Wire Resistive Touch Computer |
| Application: | Advertising|industrial|Kiosk|POS | Feature: | HD|slim|high Definition|Wide Voltage |
| High Light: | industrial touch monitor,industrial touch pc |
||
10.4 Inch 800x600 PS485 9v ~30v Wide Voltage Rugged Panel Mount Industrial Touch Panel PC Axnew For Built-in
Description:
1. New and A grade lcd panel with other components on stable supply
2. Resistive touchscreen makes the touch sense perfectly
3. High specs of motherboard with high operating speed, you can extend Various ports of external equipment
4. Professional and industrial hardware and parts to guarantee, its working normally in rough environment
5. Mounting holes on base bottom for tabletop security; Removable base and VESA mounting option
6. 10’’ Industrial Touch pc hardware for Automation, Gaming, Hotel , Restaurant terminals, KIOSK etc.
Quick Details:
Model: AXD-10PPC-A1
Screen Size:10.4’’
Screen format: 4:3
Display Resolution(pixel):800X600
Contrast Ratio:500:1
Brightness:400cd/m^2
Storage temperature : -40℃~85℃
Touch Type: 5 Wire Industrial Resistive Touch screen
Power Input: AC100~240 V/DC 12V
Product status: In production
Features and Advantages
1. Fanless Design; Ultra Slim and Compact Mechanical Design
2. High Luminance LCD Panel
3. D2550 1.8GHz Processor
4. 10.4 " XGA 800 x 600 Resolution Color TFT LCD Display
5. Fully IP65 Waterproof front bezel with Stainless Steel Chassis
6. Supports Wide Range 9~30 v
7. Intel® SATA SSD Compatible
Specifications datasheet
|
Panel PC Technical Parameter |
|
|
Model Number |
AXD-10PPC-A1 |
|
10.4’’ Touch panel pc |
|
|
Case/Bezel Color |
Black |
|
TFT Type |
Industrial LCD with LED backlight |
|
Aspect ratio |
4:3 |
|
Touch Panel |
Industrial 5 wire Resistive Flat Screen |
|
Touch response time |
10ms (typical) |
|
Optimal (native) Resolution |
800 x 600/1024x768 |
|
LCD panel Pixel pitch |
0.264 x 0.264 mm |
|
LCD panel Colors |
16.2 million |
|
LCD panel Brightness |
400 cd/m2 |
|
LCD panel Response Time |
8ms |
|
Contrast Ratio |
500:1 |
|
Viewing Angle ( Wide ) |
|
|
Horizontal (left/right) |
±80° or 160° total |
|
Vertical (up/down) |
80°(up), 80°(down) or 140° total |
|
CPU |
Soldered onboard Intel® Atom™ D2550 1.8GHz |
|
storage |
1 x SSD 16G |
|

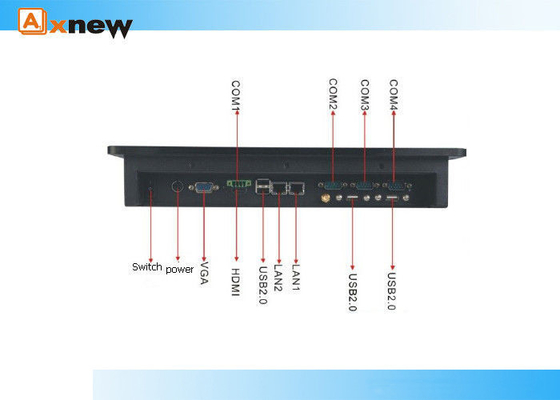

Serial Ports |
4 x COM ports (1x RS-232/422/485 by-pin connector) |
|
USB Ports |
2 x USB external ports ; 6 six USB internal ports |
|
LAN |
1 x LAN RJ-45 connector |
|
DC Power In |
1 x 4-pin connector |
|
Video Port |
1 x DVI-D female connector for Digital Video Output |
|
Watch Dog Timer |
1~255 levels reset |
|
Internal Sockets & Connectors |
1 x Compact Flash socket (reserved for OEM project) |
|
Power Specification |
DC 12V; 9V~30V options |
|
Working Environment |
|
|
Temperature |
Operating: -30°C to 80°C ;Storage -40°C to 85°C |
|
Operating Humidity |
5 ~ 90% RH @40°C (non-condensing |
|
Vibration |
5 ~ 500Hz, 3Grms Random (with CF/SSD) |
|
Shock |
Operating 16G, 11ms & Non-operating 4G, 20ms |
|
Dimensions |
|
|
Mounting Type |
Embedded Installation |
|
Mechanical dimensions |
344 x 58 x 263 mm |
|
Weight (Net) |
5.5 kgs/ piece |
|
Drawings |
Please contact us for details |
Packaging & Delivery
|
Packing details |
1x 10.4 inch Industrial Touch Panel PC ; |
|
Delivery terms |
3-5 working days for stock products after receiving payments; 15 working days for order production |
