9.7 Inch 1024 * 768 LVDS Tianma digital camera lcd screen with WLED backlight

large.img.alt
small.img.alt small.img.alt

Large Image :  9.7 Inch 1024 * 768 LVDS Tianma digital camera lcd screen with WLED backlight Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: TIANMA
Certification: RoHS
Model Number: TM097TDH02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD20-100 / pc
Packaging Details: Tianma original package
Delivery Time: 1-4 weeks
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 10000pcs per week
Detailed Product Description
Size: 9.7 Inch Resolution: 1024x768
Brightness: 350 Cd/m2 Contrast Ratio: 500:1
View Angle(L/R/U/D): 60/70/70/70 Interface: LVDS 6 Bit
Operating Temperature: -20~70℃ Storage Temperature: -30~80℃
High Light:

tianma lcd display

,

lcd resistive touch screen

9.7 inch 1024*768 Tianma LCD module , TM097TDH02 with WLED backlight





Quick Detail



- 4:3 ratio

- LVDS interface

- Wide operating temperature range (-20℃ to 70℃)







Applications



- General Applications





Specifications





Module number

TM097TDH02

Resolution

1024 (RGB) x 768

Pixel Pitch

0.192 (H) x 0.192 (V) (mm)

Active Area

196.61 (W) x 147.46 (H) (mm)

View angle

R/L/U/D 60/70/70/70(Deg)

Mode

TN

LCD Surface

Anti-Glare, 3H

Number of Colors

262K

Electrical Interface

LVDS 6-bit

Brightness

350cd/m2

Contrast ratio

500:1

Outline dimension

210.20 (W) x166.30(H)x3.5(D)(mm)

Backlight

WLED

Supply Voltage (V)

3.3V

Response time

20(ms)(Typ.)

Operate temperature

-20-70 (°C)

Storage temperature

-30-80 (°C)

Package

Tianma original package;
60pcs/carton;
Carton size: 565 x 483 x 312;
Weight: 19.27kg(Typ.).









Competitive Advantage

*Quality ensurance



*Delivery ensurance



*Original  factory technology support

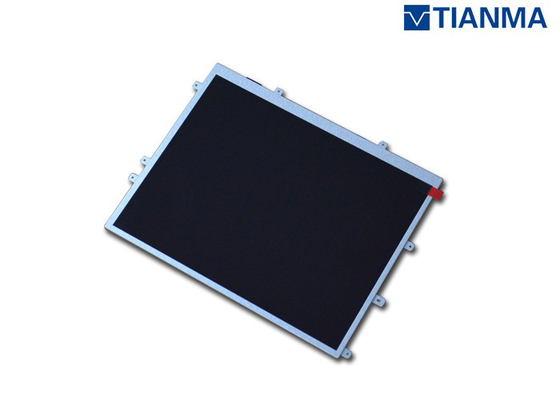

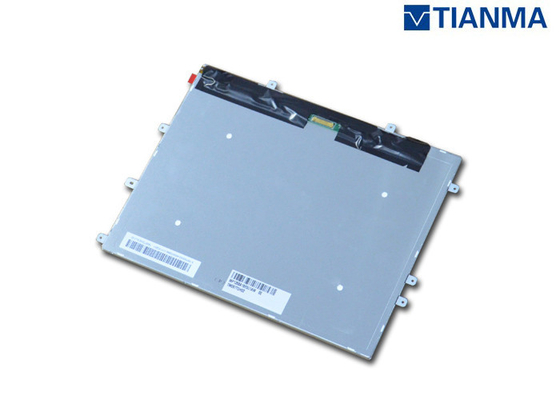

Picture Show:



9.7 Inch 1024 * 768 LVDS Tianma digital camera lcd screen with WLED backlight 09.7 Inch 1024 * 768 LVDS Tianma digital camera lcd screen with WLED backlight 1
