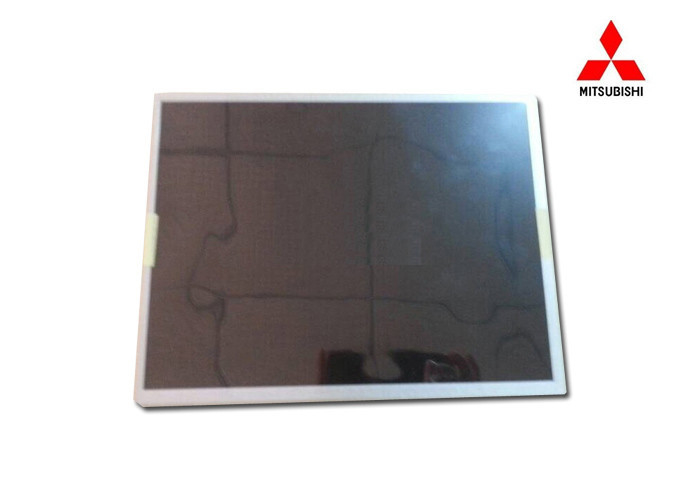

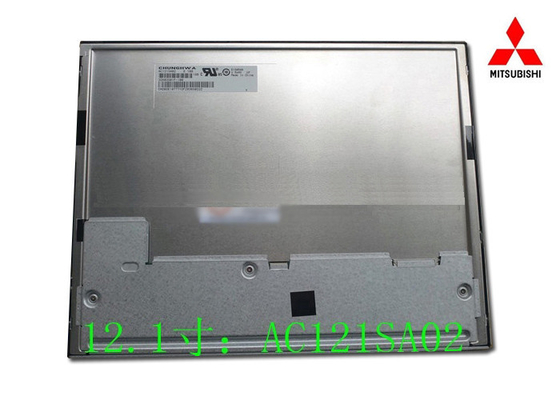

AC121SA02 Mitsubishi 12.1" tft lcd flat panel display 800x600 resolution

Large Image : AC121SA02 Mitsubishi 12.1" tft lcd flat panel display 800x600 resolution Get Best Price

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	RoHS,UL
Model Number:	AC121SA02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Mitsubishi original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	12.1 Inch	Resolution:	800x600
Brightness:	500 Cd/m2	Contrast Ratio:	800:1
View Angle(L/R/U/D):	80/80/60/80(Deg)	Interface:	LVDS
Operating Temperature:	-30~80℃	Storage Temperature:	-30-80℃
High Light:	mitsubishi lcd panel , mitsubishi lcd screen

Mitsubishi 12.1 inch tft lcd AC121SA02 Specifications:

Module number	AC121SA02
Type	a-Si TFT LCD
Panel Size	12.1 inch
Brand	Mitsubishi
Resolution	800x600
Width: Height	4:3
Pixel Pitch	0.3075X 0.3075(mm)
Active Area	249 X 187.5(mm)
View angle	R/L/U/D 80/80/60/80(Deg)
Mode	TN, normally white, transmissive
LCD Surface	Anti-glare, Hard coating (3H)
Number of Colors	262k/16.7M (6-bit/6-bit + Hi-FRC)
Electrical Interface	LVDS(1ch, 6/8-bit)
Brightness	500 cd/m2
Contrast ratio	800:1
Outline dimension	260.5x203x9.5mm(Typ.)
Panel weight	580g(Typ.)
Backlight	WLED
Working lifetime	100K hrs(Min.)
Power Consumption	6.4W(Typ.)
Supply Voltage (V)	3.3V
Response time	16 (ms)
Operate temperature	-30-80 (°C)
Storage temperature	-30-80 (°C)
Application	Industrial grade use.

We also can provide total set such as lcd panel + touch panel + ad board + osd board + cables + Power Supply etc accessories for you, quality promised.

Product Features:

--Long lifetime more than 100K hours at least;

--Wide temperature;

--Wide view angle;

--WLED backlight & LED driver integrated;

--180 Deg. rotation view supported;

--6/8 bit optional;

--Anti-glare surface;

--High color gamut.

Package Details:

Mitsubishi original package;

20pcs/carton;
