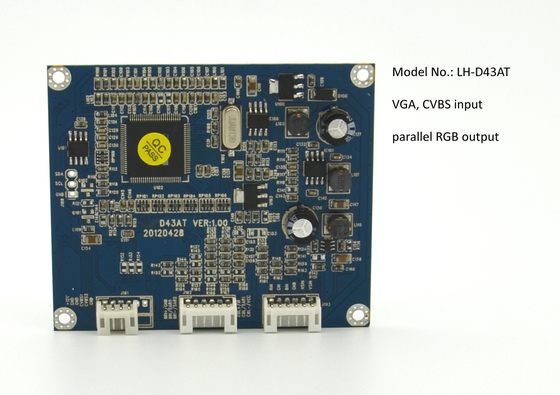

Adjusted VGA input LCD driver board LH-D43AT for small TFT lcd display

large.img.alt
small.img.alt

Large Image :  Adjusted VGA input LCD driver board LH-D43AT for small TFT lcd display Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: LEEHON
Certification: CE, ROHS
Model Number: LH-D43AT
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD8~15 per piece
Packaging Details: Bulk package
Delivery Time: within 1 week
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500000pcs/ month
Contact Now
Detailed Product Description
Input: VGA, CVBS Support Resolution: 640*480, 480*272, 320*240
Output: RGB Dimention: 80.0(W)*67.0(H)*9.2(D) Mm
Operating Temperature: -10~60 Storage Temperature: -20~80
Warranty: 12 Month Technology Support: Available
High Light:

lcd display driver board

,

lcd screen driver board

VGA input LCD driver board  LH-D43AT for small TFT lcd display



General Description:

  • CVBS and VGA signal input
  • CVBS signal with PAL and NTSC two system (auto), the brightness, contrast , color can be
  • Adjusted by OSD menu display
  • PC-RGB mode is only support 640*480
  • Fresh frequency is 60Hz
  • It is mainly used for video door phone or other electronic display equipments



Specifications:



No. Item Description
1 Driving board dimension 80.0(W)×67.0(H)×9.2(D)mm
2 Working temperature ( power Min:DC9V；Standard:DC12V；Max:DC15V；
ripple<0.3VP-P)
3 Working current(DC 12V) DC100mA±10mA
4 Working consumption 1.20W(TYP)
5 Start time 1.5S
6 Working temperature -10℃~60℃
7 Storage temperature -20℃~80℃
8 Humidity 5~95％RH




PCB Struct Diagram(80 (W)×67 (H) ×9.2(D))

Adjusted VGA input LCD driver board LH-D43AT for small TFT lcd display 0

Siutable for TFT LCD panel :TM035KDH03, AT050TN33, AT043TN25 V.2, AT043TN24 V.7



Product shows:

Adjusted VGA input LCD driver board LH-D43AT for small TFT lcd display 1Adjusted VGA input LCD driver board LH-D43AT for small TFT lcd display 2Adjusted VGA input LCD driver board LH-D43AT for small TFT lcd display 3



Tag:

lcd display driver board,

lcd panel driver board,

lcd screen driver board
