AT056TN53 V.1 5.6 Inch Sunlight readable lcd module Panel with LED driver integrated

large.img.alt
small.img.alt small.img.alt

Large Image :  AT056TN53 V.1 5.6 Inch Sunlight readable lcd module Panel with LED driver integrated Get Best Price

Product Details:
Place of Origin: Taiwan
Brand Name: Innolux
Certification: RoHS
Model Number: AT056TN53 V.1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiated
Packaging Details: Innolux original package
Delivery Time: within 1 week
Payment Terms: T/T,Western Union,Paypal
Supply Ability: 1000pcs per week
Detailed Product Description
Size: 5.6 Inch Resolution: 640x480
Brightness: 350 Cd/m2 Contrast Ratio: 500:1
View Angle(L/R/U/D): 70/70/50/70(Deg) Interface: Parallel RGB
Operating Temperature: -20~70℃ Storage Temperature: -30-80℃
High Light:

innolux lcd display

,

car lcd monitor

5.6 inch tft lcd display Innolux AT056TN53 V.1 Specifications:

Module number AT056TN53 V.1
Type a-Si TFT LCD
Size 5.6 inch
Brand Innolux
Resolution 640 × (RGB) × 480
Pixel pitch 0.1764(W) × 0.1764(H) mm
Active Area 115.9 (W) × 87.67(H) mm
View angle R/L/U/D 70/70/50/70(Deg)
Pixel Arrangement RGB Vertical Stripe
Surface Treatment Anti-glare
Electrical Interface Parallel RGB
Brightness 350(cd/m2)
Contrast ratio 500:1
Outline dimension 126.5(W) × 100(H) × 5.7(D) mm
Backlight LED
Response time 25(ms)
Display mode TN, Normally White, Transmissive
Operate temperature -20-70(°C)
Storage temperature -30-80(°C)
Display Colors 262k
Power Supply Voltage 3.3v(Typ.)
Backlight lifetime 20k hrs(Min.)
Power consumption 2.56W(Typ.)
Features

-- 360 Deg. rotation view supported;

-- WLED backlight & LED Driver integrated;

-- Anti-glossy surface.

Application

Portable DVD

Digital photo frame etc common use







We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.













Product Show:

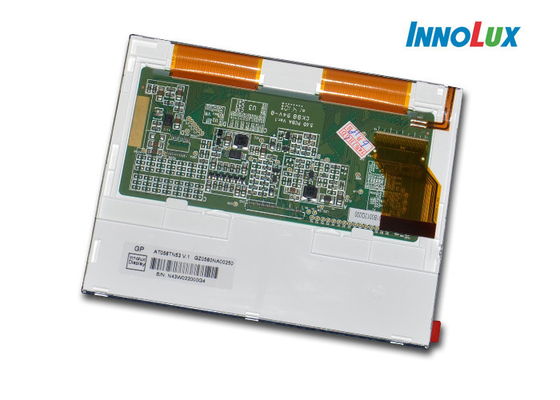

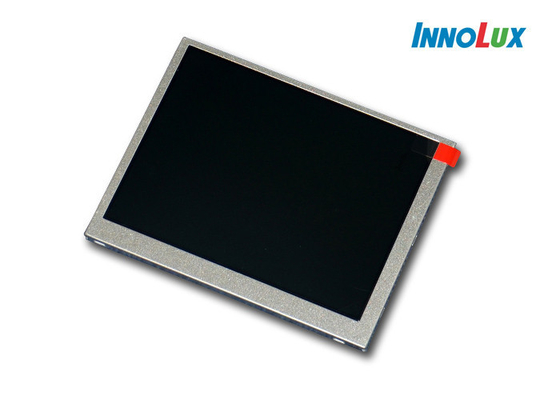

AT056TN53 V.1 5.6 Inch Sunlight readable lcd module Panel with LED driver integrated 0

AT056TN53 V.1 5.6 Inch Sunlight readable lcd module Panel with LED driver integrated 1

















Applications:

AT056TN53 V.1 5.6 Inch Sunlight readable lcd module Panel with LED driver integrated 2
