Product Details:
|
High Light: | 4.3 inch lcd,touch screen lcd display module |
---|

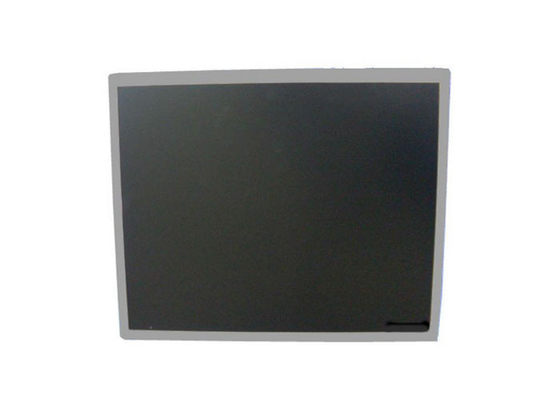

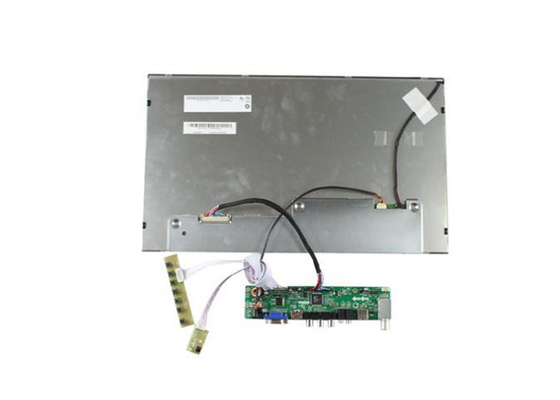

AUO 17.3" TFT LCD Module G173HW01 for Laptop , Notebook , Computer Monitors
Quick Detail
17.3" lcd panel G173HW01 V.0
1. Resolution:1920(RGB)X1080(FHD)
2. Brightness:400nits
3. Contrast ratio:600:1
4. WLED backlight;
5. LVDS
6. Ideal for general applications: Laptop Screen, Notebook, Computer Monitors
Essential Specification
Panel module |
G173HW01 V.0 |
Panel size |
17.3 inch |
Resolution |
1920(RGB)X1080(FHD) |
Aspect ratio |
16:9(W*H) |
Surface |
Glare(Haze 0%,Hard coating (3H)) |
Active Area |
381.89*214.81 mm(W*H) |
Bezel Area |
385.09*218.01mm (W*H) |
Outline Dimension |
403.00*240.00mm (W*H) |
Outline Depth |
12.5+0.5 mm |
Display module |
TN, Normally White Transmissive |
Brightness |
400cd/m2 (Typ.) |
Contrast Ratio |
600:1(Typ.)(Transmiss) |
Display Color |
16.7M(6—bit+Hi+FRC) |
Color Gamut |
72% |
Response Time |
37/3(Typ.)(Tr/Td)(ms) |
Viewing Angle |
80/80/60/80(Typ.)(CR>10)(L/R/U/D) |
Vertical Frequency |
60HZ |
Lamp Type |
WLED |
Lamp Driver Board |
|
Signal Category |
LVDS |
Signal Glass |
LVDS(2ch ,8-bit) |
Pin Configuration |
LVDS-30P2C88-200A |
Input Voltage For Panel |
1.2/1.4A(Typ.Max) |
Input Current For Panel |
5.0/6.0W(Typ.Max) |
Pane Power Consumpation |
|
Interface Type |
Connector |
Interface Brand |
HRS |
Interface Module |
MDF76TW-30S-1H |
Interface Pin Pitch |
1.0mm |
Interface Pins |
30Pin |
Amount Per Box |
10Pcs |
Box Size |
524*321*360mm (L*W*H) |
The main model of AUO is as follows:
G043FW01 V0 |
A101VW01 V3 |
G150XG01 V4 |
G190EG01 V0 |
G043FTT01 V0 |
A101SW02 V1 |
G150XTN01 V0 |
M185XTN01 V2 |
G057QN01 V2 |
G101EVN01.0 |
G150XG03 V2 |
G190EG01 V1 |
G057VN01 V2 |
A101EW01 V0 |
G150XG03 V3 |
G190EG02 V0 |
G057VTN01 V0 |
B101EW05 V1 |
G150XG03 V5 |
G190EG02 V1 |
G065VN01 V2 |
G104VN01 V1 |
G150XTN03 V0 |
G190ETN01 V0 |
C065VW01 V0 |
G104SN02 V2 |
G151EVN01 V0 |
G190SF01-V0 |
G070VW01 V0 |
A104SN03 V1 |
G156XW01 V0 |
M190EG01 V2 |
G070VW01 V1 |
G104SN03 V5 |
G156XW01 V1 |
M190EG01 V3 |
G084SN03 V3 |
G104XVN01 V0 |
G170EG01 V0 |
M190ETN01 |
G084SN05 V9 |
A116XW02 V0 |
G170EG01 V1 |
G220SW01 V0 |
G085VW01 V0 |
G121SN01 V4 |
M170ETN01-V0 |
G220SVN01.0 |
G085VW01 V3 |
G121XN01 V0 |
G173HW01 V0 |
G240HW01 V0 |
G090VTN02 |
G121STN01 V0 |
G185XW01 V0 |
G215HVN01-V0 |
G101EVN01 V0 |
G150XG01 V3 |
G185XW01 V1 |
M215HTN01.1 |
FAQ
1. Q: What Brand do you have?
A: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG
2 .Q: What is your delivery method?
A: DHL , UPS , FedEx ,TNT
3. Q: what’s your products condition?
A: Brand New,A grade,Original Package.
4 .Q: What is your guarantee time?
A: 1 year for A grade
5. Q: What is delivery time?
A: 2-7 days after payment is received.
6. Q: What payment term do you accept?
A: We accept payment terms: T/T, Paypal,Western Union
7. Q: what’s the certification your products get?
A: Rohs Compliant
8. Q: How long can you supply the industrial grade products?
A: at least 3-5 years
9. Q: what’s your MOQ of your products?
A: NO MOQ
The more information about Team-Ants is as follows:
1) Product focus:
* Team-Ants is one of the main agents: AUO/Tianma/Innolux/Mitsubishi/CMI/Sharp/NEC/SAMSUNG 2)Lcd
2) panel size range:
* 2.2 inch to 24 inch with stable supplied;
3) Quality promise:
* All the panels are 100% original and brand new, no fake panels, quality promised; And also Provided 12 months of warranty, you can return any fake panels and charges by us, so from here you can enjoy the real panels directly from original factory;
* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the packages have labels and serial number, you can check them;
4) With The most competive price and quickly delivery for batch order :
* Here will send the products from the original factory directly , so from here you can get the most competitive price with long relationship with original factory;.
* We also have international logistic center in Hongkong to support your batch orders.We can delivery the goods from Hongkong directly avoiding the VAT for China govenment. so from here you can get more competitive price and quickly delivery;
5) Products for Application range:
Aviation, POS, ATM, Kiosk, Marine, Medical, MFP, E-signage,gaming,Pachinko,facotry automation etc.
6) Our parters:
* Products are sold to more than 20 countries, regular supplier of Marvell(USA),Moran AV(Israel), EUROCOMPOSANT(Franch),ELMAK srl(Italy), Russian Federation(OOO West-Ost ) etc., so from here you can get more stable supplying promise;
7) After-Sale service:
* Team-Ants will support original factory technology service before and after sale for all your project, you can send back all the fack panel and here will change a new panel for you;
8) To choose the best TFT LCD solution:
Main Application
Product |
Applications |
Small-size TFT LCD Module |
mobile device,watch,toy,medical equipment, Office electronic equipment,camera, air-condition display, etc. |
Mid-size TFT LCD Module |
mobile device,medical equipment,car, automotive product,industrial control equipment,POS,PDA, Household Video doorbell, air-condition display,etc. |
Big-size TFT LCD Module |
educational product,automotive product,video door phone, Audiovisual equipment,DVD player,media play,tablet PC, Security Products,etc. |
TN/STN//FSTN/OLED |
elevator controller,watch,electronic product,air-condition display,all kinds of instrument,etc. |
7. General Business Clauses
1 |
MOQ: |
No MOQ |
2 |
L/T: |
2-7days on receipt of payment |
3 |
Trade Terms : |
FCA HK |
4 |
Payment: |
100% T T in advanc for samples , 50% T T in advance and 50% before delivery for mass production |
5 |
Warranty: |
12 months |
6 |
Package: |
Plastic Tray+Anti-Static Foam+Paper Card+Vacuum Bag+Carton |
Tel: +86-755-29858730~305
