Backpack Serial Enabled Character LCD Display - 5v SerLCD v2.5 module

small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Backpack Serial Enabled Character LCD Display - 5v SerLCD v2.5 module Get Best Price

Product Details:
Place of Origin: USA
Brand Name: E-Chips
Certification: ROHS Compliant
Model Number: Serial Enabled LCD Backpack - 5v SerLCD v2.5 module
Detailed Product Description
High Light:

Text LCD Display


alphanumeric lcd display

Character LCD Display Serial Enabled LCD Backpack - 5v SerLCD v2.5 module



Quick Detail:

  1. Part number : Serial Enabled LCD Backpack
  2. Description : 5v SerLCD v2.5 module

  3. Category : LCD Display
  4. D/C : 2014+
  5. ROHS : Yes
  6. Lead time : Can Dispatch Immediately




Character LCD Display Serial Enabled LCD Backpack - 5v SerLCD v2.5 module

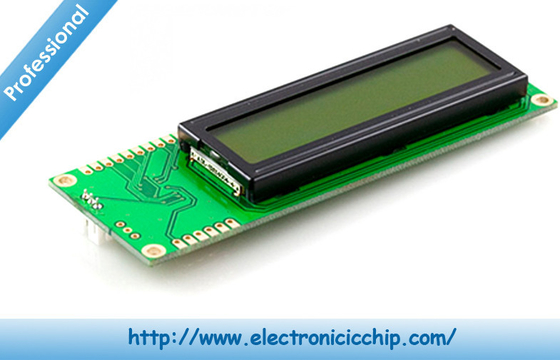

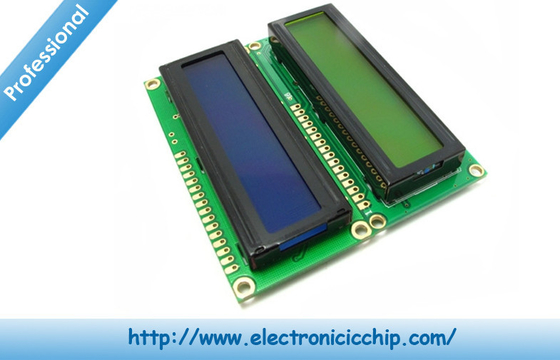

The serial enabled LCD backpack allows you to control a parallel based LCD over a single-wire serial interface. The SerLCD backpack takes care of all the HD44780 commands allowing seamless integration with any micro that can communicate over a wide range of TTL serial baud rates. The SerLCD currently supports 16 and 20 character wide screens with 2 or 4 lines of display.

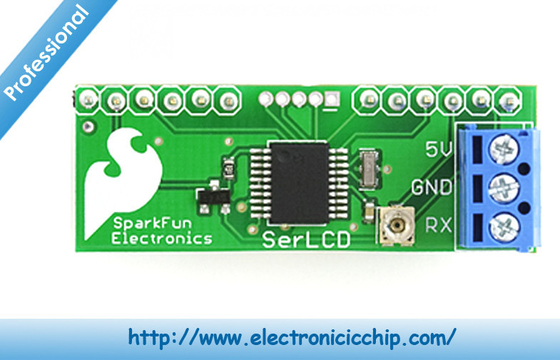

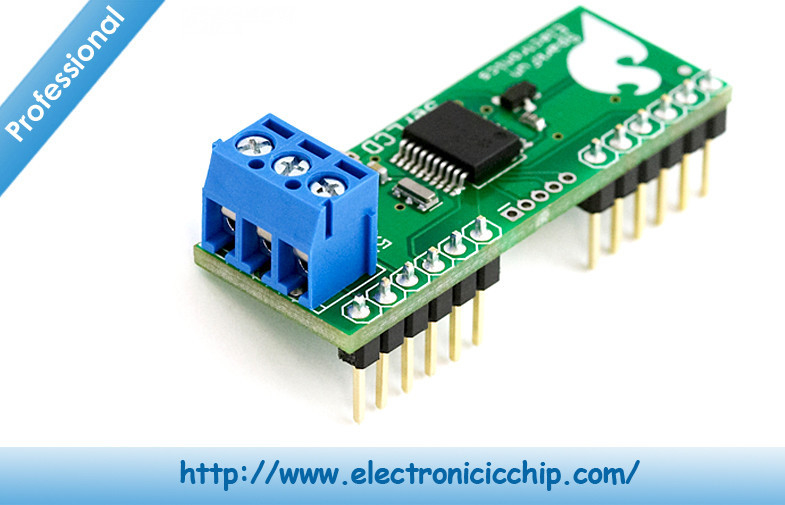

Communication with SerLCD requires 5V TTL serial at a default baud rate of 9600bps (8-N-1). You can adjust the baud to any standard rate between 2400 and 38400bps. The power, ground and RX pins are all broken out to a 3.5mm pitch screw terminal.

SerLCD has the ability to dim the backlight to conserve power if needed. There is also a potentiometer on the backpack to adjust the contrast.


All of the application




  1. New PIC 16F688 utilizes onboard UART for greater communication accuracy
  2. Adjustable baud rates of 2400, 4800, 9600 (default), 14400, 19200 and 38400
  3. Operational Backspace
  4. Greater processing speed at 8MHz
  5. Incoming buffer stores up to 80 characters
  6. Backlight transistor can handle up to 1A
  7. Pulse width modulation of backlight allows direct control of backlight brightness and current consumption
  8. All surface mount design allows a backpack that is half the size of the original
  9. Faster boot-up time
  10. Boot-up display can be turned on/off  via firmware
  11. User definable splash screen


Competitive Advantage:
E-Chips Solution Co.,LTD As an electronic manufacturing partner, one of our most valuable and critical roles is complete BOM fulfillment!


“ Production Ready ”  kit including PC Boards can be delivered to you or directly to your assembly partner
Provides traceability of all board level components to ensuring quality
Your components are inventoried at our facility ,  at our expense, until you need it for production
Dramatically improves your time to market
Eliminates line down shortages due to lead time or obsolescence issues
Increase your cash flow by paying for the product as you need it.
Lowers your overall cost of procurement
Pay only one invoice ,  not 20
Global reach in the supply chain
Will decrease or eliminate excess inventory
Dramatic savings in freight expenses with one shipment from one supplier
Never have to expedite again
Improved efficiencies for entire organization , including : sourcing , purchasing , expediting , receiving , stocking , pulling , and accounting



1. Our products are sold to the world every minutes,shipped by DHL , UPS , FedEx ,TNT , EMS and HK post . The packaging is very safe and strong . If you have any special needs please notice us !

2. It will take around 3-5 days to reach your hands.
