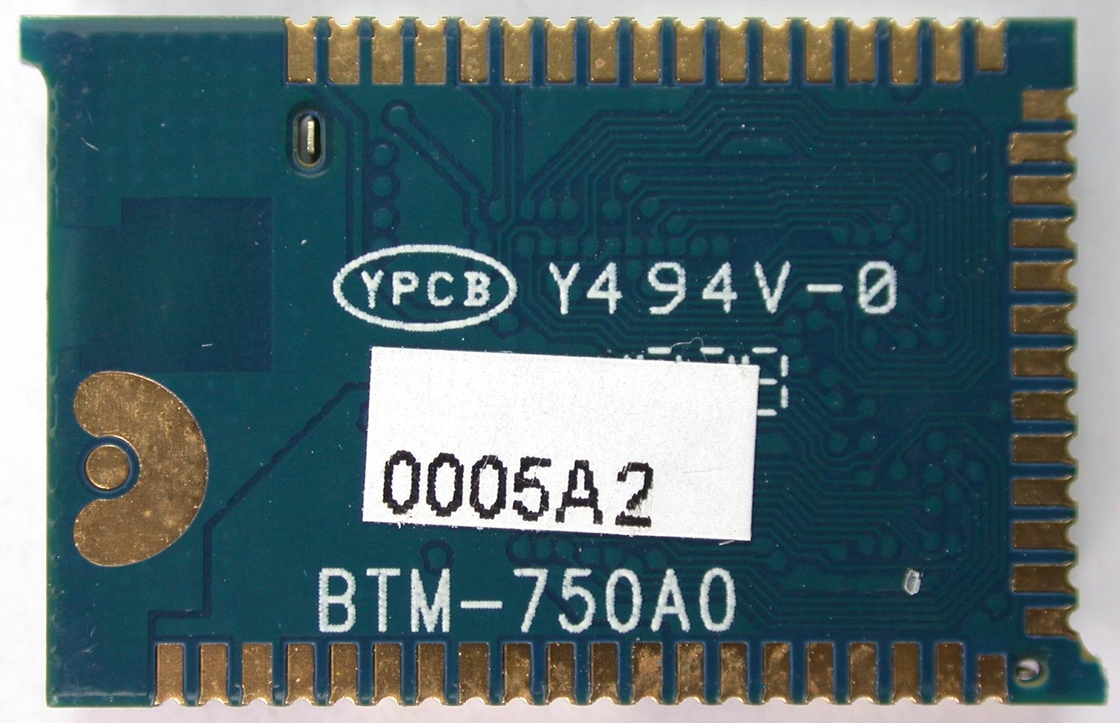

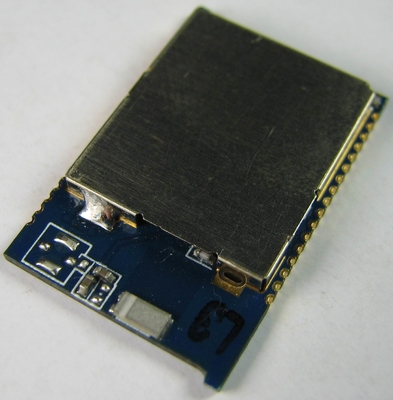

Class 2 Csr BC5 Bluetooth Module Audio

large.img.alt
small.img.alt small.img.alt

Large Image :  Class 2 Csr BC5 Bluetooth Module Audio Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rayson
Certification: BQB, FCC
Model Number: BTM760
Payment & Shipping Terms:
Minimum Order Quantity: 500~1K
Packaging Details: Reel/Tray/Carton
Delivery Time: 7 working days after payment for samples, 8w for MP orders
Payment Terms: T/T, L/C, Check
Supply Ability: 5~10k/day
Detailed Product Description
High Light:

bluetooth audio module

,

csr bluetooth module



Class 2 Csr BC5 Bluetooth Module Audio



Product Description


This is a Bluetooth Class2 (max 4dBm) module with on board antenna. The on board antenna eliminate the need of matching circuit on the main board and therefore save the costs of production test. It is based on CSR Bluecore 5 (BC5)-MM chip set. It can support Bluetooth V2.1+EDR system. The Embedded Kalimba DSP Co-Processor supports the advanced features such as echo cancellation, noise reduction and stereo audio (A2DP profile) communications. Thanks to the 16M bits program flash memory, the module can be integrated with fruit of Bluetooth profiles stack to meet various kinds of application. The integrated stereo DAC provide high quality audio performance with SNR up to 95dB. Support digital audio bus such as PCM, I2S or SPDIF. And the on chip Switched-Mode Regulator and Li-ion battery charger eliminate the needs of external components and costs. The host Interfaces include USB and UART, that are programmable for data communication, module control or firmware upgrade.
The powerful and flexible design allows the module to support HSP/HFP/A2DP/AVRCP SPP, PBAP, …all kinds of Bluetooth profiles.



Applications


 High quality wireless stereo headset.
 High quality wireless stereo speaker.
 High quality wireless stereo transmitter.
 High quality wireless microphone
 Wireless USB audio class device.
 Dual paring mono headsets with noise reduction capability.
 Hands-free car kits.
 VOIP or land line phones wireless headsets.
 Bluetooth Audio Gateway



Product Benefits


 Powerful and flexible that fits various kinds of the Bluetooth applications.
 Compact Bluetooth stack firmware, easy to use.
 On board antenna that eliminate the need of matching circuits.
 16M bits program flash memory that allows more integrated functions.
 Embedded Li-ion battery charger.



Product Specification



Dimension

16x24x2.6 mm

Bluetooth Standard

V2.1+EDR

RF Power

-6dBm to +4dBm

Receiving Sensitivity

-82dBm

Program Flash Memory

16M bits

Audio Interfaces

Analog,  PCM,  I2S and SPDIF

Host Interface

USB and UART

Supply Voltage

3.3V – 4.2V

Class 2 Csr BC5 Bluetooth Module Audio  0Class 2 Csr BC5 Bluetooth Module Audio  1Class 2 Csr BC5 Bluetooth Module Audio  2Class 2 Csr BC5 Bluetooth Module Audio  3Class 2 Csr BC5 Bluetooth Module Audio  4Class 2 Csr BC5 Bluetooth Module Audio  5
