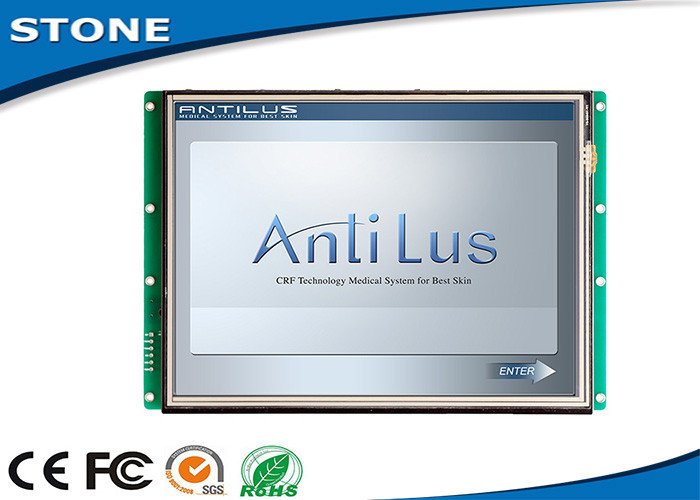

Model: | STA104WT-01 | Size (Inch): | 10.4" |
---|---|---|---|
Resolution: | 800×RGB×600 | Pixel Spacing: | 0.1905mm×0.0635mm (H×V) |
Color: | 65536 Colors (16 Bit) | Viewing Area: | 211.2mm×158.4mm |
High Light: | tft lcd touch screen module,lcd display modules |
Product Description
1. Used as Touch-controller & TFT-LCD display system
2. Controlled by Any MCU via simple "Command Sets"
3. Low Cost HMI device
Product Characteristics
Advantages
With CPU & Driving Device |
Controlled by Any MCU |
Display Picture/ Text/ Curve via Commands |
65536 colour TFT display |
Touch Screen |
RS232/ RS485/ TTL UART Interface & USB port |
Wide voltage range |
Widely Used in many various Industrial Field |
Easy to Use! Powerful Function! Saving Cost and Time! |
Used as Touch-controller, TFT-LCD display system, etc. |
All Models
Main Size of TFT LCD Module |
|
Size |
Resolution |
3.5” |
320×RGB×240 |
4.3’’ |
480×RGB×272 |
5.0” |
640×RGB×480 |
5.6’’ |
640×RGB×480 |
5.7” |
640×RGB×480 |
6.5’’ |
640×RGB×480 |
7.0’’ |
800×RGB×480 |
8.0’’ |
800×RGB×600 |
8.4’’ |
800×RGB×600 |
10.2’’ |
1024×RGB×600 |
10.4’’ |
800×RGB×600 |
12.1’’ |
1024×RGB×768 |
15.0’’ |
1024×RGB×768 |
15.6’’ |
1366×RGB×768 |
18.5” |
1366×RGB×768 |
