Custom G133IGE-L03 13.3 inch industrial lcd panel 6 / 8 bit optional Anti - glossy surface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 13.3 Inch | Resolution: | 1280x800 |
|---|---|---|---|
| Brightness: | 500 Cd/m2 | Contrast Ratio: | 800:1 |
| View Angle(L/R/U/D): | 70/70/60/60(Deg) | Interface: | LVDS |
| Operating Temperature: | -30~70℃ | Storage Temperature: | -30-80℃ |
| High Light: | Chimei LCD display,Industrial lcd screen |
||
Chimei industrial 13.3 inch tft lcd panel G133IGE-L03
Specifications:
| Module number | G133IGE-L03 |
| Type | a-Si TFT LCD |
| Size | 13.3 inch |
| Brand | CMI |
| Resolution | 1280X800 |
| Width:Height | 16:10 |
| Pixel Pitch | 0.2235×0.2235(mm) |
| Active Area | 289.1×181.8(mm) |
| View angle | R/L/U/D 70/70/60/60 (Deg) |
| Mode | TN, normally White, transmissive |
| LCD Surface | Anti-glare, Hard coating(3H) |
| Number of Colors | 262K/16.2M(6 bit/ 6 bit + FRC) |
| Electrical Interface | LVDS(1ch, 6/8 bit) |
| Brightness | 500 cd/m2 |
| Contrast ratio | 800:1 |
| Outline dimension | 299x195x8.2mm(Typ.) |
| Panel weight | 382g(Typ.) |
| Backlight | WLED |
| Supply Voltage (V) | 3.3V |
| Response time | 6/10(ms) |
| Operate temperature | -30-70(°C) |
| Storage temperature | -30-80 (°C) |
| Application |
Special for industrial grade use.
|
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- WLED backlight & LED Driver integrated;
-- Wide screen;
-- Wide temperature;
-- 6/8 bit optional;
-- Anti-glossy surface.

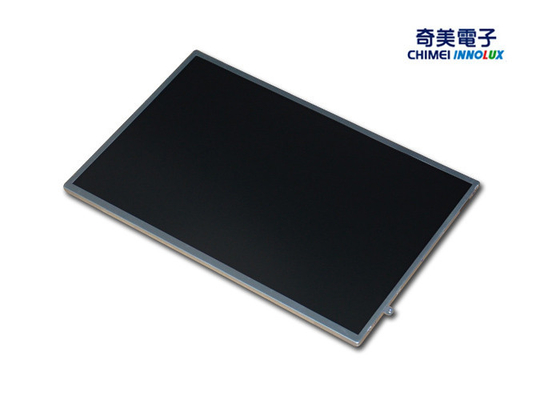

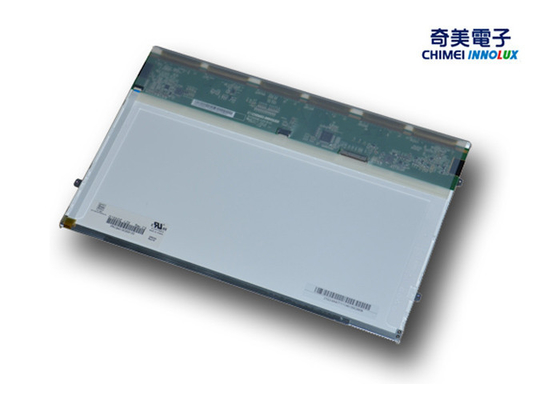

Product Show:
