Custom monochrome COB 1.68 inch segment LCD Display 128 * 64 White , side
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Dispaly Mode: | Segment Lcd Display | Resolution: | 128*64 Dots |
|---|---|---|---|
| Controller IC:: | ST7565P | Drive Method:: | 1/64 Duty; 1/9 Bias |
| Active Area:: | 36.07*23.01 Mm | Interface: | Serial/parallel Port, Optional |
| Polarizer Type:: | Transflective, Positive | Operating Temperature: | –10ºC TO +60ºC |
| Storage Temperature: | –20ºC TO +70ºC | Display Type: | STN, Blue |
| High Light: | segment lcd module,character lcd module |
||

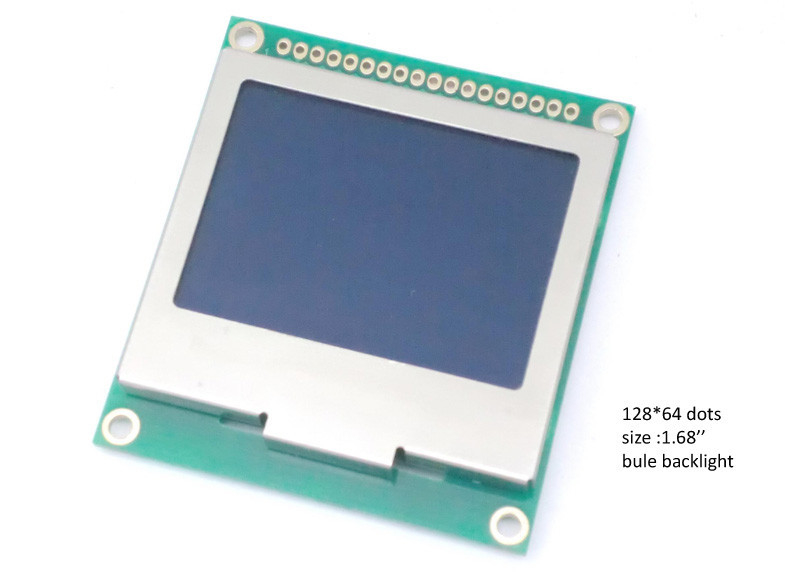

blue background 1.68 inch segment LCD Display 128*64
Specification:
| Product name.: | graphic lcd display |
| Model NO.: | 12864K11 |
| Product type | COB |

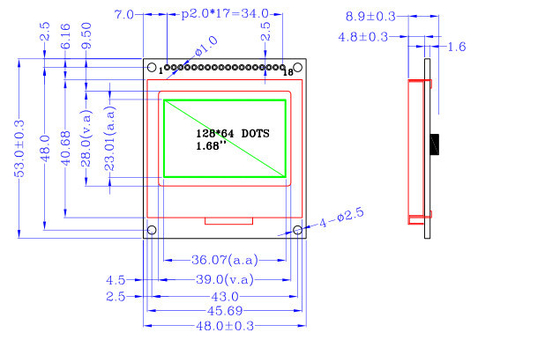

| Outline Size: | 48.0*53.0*8.90 mm |
| View Area: | 39.0*28.0 mm |
| Active display area: | 36.07*23.01 mm |
| Display Type: | STN, blue |
| Polarizer Type: | Transflective,Positive |
| View Direction: | 6:00 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/64 Duty; 1/9 Bias |
| Controller IC: | ST7565P |
| interface: | Serial/parallel port, optional |
| Backlight type: | White,side |
| Backlight Supply Voltage: | +3.3V |
| Operating Temp: | –10ºC TO +60ºC |
| Storage Temp: | –20ºC TO +70ºC |
Welcome to customize product!
we have a professional R&D team working for you !
Custom LCD Glass
1. Determine the type of project (Graphic / Character /Segment /OLED)
a) An Existing Project
b) Drop in Replacement
c) New Design
2. Dimensions (Specification / Drawing / Sketch of the LCD, if available)
3. Connection (pin, zebra, heat seal or FPC)
4. LCD Mode Preference (TN Positive/Negative, STN Positive YG, STN Negative Blue, STN Positive Gray, FSTN Positive, FSTN Negative, FFSTN Negative)
5. LCD Polarizer Type Preference (Reflective / Transflective or Transmissive)
6. Temperature range (indoor use or outdoor use)
7. Application
8. Quantity
9. Target Price (If Available)
Custom LCD Module
1. Determine the type of project (COB /COG /TFT)
a) An Existing Project
b) Drop in Replacement
c) New Design
2. Dimensions of PCB and LCD (Specification / Drawing / Sketch of the LCD, if available)
3. CHARACTER MODULES
The Type of Display (Segment / Alphanumeric)
How Many characters have to be displayed?
4. GRAPHIC MODULES: The Resolution Requirement
5. LCD Mode Preference (TN Positive/Negative, STN Positive YG, STN Negative Blue, STN Positive Gray, FSTN Positive, FSTN Negative, FFSTN Negative)
6. LCD Polarizer Type (Link to http://www.orientdisplay.com/lcds-basics.html#RTT) Preference (Reflective / Transflective or Transmissive)
7. IC Package Type Preference (Chip on Board)
8. Preferred Voltage, Duty, and Bias
9. Temperature range (indoor use or outdoor use)
10. Backlight Color Preference
11. Application
12. Quantity
13. Target Price (If Available)
