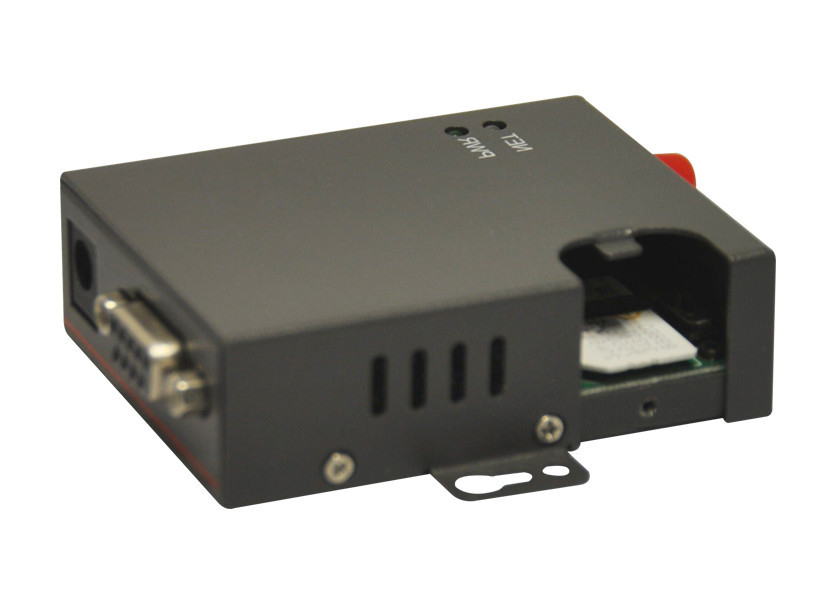

Data transimission Industrial GPRS Gateway 2.5G DTU, serial to cellular IP


Large Image :  Data transimission Industrial GPRS Gateway 2.5G DTU, serial to cellular IP Get Best Price

Product Details:
Place of Origin: CHINA
Brand Name: WLINK
Certification: CE, ROHS
Model Number: WL-D801-4
Payment & Shipping Terms:
Minimum Order Quantity: For WLINK brand, MOQ 1 unit, For OEM MOQ 50 units
Price: negotiation
Packaging Details: One set to one box, 20 units boxes to one carton
Delivery Time: Stock for small quantity, 5-7 working days for bulk order
Payment Terms: TT, L/C, Paypal, Western Union or Cash in advance
Supply Ability: 5000 sets / Per month
Detailed Product Description
Products Name: Industry GPRS Modem Protocols: PPP, TCP/IP, UDP/IP
Power Supply: 5 - 32 VDC AT Command: Optional Supported
Type: Industrial Grade Interface: RS-232
Frequency Band: GPRS/EDGE Qual Band
High Light:

GPRS Industrial Modem


Industrial Gateway

Industrial GPRS Gateway 2.5G DTU, serial to cellular IP for data transimission
The WL-D801 GPRS serial gateway (also called DTU) can look similar to the common Modems / terminals. Wlink serial to GSM/GPRS/EDGE IP modem is a kind of cellular terminal device that provides data transfer function by by mobile 2G/2.5G network.It adopts high powered industrial 16/32 bits CPU

and embedded real time operating system.The cellular gateway has additional processing capability and built-in software which allows them to operate autonomously as self-managing communications devices.


It supports RS232 ( or RS485, RS422) port that can conveniently and transparently connect one device

to a cellular network, allowing you to connect to your existing serial devices with only basic configuration.
Once configured, WLINK DTU provide ‘IP’ or internet communications for other devices which have limited or no built-in capability to manage a modem.



  • Optimized EMC design

  • Standard PPP, TCP/IP and UDP/IP protocol

  • Industrial pluggable terminal block

  • Industrial CDMA/EDGE/GPRS wireless module

  • Support APN and VPDN wireless private network

  • Support short message service (SMS)

  • Support transparent data transmission

  • Support data service center with dynamic IP address

  • Support LED status indication

  • Wide range voltage input

  • Smart power management

  • External power on/off control

  • Reliable, flexible and easy to deploy

Multiple operation model

  • Always online: automatically attaches 2G/2.5G when powered on automatically redials when off line and keep line alive

  • Offline when idle and trigged online by user data, ring or SMS

  • GPRS channel and SMS mutual backup

  • Online/offline control by commands via user equipment

  • Data loop test

Multiple data service centers communications

  • Supports up to 4 data service centers communications

  • Supports main/backup data service centers communications

  • Supports customized setting for each data service center

Flexible and utilitarian data communications

  • Supports TCP/IP, UDP/IP, DDPTM, SMS and AT

  • Self-defines transparent or protocol communications

  • Self-defines customized data frame separator

  • Self-defines reconnecting interval

  • Self-defines heart-beat data frame

Parameters configuration and remote management

  • Built-in parameters configuration menu

  • Configuration tool based on PC

  • Remote parameters configuration via data service center

  • Remote parameters configuration by SMS

  • Parameters configuration via AT+ commands

Full function data service center development kits

  • Provides function development package

  • Provides complete sets of demo source code (VB, VC, C#, Delphi, VB.net)

  • Provides data forwarding service center for data transparency forwarding



  • GSM/EVDO Protocol
  • Frequency Band: GPRS/EDGE 850/900/1900/2100MHz
  • Output Power
  • GPRS/GSM: 33dBm (Power Class4)
  • GPRS/EDGE: Class 2, Class B
  • Sensitivity:  GSM/GPRS 3GPP TS05.05(R99)
  • IEEE 802.3u


  • Voltage: DC +5 ~ 48V (standard 12V/1A power adapter)
  • SIM/R-UIM Card: 3V
  • Consumption

      Transfer mode: 70Ma/12v (Average), Idle mode: 17mA/12V (Max)


  • Antenna: SMA-K(Female)
  • Standard SIM/R-UIM interface
  • Serial data interface: RS-232/RS-485/RS-422/TTL, DB9 connector
  • Rate: 300-115200bps


  • Dimension: 70.5mm x 55.5m x 22mm  (not including antenna)
  • Operation temperature: -30~+75℃
  • Store temperature: -40~+85℃
  • Related humidity: <95% (non-condensing)
  • Guarantee: one year


Power SCADA, oil field, coal mine, weather forecast, environment protection,

water conservancy, heating, natural gas, petroleum.
Competitive Advantage:

  • WLINK Router are Industrial grade design which can endure high and low temperature and other extreme application environment

  • WLINK has ability to produce a quality product at a economic cost to meet the market and project requirement.

  • Strong R&D Team who have 10+ year experience in M2M cellular field

  • WLINK always provide the best pre-sale and after sale service to customer
