Digital Industry lcd display module / RoHS serial lcd module

Physical Parameter

Model:

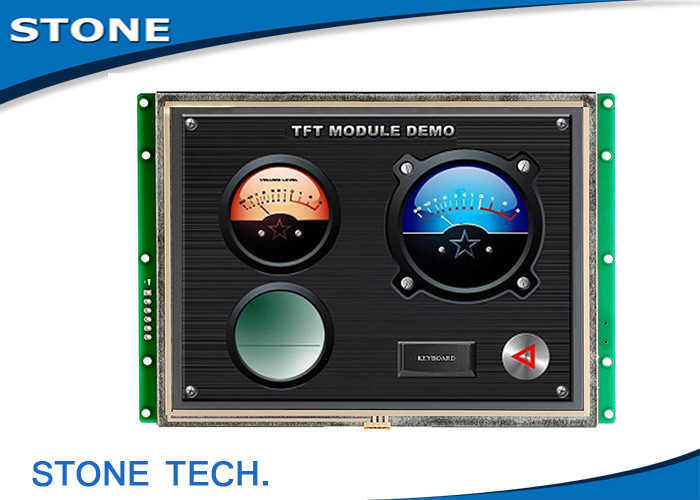

STA080WT-01

Size (Inch):

8.0’’

Resolution:

800×RGB×600

Pixel Spacing:

0.1905mm×0.0635mm (H×V)

Color:

65536 colors (16 bit)

Viewing Area:

162.0 mm×121.5 mm

Display Dimension:

164.0 mm×123.5 mm

Overall Dimension:

204.8 mm×142.4mm×20mm(N)/ 22mm(T)

Net Weight:

435g(N)/ 550g(T)

TFT Panel:

A+ Level Industry Panel

Touch Screen:

Industry Level 4 wire resistance
Or without touch screen is optional.

Backlight Parameter

Backlight Type:

LED

Brightness:

450cd/m2
(Brightness can be adjustable in 100 levels.)

Contrast:

500:1

Backlight life:

50,000 hours

Viewing Angle:

70°/70°/50°/70°(L/R/U/D)

Working Temperature:

-30℃ ～ +85℃

Working Humidity:

60℃,90%

Storage Temperature:

-30℃ ～ +85℃

Screen Mode:

Digital

Performance Parameter

CPU:

CortexM3 STM32F103  200MHz

LCD Controller:

CPLD EPM240

Refresh Rate:

60Hz

Picture Switching Speed:

47 ms/picture (21 pictures/s)

Flash Memory:

Standard 2GB,Extension 4GB

Memory Amount for picture:

236 images

Interface:

RS232 /TTL UART Interface
(Extend to RS485 so on.)

Pictures downloading:

MiniUSB2.0 (12Mbps)

Voltage Range:

DC4.5V ～ 35V (typical value: 12V)

Power:

4W

Test Report

MTBF:

4,250,000 H

Working Temperature:

-30℃ ～ +85℃

Air Humidity:

60℃,90%

Continuous Vibration Testing:

10-55Hz,1.5mm,10G

Impact Acceleration Testing:

6ms,100G

ESD Testing:

10KV

Radiation Reliability Testing

44W

Main Size of TFT LCD Module

 Size

   Resolution

 3.5”

 320×RGB×240

 4.3’’

 480×RGB×272

 5.0”

 640×RGB×480

 5.6’’

 640×RGB×480

 5.7”

 640×RGB×480

 6.5’’

 640×RGB×480

 7.0’’

 800×RGB×480

 8.0’’

 800×RGB×600

 8.4’’

 800×RGB×600

 10.2’’

 1024×RGB×600

 10.4’’

 800×RGB×600

 12.1’’

 1024×RGB×768

 15.0’’

 1024×RGB×768

 15.6’’

 1366×RGB×768

 18.5”

 1366×RGB×768
