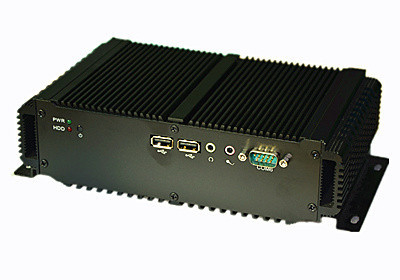

Extreme Rugged High Performance Fanless Embedded Box PCs Intel D525 For Industrial, Transportation IBOX-525A

Large Image : Extreme Rugged High Performance Fanless Embedded Box PCs Intel D525 For Industrial, Transportation IBOX-525A Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	PONTRON
Certification:	CE/FCC/CCC

Contact Now

Detailed Product Description

High Light:

fanless pc

fanless pc industrial

fanless computers

Extreme Rugged High Performance Fanless Embedded Box PCs Intel D525 For Industrial, Transportation IBOX-525A
Main Feature
·Compacting fanless design
·Intel ATOM D525 1.8G
·Support 6*RS232 COM
·Support DC12V power supply

Introduction
IBOX-525A is mini Box PC with on board Intel ATOM D525 dual-Core 1.8Ghz CPU, Intel ICH8+D525 chipset, which comes with 1*VGA, 6*RS232 com( one of RS485/422) which can be connected to many kind of signals, 2*RJ45, 4*USB 2.0, 1*Audio line out Mic in. WIFI(optional) with compacting fanless design. It’s very good heat scattering and beautiful appearance, being popular in the whole market. Box PC help user to save space with multi-functions which can be used to office, equipment, industrial line, transportation, automation, communication etc.

Specification

CPU	Intel ATOM D525 Dual-Core 1.8G
Chipset	Intel ICH8+D525
Memory	DDR3 1333 2G
Hard disk	2.5”SATA 160G/16G SSD(option)
I/O	1 x VGA
	6 x RS-232(option 1 x RS485/422)
	2 x RJ45 10/100/1000M LAN(option)
	4 x USB2.0
	1 x AUDIO LINE OUT Mic in
	1 x WIFI(option)
Power supply	DC 12V Input
LED light	1 x Power LED,1 x HDD LED
Color	White/Black(option)
Dimension	215 x 125 x 60mm
N.G	2.5KG
Operating Temperature	0°C ~ 60°C
Storage Temperature	-10°C ~ 70°C
Storage Humidity	5~90%@40°C(non-condensing)
Vibration	5 grms / 5 ~ 500Hz in working status(SSD) 1 grms / 5 ~ 500Hz in working status(Built-in HDD module)
Shock	50 g peak acceleration(11ms duration)(SSD) 20 g peak acceleration(11ms duration)(Built-in HDD module)

Ordering information

IBOX-525A

Mini PC with onboard Intel Atom D525 Dual-Core 1.8G, W/2G memory, W/SSD16Gb, W/12V power supply. Mini PC with onboard Intel ATom n be connected to many kind of signals.

Packing list
1*user manual
1*driver CD disk
1* power cord
