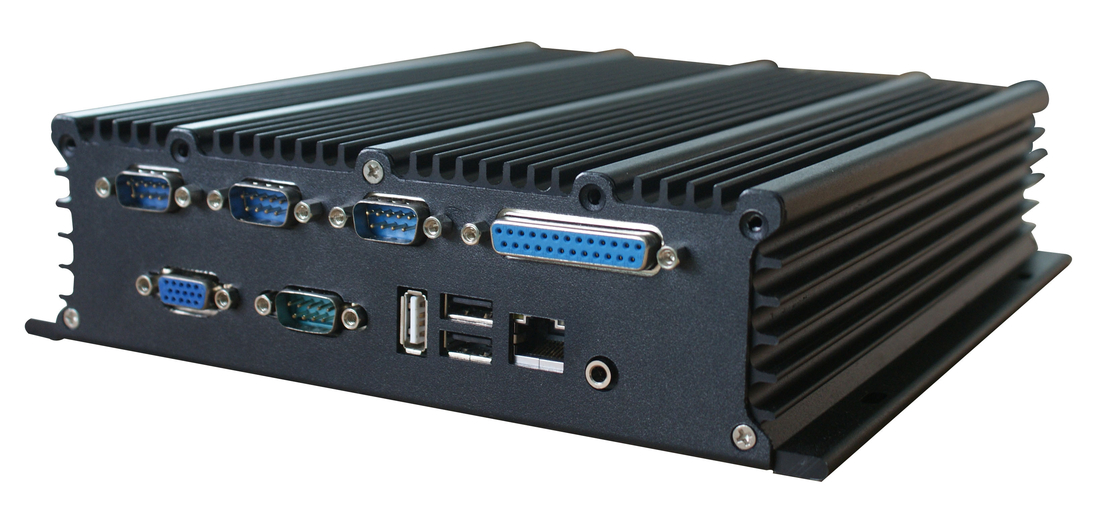

Fanless embedded industrial pc 1037U/Linux O/S

System

Motherboard

Mini-ITX MP-270L

Embedded CPU

Intel Atom CPU N270

Memory

Soldered onboard 2GB DDR2-800 SDRAM

Chipset

Intel 945GSE+ICH7M Chipset

ATA

2*Serial ATA II ports with 3GB/s HDD/SDD transfer rate

LAN Chipset

1*Realtek RTL8111DL Gigabit Ethernet controllers

Audio

ALC 662 2-channel Audio Codec intergrated

Mult I/O

IO Port

4*DB-9 Male connector Port

Support 4*RS232 ports (COM1 is RS232/422/485 selectable)

1*DB-9 female connector Port

7*USB 2.0 ports

1*DB-15 female connector Port for Analog RGB

1*DB-25 female connector Digital I/O Port LPT

1*Audio

1*MIC

1*LAN

1*PS2

1*44-pin IDE Header

1*LVDS connector,supports dual channels 24-bit LVDS output

1*LVDS connector,supports single channels 18-bit LVDS output

Expansion Bus

1*PCI slot w/ riser card

1*Mini PCI-E slot w/ riser card

Environmental

Operating Temp

-10~60℃

Storage Temp

-40~85℃

Relative Humidity

20~85%

Vibration

3 Grms/5~450Hz/random operation

Shock & Crash

Operating 20G(11ms),Non-operating 320G with HDD

Operating 80G(11ms),Non-operating 32G with SSD

Qualification

Certification

CCC , CB, CE,FCC,ROHS

Power Requirement

Power Input

100V-240V/AC 1.5A

Power Consumption

40W(Max.)

Storage

Type

1*2.5 "Drive bay for STAT II HDD-320G/SSD-32G

Mechanical

Construction

Aluminum

Mounting

Wall-mount (Default integrated)/Din rail mounting

Weight/Gross weight

2.1kg/2.6kg

Dimensions

(W*D*H)

250*58*195mm
