FHD 1080P AUO TFT LCD Screen Panels EDP interface resolution 1920 x 1080 pixels
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 15.6 Inch | Resolution: | 1920*1080 |
|---|---|---|---|
| Brightness: | 300 Cd/m2 | Contrast Ratio: | 700:1 |
| Interface: | EDP ( 2 Lanes ), 30pin | Backlight: | WLED |
| Operating Temperature: | -10~60℃ | Viewing Angle: | L/R/U/D 80/80/70/70 |
| Active Area: | 344.16*193.59 Mm | ||
| High Light: | tft lcd panel,tft display module |
||
G156HTN01.0 is a color active matrix liquid crystal display composed of a TFT-LCD display,
a driver circuit, and LED backlight system. The screen format is intended to support 16:9 FHD,
1920(H) X1080(V) screen and 262k colors (RGB 6-bits data driver) with LED backlight driving circuit. All input signals are eDP ( Embedded Display Port ) interface compatible. All design rules of this module can correspond to PSWG standard.
Applications
- industrial application
- Notebook, personal computer,Laptop
Specifications
| Module number | G156HTN01.0 |
| Resolution | 1920X1080 |
| Pixel Pitch | 0.17925(H) x 0.17925 (mm) |
| Active Area | 344.16 (W) x 193.59 (H) (mm) |
| View angle | R/L/U/D 80/80/70/70 (Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 262K (6-bit) |
| Electrical Interface | eDP (2 lanes) |
| Brightness | 300 cd/m2 |
| Contrast ratio | 700:1 |
| Outline dimension | 359.5(W) X 224.3(H) X 3.55(D) (mm) |
| Gross weight | 400g (Max.) |
| Backlight | WLED |
| LED Life (hrs.) | 15K(Min.) |
| Power Consumption (W) | 5.3W(Typ.) |
| Supply Voltage (V) | 3.3V |
| Response time | 6/3 (Tr/Td) (ms) |
| temperature | operating: -10 to +60°C |
| storage: -20 to +60 °C |
Competitive Advantage
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!

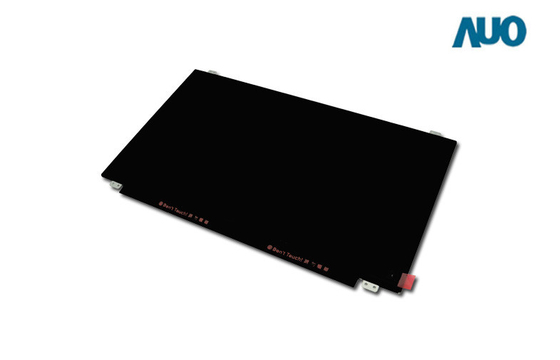

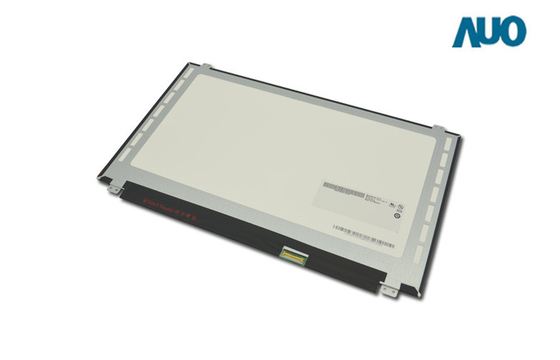

Product show:
