FSTN type black on white Segment LCD display with NT7538 Controller for medical , aerospace
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Segment LCD Module | Display Type: | FSTN |
|---|---|---|---|
| Dots: | 128*64 | AA Area: | 57.57*28.77 |
| View Direction:: | 6:0 O'Clock | Controller IC:: | NT7538 |
| Backlight Type:: | Whited | Operating Temp:: | –20ºC TO +70ºC |
| High Light: | character lcd module,blue 7 segment display |
||

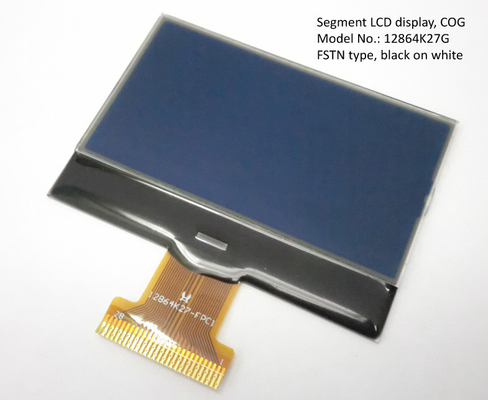

128*64 dots Segment LCD display COG FSTN type black on white
Application:
| 1 | medical |
| 2 | military |
| 3 | electric power |
| 4 | industrial control |
| 5 | aerospace |
| 6 | electronics |
| 7 | instrumentation |
| 8 | numerical control machine tools |
| 9 | automotive |
| 10 | communications |
| 11 | other fields |
Specification:
| product name.: | Segment lcd module, COG |
| Display Type: | FSTN |
| Polarizer Type: | Transflecitve, positive |
| Model NO.: | 12864K27G |
| Resolution | 128*64 |
| LCD Outline Size: | 67.3*47.9*4.50 mm |
| View Area: | 61.0*31.40 mm |
| Active Area: | 57.57*28.77 mm |
| View Direction: | 6:0 O'Clock |
| VDD | +3.3V |
| Drive Method: | 1/64 Duty; 1/9 Bias |
| Controller IC: | NT7538 |
| interface: | Serial or Parallel port,optional |
| Backlight type: | white |
| Backlight Supply Voltage: | +3.0V |
| Operating Temp: | –20ºC TO +70ºC |
| Storage Temp: | –30ºC TO +80ºC |
Our factory is founded in year 2009, Our thousands of products cover LCD / LCM/ COG including 122*32,128*64,128*128,160*160,192*64,240*128,320*240 etc
Welcome to customize product!
we have a professional R&D team working for you !
12864K27G drawing picture as below:
