Full color lcd module display Tianma 5.6 inch , RGB TFT lcd module TM056KDH02
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 5.6 Inch | Resolution: | 320x234 |
|---|---|---|---|
| Brightness: | 330 Cd/m2 | Contrast Ratio: | 300:1 |
| View Angle(L/R/U/D): | 65/65/45/65 | Interface: | TFT Specific Analog RGB |
| Storage Temperature: | -30~80℃ | Display Mode: | TN, Normal White |
| FPC: | 26 Pin | ||
| High Light: | tianma lcd display,tianma lcd module |
||
Tianma 5.6 inch TFT lcd module TM056KDH02 , specific Analog RGB
Specifications
|
Module number |
TM056KDH02 |
|
Resolution |
320(RGB) x 234 |
|
Pixel Pitch |
0.354x0.362 (mm) |
|
Active Area |
113.28x 84.708 (mm) |
|
View angle |
R/L/U/D 65/65/45/65(Deg) |
|
Mode |
TN |
|
LCD Surface |
Hard coating, 3H |
|
Number of Colors |
full color |
|
Electrical Interface |
Analog RGB |
|
Brightness |
330cd/m2 |
|
Contrast ratio |
300:1 |
|
Outline dimension |
126.5x100x5.7(mm) |
|
Backlight |
WLED |
|
Supply Voltage (V) |
3.3V |
|
Response time |
20(ms)(Typ.) |
|
Operate temperature |
-20-70 (°C) |
|
Storage temperature |
-30-80 (°C) |
|
Package |
Tianma original package; |
According to customers' various requests, we can match all accessories which inclusive of driver board, touch screen, LED backlight & LVDS cables.
Every lcd panel have been inspected by original manufacturer QC before ship out , we ensure it's conform to inspection standard.

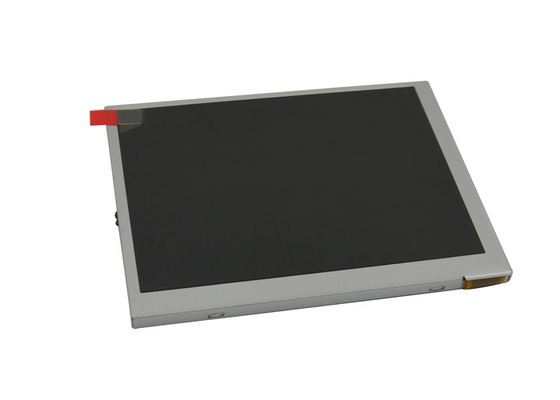

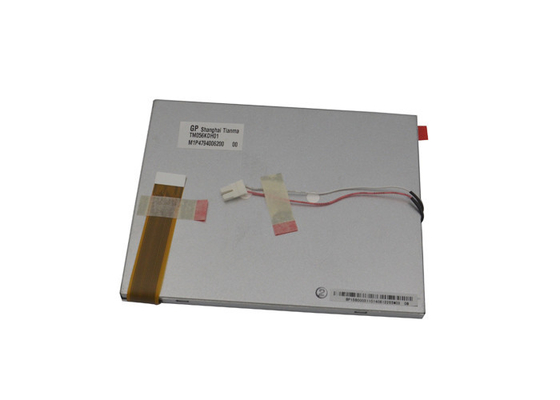

Picture Show:
