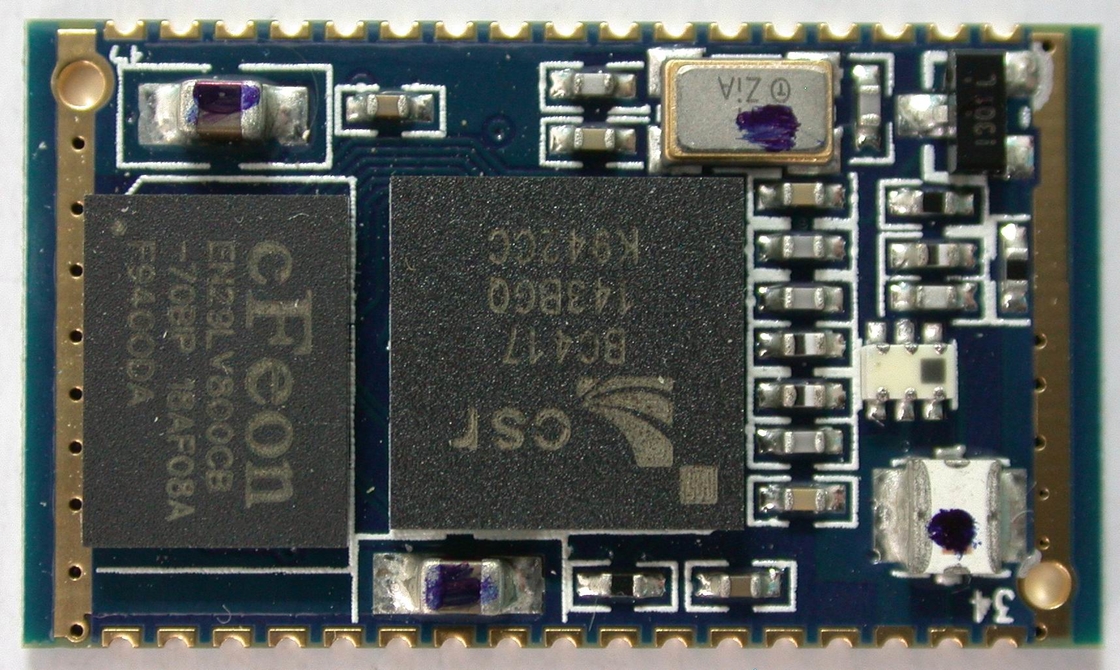

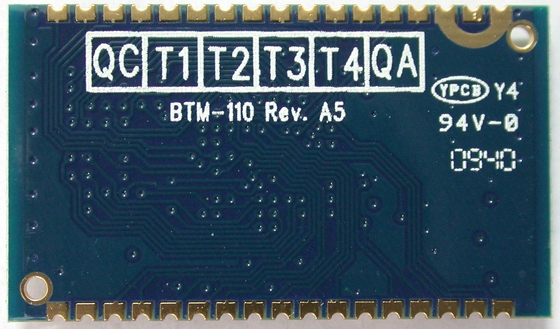

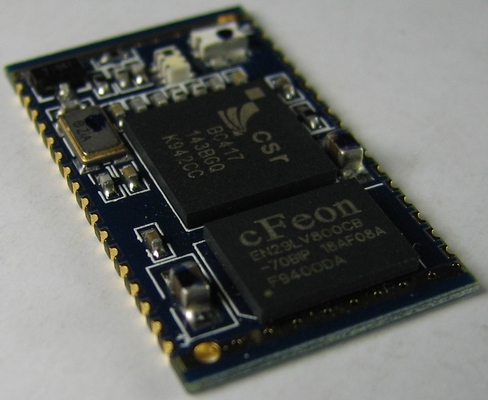

HID Bluetooth Data Module

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  HID Bluetooth Data Module Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rayson
Certification: BQB, FCC
Model Number: BTM112
Payment & Shipping Terms:
Minimum Order Quantity: 500~1K
Packaging Details: Reel/Tray/Carton
Delivery Time: 7 working days after payment for samples, 8w for MP orders
Payment Terms: T/T, L/C, Check
Supply Ability: 5~10k/day
Detailed Product Description
High Light:

wifi bluetooth module

,

bluetooth module for pc

HID Bluetooth Data Module

Specifications

Bluetooth data module

1,V2.1+EDR

2,Class2

3,8M bits

4,GPS receiver



Product Specification



Dimension

25x14.5x2.2 mm

Bluetooth Standard

V2.1+EDR

RF Power

-6dBm to +4dBm

Receiving Sensitivity

-82dBm

Program Flash Memory

8M bits

Audio Interfaces

PCM

Host Interface

USB and UART

Supply Voltage

3.0V – 3.6V



Product Description


This is a Bluetooth Class2 (max 4dBm) module. It is based on CSR Bluecore 4 chip set which can support Bluetooth V2.1+EDR standard. With regular SPP profile, the module can support maximum baud rate up to 921.6Kbps at its UART interface. The AT command set allows the host to configure the module or the communication parameters, which makes the module very flexible but easy to use. Beside of the SPP profile, the module is also suitable for data communication applications such as DUN, OPP, FTP, PBAP and HID. Voice applications such as HSP and HFP are also possible by using with external voice CODEC via PCM bus. USB interface is included which can be used as a USB to wireless UART converter.



Applications


RS232 cable replacement.
Wireless USB to wireless COM port converter.
Wireless keyboard or Wireless mouse
GPS receiver
PDA
Wireless printer
Heath care equipements.
Industrial applications



Product Benefits


 Flexible and cost effective
 Low power consumptions of only 80mW
 Compact Bluetooth stack firmware, easy to use.
