High Brightness 1600 cd / m² TFT LCD Module Panel , digital camera lcd replacement
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 15 Inch | Resolution: | 1024x768 |
|---|---|---|---|
| Brightness: | 1600 Cd/m² | Interface: | LVDS (1 Ch, 6/8-bit) |
| Backlight: | WLED | Operating Temperature: | -30~70℃ |
| View Angle: | L/R/U/D 80/80/70/80 | ||
| High Light: | tft lcd panel,tft lcd screen |
||

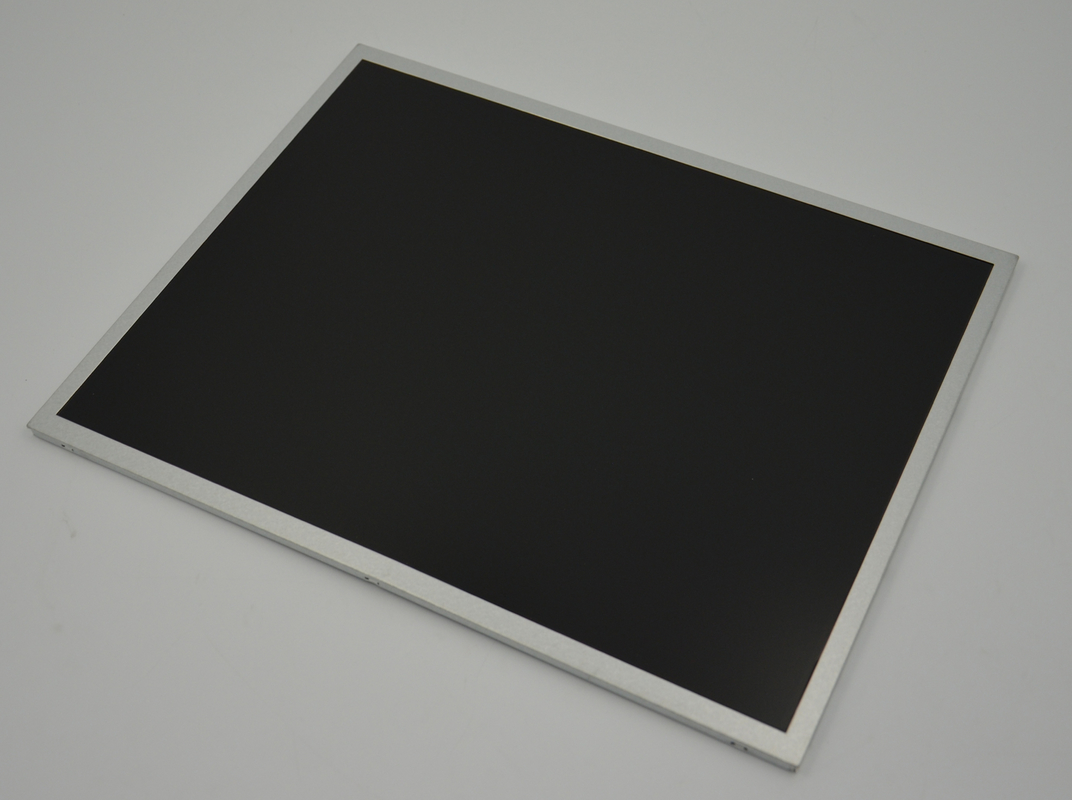

sunlight readable AUO 15'' TFT LCD panel G150XTN06.3 wide view angle
Quick Detail
- super high brightness
- wide view angle
- wide temperature
Application
- Outdoor devices
- Industrial application
Specifications
| Module number | G150XTN06.3 |
| Resolution | 1024x768 |
| Pixel Pitch | 0.297 x 0.297 (mm) |
| Active Area | 304.128(H)x228.096(V) (mm) |
| View angle | R/L/U/D 80/80/70/80 (Deg) |
| Mode | TN |
| LCD Surface | Anti-glare,3H |
| Number of Colors | 262K/16.2M |
| Electrical Interface | LVDS(1ch, 6/8 bit) |
| Brightness | 1600 cd/m2 |
| Contrast ratio | TBD |
| Outline dimension | TBD |
| Net weight | TBD |
| Backlight | WLED |
| LED Life (hrs.) | 50K |
| panel Voltage (V) | 3.3V |
| Response time | 5.7/2.3 (ms) |
| Operate temperature | -30 ~ 70 °C |
| Storage temperature | -30 ~ 70 °C |
| Operate humidity | 5-95 (%RH) |
| Storage humidity | 5-95 (%RH) |
