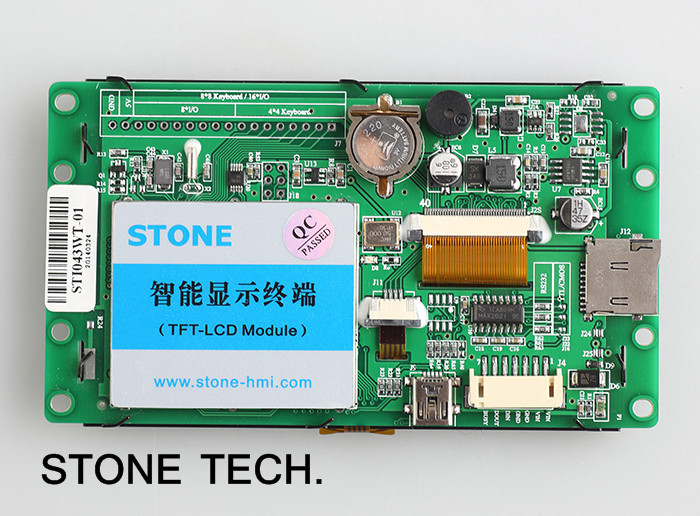

High brightness lcd display modules 4.3 " 60Hz lcd video monitor
Product Description
1. Controlled by Any MCU via simple "Command Sets"
2. Used as Touch-screeen controller & TFT-LCD display system
3. Low Cost and good quality.
4. We offer you 3 easy software to run our products.
Product Parameter
Model: STI043WT-01 (Industrial Type)
Physical Parameter | |
Model | STI043WT-01 |
Size (Inch) | 4.3" |
Resolution | 480×RGB×272 |
Pixel Spacing | 0.1905 mm × 0.0635 mm (H×V) |
Color | 65536 colors (16 bit) |
Viewing Area | 95.04 mm × 53.86mm |
Display Dimension | 97.1 mm × 56mm |
Overall Dimension | 120.4 mm × 68.6 mm × 15.5 mm(N)/ 18 mm(T) |
Net Weight | 115g(N)/ 155g(T) |
TFT Panel | A Level Industry Panel |
Touch Screen | Industry Level 4 wire resistance |
Backlight Parameter | |
Backlight Type | LED |
Brightness | 300 cd/m2 |
Contrast | 500:1 |
Backlight life | 30,000 hours |
Viewing Angle | 75°/ 75°/ 60°/ 70° (L/R/U/D) |
Working Temperature | -20°C ~ +70°C |
Working Humidity | 60°C, 90% |
Storage Temperature | -20°C ~ +70°C |
Screen Mode | Digital |
Performance Parameter | |
CPU | CortexM3 STM32F103 |
LCD Controller | CPLD EPM240 |
Refresh Rate | 60Hz |
Picture Switching Speed | 19 ms/picture (53 pictures/s) |
Flash Memory | Standard 1GB, Extension 2GB |
Memory Amount for picture | 456 images |
Interface | RS232/ TTL UART Interface |
Pictures downloading | MiniUSB2.0 (12Mbps) |
Voltage Range | DC4.5V ~ 20V (typical value: 12V) |
Power | 1.5W |
Test Report | |
MTBF | 4,250,000H |
Working Temperature | -30°C ~ +85°C |
Air Humidity | 60°C, 90% |
Continuous Vibration Testing | 10-55Hz, 1.5mm, 10G |
Impact Acceleration Testing | 6ms, 100G |
ESD Testing | 10KV |
Radiation Reliability Testing | 44W |
Advantages
With CPU & Driving Device |
Controlled by Any MCU |
Display Picture/ Text/ Curve via Commands |
65536 colour TFT display |
Touch Screen |
RS232/ RS485/ TTL UART Interface & USB port |
Wide voltage range |
Widely Used in many various Industrial Field |
Easy to Use! Powerful Function! Saving Cost and Time! |
Used as Touch-controller, TFT-LCD display system, etc. |
Other Models
Main Size of TFT LCD Module | |
Size | Resolution |
3.5" | 320*240 |
4.3" | 480*272 |
5" | 640*480; 480*272; 800*480 |
5.6" | 640*480 |
7" | 800*480; 800*600; 1024*600 |
8" | 800*600; 800*480; 1024*768 |
9" | 800*480 |
10.4" | 800*600 |
12.1" | 800*600 |
15.1" | 1024*768 |
Software Description
We offer you 3 simple softwares to work with TFT-LCD Module.
1. Assistant software: To upload pictures and files into TFT-LCD Module, and demonstrate the commands.
2. Touch Control software: To create the control file.
3. Font software: To create the font file.
Working Principle
The TFT-LCD Module communicates with the main controller via the command, then the main controller would control the machine to work after receiving the commands.
Please note: The Main controller can be designed by engineer with Any MCU.
