High contrast ratio10.4 inch Chimei LCD Panel Wide temperature for personal computer
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 10.4 Inch | Resolution: | 1024x768 |
|---|---|---|---|
| Brightness: | 500 Cd/m2 | Contrast Ratio: | 1000:1 |
| View Angle(L/R/U/D): | 88/88/88/88 | Interface: | LVDS |
| Operating Temperature: | -30~70℃ | Storage Temperature: | -30-80℃ |
| High Light: | Chimei LCD display,Industrial lcd screen |
||
10.4 inch industrial tft lcd screen full view angle high contrast ratio
Specifications:
| Module number | G104X1-L04 |
| Type | a-Si TFT LCD |
| Panel Size | 10.4 inch |
| Brand | CMI |
| Resolution | 1024x768 |
| Width:Height | 4:3 |
| Pixel Pitch | 0.2055×0.2055 (mm) |
| Active Area | 215.4×161.8(mm) |
| View angle | R/L/U/D 88/88/88/88 (Deg) |
| Mode | Super MVA, normally black, transmissive |
| LCD Surface | Anti-glare |
| Number of Colors | 262K/16.2M(6 bit/6 bit+FRC) |
| Electrical Interface | lvds(1ch, 6/8-bit) |
| Brightness | 500 cd/m2 |
| Contrast ratio | 1000:1 |
| Outline dimension | 225.5x176.3x7.96mm(Typ.) |
| Panel weight | 430g(Typ.) |
| Backlight | WLED |
| Power Consumption | 10W |
| Supply Voltage (V) | 3.3V |
| Response time | 14/11 (ms) |
| Operate temperature | -30-70 (°C) |
| Storage temperature | -30-80 (°C) |
| Application |
Special for industrial grade use
|
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- WLED backlight & Backlight replaceable & LED driver integrated;
-- Full view angle 88/88/88/88;
-- Long backlight lifetime more than 50k hours;
-- Wide temperature;
-- 6/8 bit optional;
-- Anti-glossy surface;
-- 180 Deg. rotation view support.

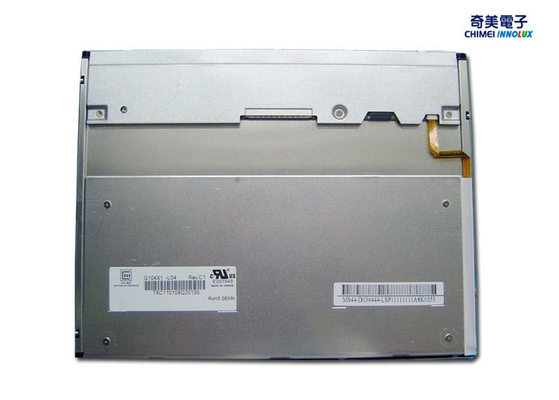

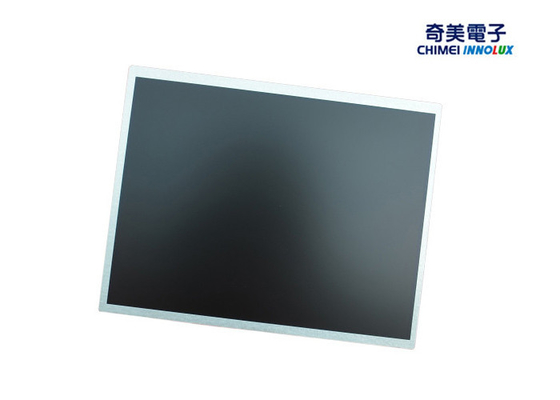

Product Show:
