High luminance CHIMEI LCD wall panel module with Reversible - scan and Digital interface
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 7inch | Resolution: | 800x480 |
|---|---|---|---|
| Brightness: | 600 Cd/m2 | Contrast Ratio: | 650:1 |
| View Angle(L/R/U/D): | 70/70/60/60 | Interface: | TTL (1 Ch,6 Bit) |
| Operating Temperature: | -30~80℃ | ||
| High Light: | Chimei LCD display,tft lcd module |
||
High luminance CHIMEI LCD module with Wide viewing angle , 7 inch tft lcd module
Quick Detail
- Wide viewing angle.
- Fast response time
- WVGA ( 800 x 480 pixels) resolution
- Wide operating temperature range (-30℃ to 85℃)
- Reversible - scan function
- Digital interface
Applications
- Automotive Monitor
- Industry Application
Specifications
|
Module number |
G070Y3-T01 |
|
Resolution |
800 x 3(RGB) x480 |
|
Pixel Pitch |
0.1950 x 0.1725 (mm) |
|
Active Area |
156 x 82.8 (mm) |
|
View angle |
R/L/U/D 70/70/60/60 (Deg) |
|
Pixel Arrangement |
R.G.B. Vertical Stripe |
|
Surface Treatment |
Hard Coating ( 3H ), AG ( Haze 25 % ) |
|
Electrical Interface |
TTL(1ch, 6-bit) |
|
Brightness |
600 (cd/m2) |
|
Contrast ratio |
650:1 |
|
Outline dimension |
168.0(W) x 94.0(H) x 6.35(D) (mm) |
|
Gross weight |
180g |
|
Backlight |
WLED |
|
Response time |
16 (ms) |
|
Display mode |
TN, Normal White |
|
Operate temperature |
-30-85 (°C) |
|
Storage temperature |
-40-90 (°C) |
|
Display Colors |
262.144 ( 6 bits ) |
|
Power Supply Voltage |
3.3v |
Competitive Advantage
>>Quality ensurance
100% original and brand new, no fake panels exists !
12 months of warranty !
You can enjoy the real panels directly from original factory;
>>Packing ensurance
Original package and Seal for batch orders, all the products are
We have professional support team to provide effective service, we are young and full of passion! in original package from original factory directly, and all the packages have labels and serial number!
>>Delivery ensurance
We have international logistic center in HK, Shanghai and Shenzhen, so we can arrange fastest and most convenient delivery for you !
>>After-Sale service
We have professional support team to provide effective service, we are young and full of passion!

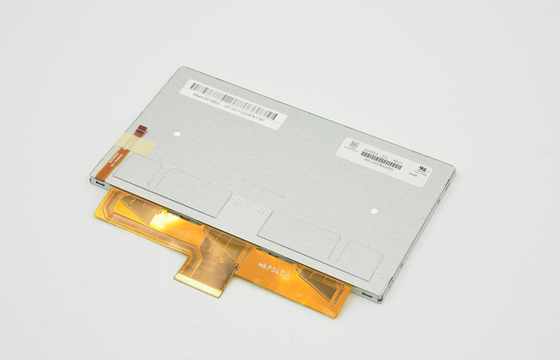

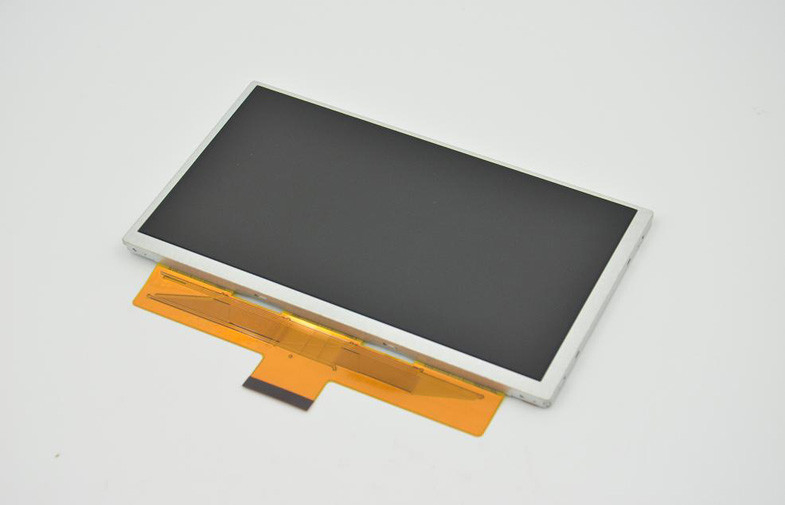

Picture Show:
