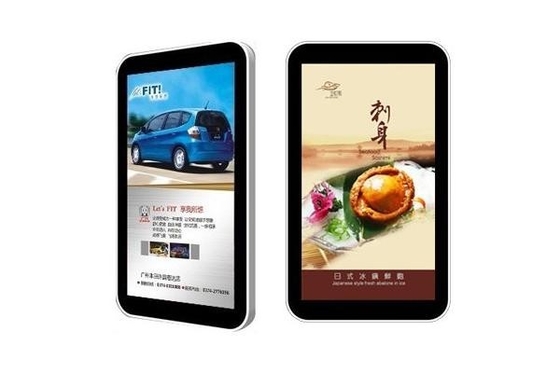

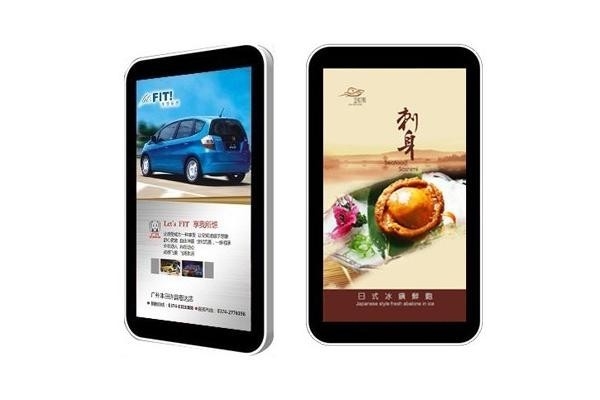

Indoor 22inch LCD vertical digital signage display advertising wall mounting elevator


Large Image :  Indoor 22inch LCD vertical digital signage display advertising wall mounting elevator Get Best Price

Product Details:
Place of Origin: Shenzhen ,China
Brand Name: LanGao
Certification: CE/ROHS/FCC/UL/ISO/3C
Model Number: LGLCD22
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm. / 1 piece
Packaging Details: Plywood or Flight Case
Delivery Time: 10-20 days
Payment Terms: T/T ,L/C ,Paypal or western Union
Detailed Product Description
Application: Indoor Brightness: 400cd/m2 ,500cd/m2 To 550cd/m2
Signal Port: USB / SD / HDMI / VGA / AV Input Voltage: AC100 To 240V 50 /60 HZ
Panel Size: 22 Inch LCD Panel: LG /Samsung Panel
Certification: CE, Rohs, ISO9000, BV ,FCC Resolution: 1920*1080
High Light:

lcd displays for advertising


backlight LCD Display


Indoor 22inch wall mounting elevator vertical LCD digital signage advertising display


LCD digital signage advertising display with Tempered glass surface&antitheft lock

wall mounted 22inch elevator digital LCD advertising display with Tempered glass surface&antitheft lock

- Digital Panel
- Cabinet: Plastic case
There is lock hole on the back.
- ABS housing available in customized color, available in standard black, white, or silver.
- Brand New LCD TFT Panel: AUO, INNOLUX, CHIMEI, Sharp, Toshiba, Samsung, LG
- Supports Music, Photo, Auto Play, and Replay in Loop
- Multi Language OSD: English, Japanese, Chinese etc.
- Supports Slide Show (interval mode: Interval time with 1, 3, 5, 10, 30, 60 seconds).
- Play through USB (2.0) / SD (High Speed) / CF Card
- Playback mode: File and folder repeat, choose to repeat playback one file or all the files.
- USB Update Content Directly in CF/SD Card
- Build-in clock and calendar function in the system of player.
- BGM (background music) mode.
- Build-in 2 High Quality Stereo Speakers: 3W x 2
- Anti-burglar Lock system
- Support Shockproof and Dustproof Function
- Timer on/off function: Support 5 groups of auto power-on / off timer. It is able to be set 5 groups of times per day and 7 days in one week.
- Power supply: AC 100V~240V, 50Hz/60Hz, Output working Voltage: 12V 4A.
- Fixation & Bracket: VESA 100mm x 100mm.
- Accessories: Power Cable x 1, User Manual x 1, Bracket x 1, Remote Control x 1, Anti-Burglar Cable x 1 (Optional).
- Working temperature: 0~40C- Working humidity: 20%~80%
- Storage temperature: -20~60C
- Storage humidity: 10%~95%
- We can customize according to the different advertising projects

File format:
AUDIO: MP3; File Suffixes: *. MP3
MPG-4 ASP (MPEG-5 Advanced Simple Profile video including GMC and QPEL support), M-JPEG;
File Suffixes: *. AVI, *. Dat, *...Vob, *. Mpg.

LCD panel specification:
Monitor Size/Profile Ratio: 22 inch Digital Panel / 16: 10
Display Resolution: WXGA (1440 X 900)
Active Area(mm): 408, 24(W)X255.15(H) mm2
Pixel Pitch (mm): 0.2835mm
Number of Colors: 16.7M (RGB 8 bits)
View Angle(R/L/T/B): 80/80/80/80
Brightness (CD/ m): 300CD/m
Contrast Ratio: 1000: 1
Response Time (ms) (at 25C) (Rising + Falling): 5 ms
Power Consumption (W): 23W
Interface: 2CH LVDS
Supply Voltage (V): 5 V
Light Source: CCFL
Outline Dimensions (mm): 428.0(W)X278.0(H)X18.5(D) mm3
Weight (g): 2500g


Indoor 22inch LCD vertical digital signage display advertising wall mounting elevator 0
