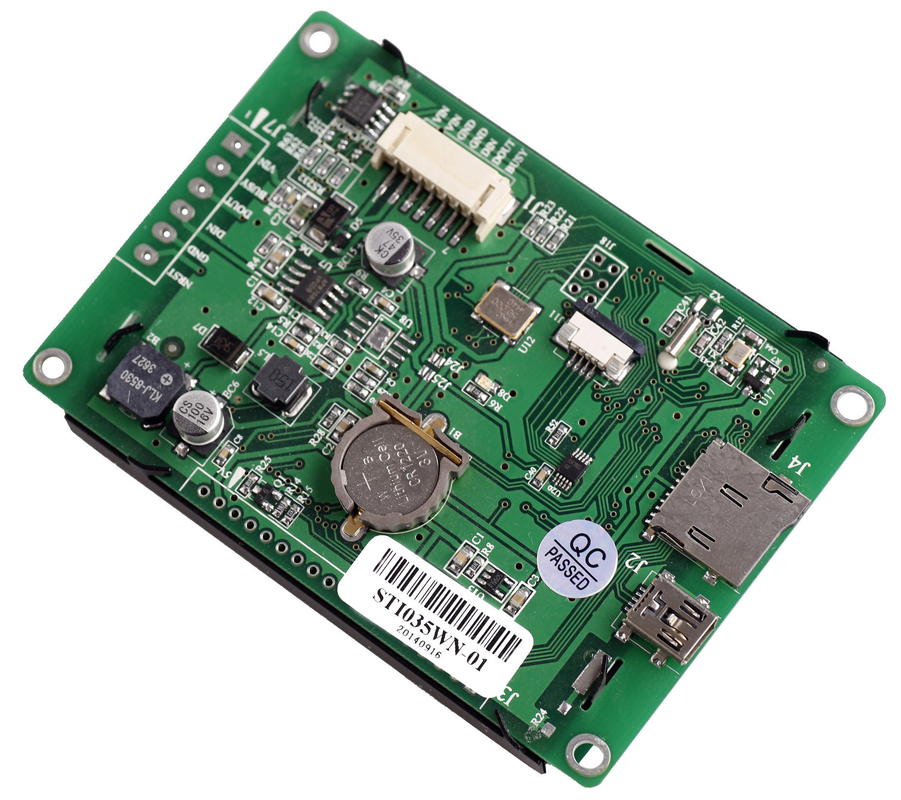

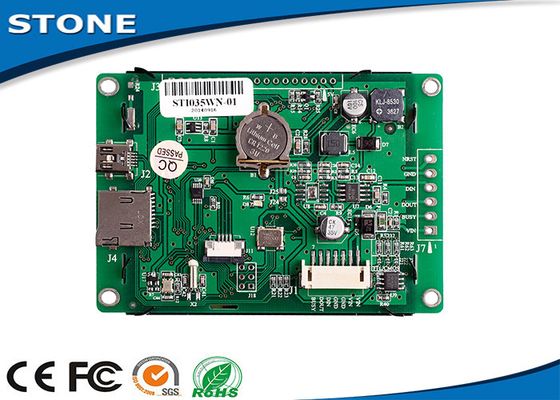

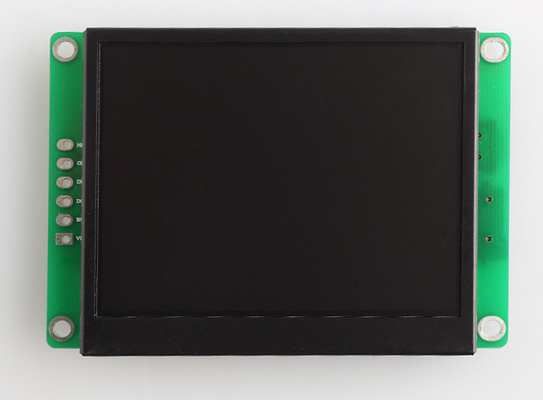

Industrial 3.5 Inch MCU LCD Touch Screen Programe For Medical

small.img.alt small.img.alt small.img.alt

Large Image :  Industrial 3.5 Inch MCU LCD Touch Screen Programe For Medical Get Best Price

Product Details:
Place of Origin: China
Brand Name: STONE
Certification: FCC, CE, RoHS, ISO9001:2008
Model Number: STI035WT-01
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD $107
Packaging Details: Box carton
Payment Terms: T/T, Western Union, Paypal
Detailed Product Description
Size: 3.5" Color: 65 K
Resolution: 320*240 Display Scale: 4:3
Backlight: LED Interface: RS232/RS485/CMOS/USB
CPU: Cortex LCD Class: A
High Light:

lcd graphic display module


lcd panel module

Industrial 3.5 Inch MCU LCD Touch Screen Programe For Medical




Product Description

1. Used as Touch-controller & TFT-LCD display system

2. Controlled by Any MCU via simple "Command Sets"

3. Low Cost HMI device


Product Parameter

Model: STI035WT-01 (Industrial Type)

Physical Parameter



 Size (Inch)




 Pixel Spacing

 0.1905 mm × 0.0635 mm (H×V)


 65536 colors (16 bit)

 Viewing Area

 69.9 mm × 52.53 mm

 Overall Dimension

 93.21 mm × 65.3 mm × 13.5 mm(N)/ 15 mm(T)

 Net Weight

 85g(N)/ 100g(T)

 TFT Panel

 A Level Industry Panel

 Touch Screen

 Industry Level 4 wire resistance

 Or without touch screen is optional.

Backlight Parameter

 Backlight Type



 250 cd/m2

 (Brightness can be adjustable in 100 levels.)



 Backlight life

 30,000 hours

 Viewing Angle

 70°/ 70°/ 50°/ 70° (L/R/U/D)

 Working Temperature

 -20°C ~ +70°C

 Working Humidity

 60°C, 90%

 Storage Temperature

 -30°C ~ +85°C

 Screen Mode


Performance Parameter


 CortexM3 STM32F103

 LCD Controller


 Refresh Rate


 Picture Switching Speed

 12 ms/picture (83 pictures/s)

 Flash Memory

 Standard 128m, Extension 4GB

 Memory Amount for picture

 416 images


 RS232/ TTL UART Interface

 (Extend to RS485 so on.)

 Pictures downloading

 MiniUSB2.0 (12Mbps) & SD card

 Voltage Range

 DC5.0V ~ 35V (typical value: 12V)



Test Report



 Working Temperature

 -30°C ~ +85°C

 Air Humidity

 60°C, 90%

 Continuous Vibration Testing

 10-55Hz, 1.5mm, 10G

 Impact Acceleration Testing

 6ms, 100G

 ESD Testing


 Radiation Reliability Testing




 With CPU & Driving Device

 Controlled by Any MCU

 Display Picture/ Text/ Curve via Commands

 65536 colour TFT display

 Touch Screen

 RS232/ RS485/ TTL UART Interface & USB port

 Wide voltage range

 Widely Used in many various Industrial Field

 Easy to Use! Powerful Function! Saving Cost and Time!

 Used as Touch-controller, TFT-LCD display system, etc.



1. Design a group of "Graphical User Interface" that you need.

2. Connect your equipment with our TFT-LCD Module by RS232, RS485 port or TTL Logic directly.(Don't need any driver program)

3. Write a control program for any MCU to work the TFT-LCD Module via "Command Sets".


Warranty Period

1. The warranty period will last 3 years after delivery.

2. If there is any technical or quality problem in warranty period, we guarantee the goods will be replaced by new product unconditionally.
