Size: | 7 Inch | Resolution: | 800x480 |
---|---|---|---|
Brightness: | 400 Cd/m2 | Contrast Ratio: | 500:1 |
View Angle(L/R/U/D): | 70/70/50/70(Deg) | Interface: | Parallel RGB |
Operating Temperature: | -30~85℃ | Storage Temperature: | -30-85℃ |
High Light: | innolux lcd screen,car lcd monitor |
Innolux 7 inch TFT lcd panel AT070TN94 Specifications:
Module number | AT070TN94 |
Type | a-Si TFT LCD |
Size | 7 inch |
Brand | Innolux |
Resolution | 800X3(RGB)X480 |
Width:Height | 16:9 |
Pixel pitch | 0.1926(W) × 0.1790(H) mm |
Active Area | 156.7(W) × 89.1(H) mm |
View angle | R/L/U/D 70/70/50/70(Deg) |
Pixel Arrangement | RGB Vertical Stripe |
Surface Treatment | Anti-glare |
Electrical Interface | Parallel RGB |
Brightness | 400(cd/m2) |
Contrast ratio | 500:1 |
Outline dimension | 164.9(W) ×100.0(H) ×5.7(D) mm |
Panel Weight | 150g(Typ.) |
Backlight | LED |
Response time | 25(ms) |
Display mode | TN, Normally White, Transmissive |
Operate temperature | -30-85(°C) |
Storage temperature | -30-85(°C) |
Display Colors | 262k/16.7M(6 bit/ 6 bit + Dithering) |
Power Consumption | 1.90W(Typ.) |
Power Supply Voltage | 3.3v(Typ.) |
Backlight lifetime | 20k hrs(Min.) |
Application |
Portable DVD Automobile etc common use |
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- 360 Deg. rotation view support;
-- Wide screen;
-- Wide temperature;
-- WLED Backlight;
-- 6/8 bit optional;
-- Anti-glossy surface.

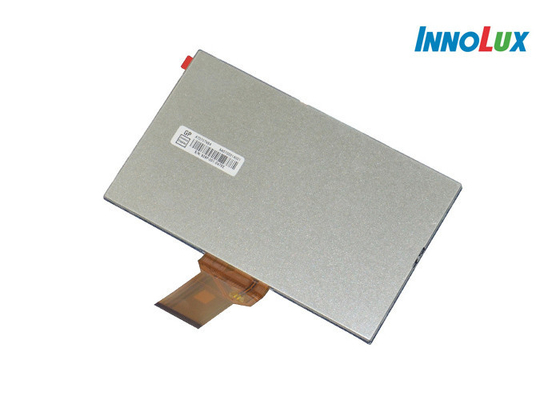

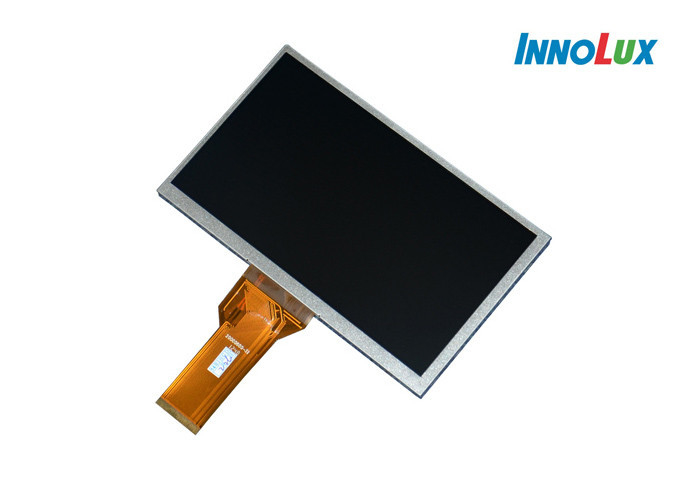

Product Show:
Applications:
