Innolux 8 inch touch screen lcd display replacement screen for laptop with Anti - glare
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size: | 8 Inch | Resolution: | 800x600 |
|---|---|---|---|
| Brightness: | 250 Cd/m2 | Contrast Ratio: | 500:1 |
| View Angle(L/R/U/D): | 70/70/50/70(Deg) | Interface: | Parallel RGB |
| Operating Temperature: | -20~70℃ | Storage Temperature: | -30-80℃ |
| High Light: | innolux lcd display,innolux lcd screen |
||

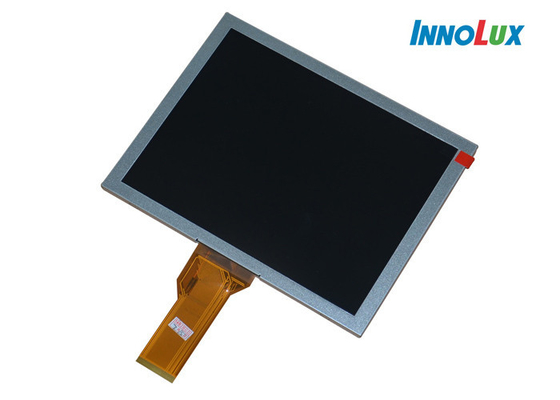

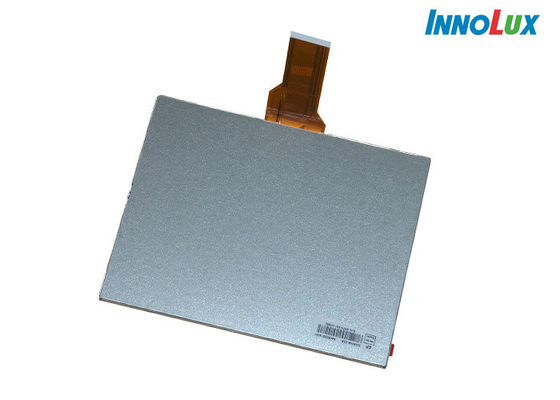

Innolux 8 inch tft lcd display EJ080NA-05B
Specifications:
| Module number | EJ080NA-05B |
| Type | a-Si tft lcd |
| Size | 8 inch |
| Brand | Innolux |
| Resolution | 800X600 |
| Width:Height | 4:3 |
| Pixel pitch | 0.2025(W) × 0.2025(H) mm |
| Active Area | 183(W) × 124.3(H) mm |
| View angle | R/L/U/D 70/70/50/70(Deg) |
| Pixel Arrangement | RGB Vertical Stripe |
| Surface Treatment | Anti-glare |
| Electrical Interface | Parallel RGB |
| Brightness | 250(cd/m2) |
| Contrast ratio | 500:1 |
| Outline dimension | 183x141x5.6mm(Typ.) |
| Panel Weight | 241g(Typ.) |
| Backlight | LED |
| Response time | 25(ms) |
| Display mode | TN, Normally White, Transmissive |
| Operate temperature | -20-70(°C) |
| Storage temperature | -30-80(°C) |
| Display Colors | 262k/16.7M(6 bit/6 bit + Dithering) |
| Power Consumption | 2.138W(Typ.) |
| Power Supply Voltage | 3.3v(Typ.) |
| Backlight lifetime | 20k hrs(Min.) |
| Application |
Portable DVD Digital Photo Frame etc common use |
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.
Product Features:
-- 360 Deg. rotation view supported;
-- Wled Backlight;
-- 6/8 bit optional;
-- Anti-glossy surface.
