Product Details:
Payment & Shipping Terms:
|
Size: | 5.6 Inch | Resolution: | 640x480 |
---|---|---|---|
Brightness: | 200 Cd/m2 | Contrast Ratio: | 500:1 |
View Angle(L/R/U/D): | 70/70/50/70(Deg) | Interface: | Parallel RGB |
Operating Temperature: | -20~70℃ | Storage Temperature: | -30-80℃ |
High Light: | innolux lcd screen,car lcd monitor |
Innolux 5.6 inch 640x480 VGA TFT lcd panel AT056TN52 V.3 Specifications:
Module number | AT056TN52 V.3 |
Type | a-Si TFT LCD |
Size | 5.6 inch |
Brand | Innolux |
Resolution | 640 × (RGB) × 480 |
Dot pitch | 0.1764(W) × 0.1764(H) mm |
Active Area | 115.7(W) × 87.47(H) mm |
View angle | R/L/U/D 70/70/50/70(Deg) |
Pixel Arrangement | RGB Vertical Stripe |
Surface Treatment | Anti-glare |
Electrical Interface | Parallel RGB |
Brightness | 200(cd/m2) |
Contrast ratio | 500:1 |
Outline dimension | 126.5(W) × 100(H) × 5.7(D) mm |
Backlight | LED |
Response time | 25(ms) |
Display mode | TN, Normally White, Transmissive |
Operate temperature | -20-70(°C) |
Storage temperature | -30-80(°C) |
Display Colors | 16.7M |
Power Supply Voltage | 3.3v(Typ.) |
Backlight lifetime | 20k hrs(Min.) |
Power consumption | 1.047W(Typ.) |
Features |
-- 360 Deg. rotation view supported; -- WLED backlight; -- Anti-glossy surface. |
Applications | Portable DVD and Digital photo frame etc common use. |
We also can provide total set such as lcd panel + touch + ad board + osd board + cables for you, quality promised.

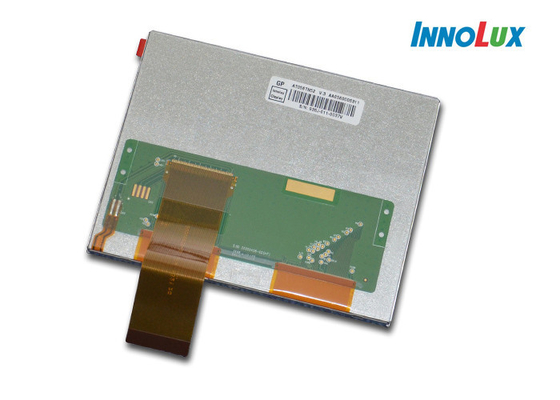

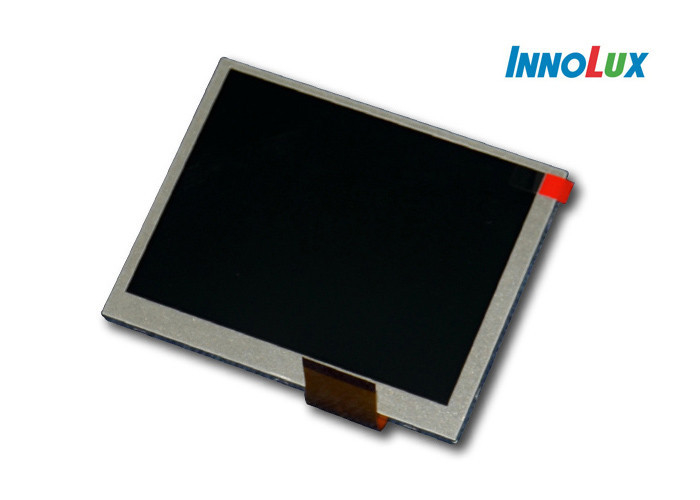

Product Show:
Applications:
Our Features:
-- We're one of the main agents of AUO/Tianma/CMI/Innolux/Mitsubishi five brands tft lcd modules in China from 2009, each piece of our products have quality promised;
-- TFT LCD Panel size range mainly focuz on 2.2" -- 24", and most of them are industrial grade panels;
-- All the panels are 100% original and brand new, no fake panels exists; Quality promised; And also provide 12 months of warranty; You can return any fake panels and charges by us. So from here you can enjoy the real panels which directly from original factory with full guarantee;
-- Original package and seal for batch orders. All the products are in original package from original factory directly, and all the packages have labels and serial number, you can check then;
-- We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly to avoid China Value Added Tax for you. So from here you can get more attractive price with more convenient delivery;
-- Our team will provide original factory technology service & professional support available for you 24 hours.
