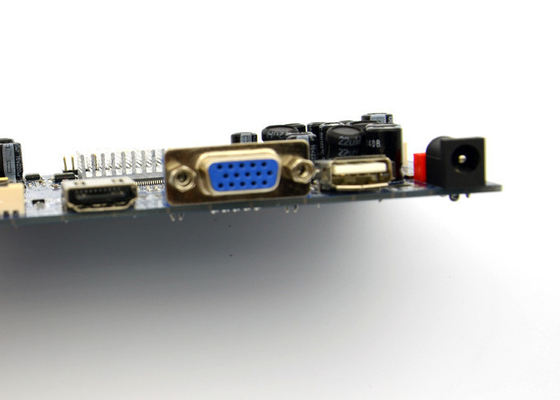

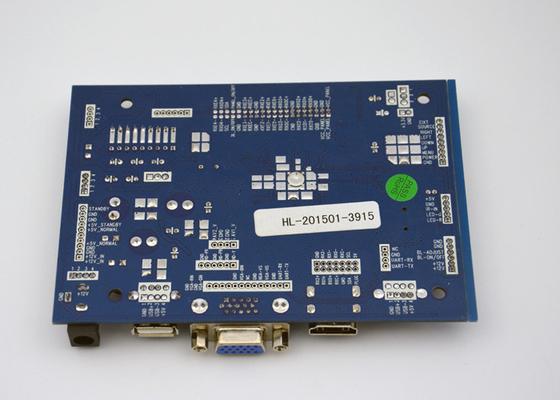

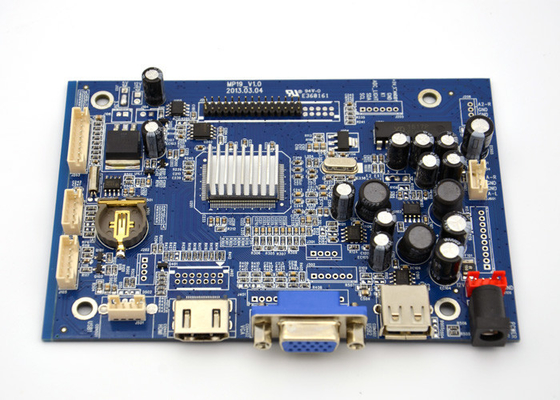

LCD driver board with HDMI , VGA , USB input for multimedia device , Advisement player
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Input: | VGA, HDMI, AV , USB | Support Resolution: | 1920*1200 |
|---|---|---|---|
| Output: | Dual Chanel LVDS | Dimention: | 125.5X83.5X15mm |
| Operating Temperature: | -20~70 | Storage Temperature: | -40~150 |
| Warranty: | 12 Month | Technology Support: | Available |
| High Light: | lcd panel driver board,lcd display driver board |
||
HDMI , VGA , USB input LCD driver board LH-MP19 for multimedia device and Advisement player
Advantages:
automatically loop play when starting up
support breakpoint memory function
support timer
suporrt HDMI,VGA,AV input.
with water subtitles show
Infrared remote control
support file updating via USB
support program upgrade via USB
Specifications:
|
Item No.: |
LH-MP19 |
|
Max resolution: |
1920x1200 |
|
Dimention: |
127x90 mm |
|
Power input: |
12V |
|
Input interface: |
HDMI , VGAI , AV , USB |
|
Output interface: |
LVDS |
|
Language: |
Chinese,English... 8 languages |
|
Optional : |
Audio output |
|
Operating Temperature: |
-20~70℃ |
|
Storage Temperature: |
-40~150℃
|
Drive lcd screen with LVDS, under resolution 1920*1080, with powerful audio and video processing functions, output of high quality picture and sound .
Two USB 2.0 interface, support HD video and pictures. Support USB copy and upgrade.
USB supported formats:
|
File Suffixes |
Video format |
Enctype |
Resolution & frame rate |
Data Rate |
|
dat,mpg, mpeg |
MPG,MPEG |
Mpeg1,2 |
1920x1080@30P |
20Mbit/sec |
|
ts, trp, tp, m2ts |
MPEG2 -TS H264-TS |
MPEG2 ,H.264 |
1920x1080@30P |
20Mbit/sec |
|
vob
|
MPEG2 -PS |
MPEG2 |
1920x1080@ 30P |
20Mbit/sec |
|
mp4 |
AVI, MP4 |
MPEG4 H.264 |
1920x1080@ 30P |
20Mbit/sec |
|
rm, rmvb
|
RMVB, RM |
rm |
1920x1080 @ 25P |
10Mbit/sec |
|
mkv
|
MKV |
H.264, MPEG1,2,4 |
1920x1080 @ 30P |
20Mbit/sec |
|
xdiv, avi |
AVI(1.0, 2.0), DMF0,1,2 |
MPEG2, MPEG4 H.264,xdiv |
1920x1080 @ 30P |
20Mbit/sec |
|
Motion JPEG
|
AVI, MOV |
JPEG |
640x480 @ 30P |
10Mbit/sec |
|
asf, wmv |
ASF (Revision 01.20.03) |
VC1 |
1920x1080 @ 30P |
20Mbit/sec |
|
FLV |
Flash |
|
|
|
