Display Screen: | 7“ LED Backlit | Resolution: | 800×600 (1,440,000) Pixels |
---|---|---|---|
Touch Panel: | 4-wire Resistive | Brightness: | 450cd/m2 |
CPU: | Intel N2800, Dual-core 1.86GHz | Memory: | 2G DDR3, Optional: 4GB |
Working Temperature: | 0~50ºC | Dimension(LWD): | 200 × 117 × 46 Mm |
High Light: | industrial touch pc,embedded touch panel pc |

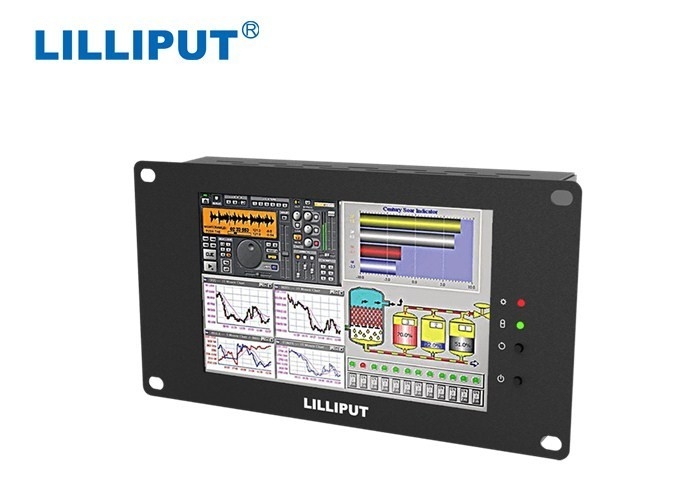

LED backlit Industrial Panel PC with RS232 Touch Panel High Resolution
LILLIPUT 7" Fleet Management Dispatch System Rugged all in one MDT with 3G GPS Wifi Bluetooth
LCD Panel all in one PC for Industrial Application.
All hardware and software customized to your requirements.
Powerful 1.86GHz dual-core CPU, 2G DDR3 RAM;
7 inch 450cd/m² brightness display with resistive touch;
RS232 × 5, COM 2 supports RS485/232/422;
Open frame mount method for optional;
Wide voltage 6-32V for optional;
Metal housing design;
HDMI & VGA output;
Dual Ethernet port;
3G/WIFI/Bluetooth/GPS.
Optional: GPS, 3G, Bluetooth, Wi-Fi 802.11 b/g/n.
Display Screen | 7“ LED backlit |
Resolution | 800×600 (1,440,000) pixels |
Touch Panel | 4-wire resistive |
Brightness | 450cd/m2 |
Aspect Ratio | 16:9 |
Contrast Ratio | 500:1 |
Viewing Angle | 140° / 120°(H/V) |
OS | Windows 7/8, Windows Embedded 7, Linux |
CPU | Intel N2800, dual-core 1.86GHz |
Memory | 2G DDR3, optional: 4GB |
Storage | PCIe mSATA SSD 32G, support up to 128G |
Chipset | Intel NM10 chipset |
L2 Cache | 1024KB |
Video Card | built-in display memory |
Sound Card | 4 tracks |
Expansion | Built-in Mini PCIe×1, optional for 3G / WIFI |
Interface | RS232×5 (COM2 support RS232/422/485), HDMI, VGA, Audio, DC 12V in, XLR, USB2.0×4, LAN×2, SIM slot, Antenna, |
Input Voltage | DC 12V, optional: DC 6-32V wide voltage |
Current | 1.0~2.0A |
Power Consumption | ≤24W |
Speaker | 1W |
Working Temperature | 0~50ºC |
Storage Temperature | -10~65ºC |
Dimension(LWD) | 200 × 117 × 46 mm |
Weight | 1225g |
Display Screen |
7“ LED backlit |
Resolution |
800×600 (1,440,000) pixels |
Touch Panel |
4-wire resistive |
Brightness |
450cd/㎡ |
Aspect Ratio |
16:9 |
Contrast Ratio |
500:1 |
Viewing Angle |
140° / 120°(H/V) |
OS |
Windows 7/8, Windows Embedded 7, Linux |
CPU |
Intel N2800, dual-core 1.86GHz |
Memory |
2G DDR3, optional: 4GB |
Storage |
PCIe mSATA SSD 32G, support up to 128G |
Chipset |
Intel NM10 chipset |
L2 Cache |
1024KB |
Video Card |
built-in display memory |
Sound Card |
4 tracks |
Expansion |
Built-in Mini PCIe×1, optional for 3G / WIFI |
Interface |
RS232×5 (COM2 support RS232/422/485), HDMI, VGA, Audio, |
Input Voltage |
DC 12V, optional: DC 6-32V wide voltage |
Current |
1.0~2.0A |
Power Consumption |
≤24W |
Speaker |
1W |
Working Temperature |
0~50ºC |
Storage Temperature |
-10~65ºC |
Dimension(LWD) |
200 × 117 × 46 mm |
Weight |
1225g |
Accessories:
1. DC adapter |
1 piece |
2. VESA screws (PM 4*6 mm) |
4 piece |
3. CD drive |
1 pieces |
4. Manual |
1 piece |
5. Wide voltage box 6-32V (optional) |
1 piece |
6. Open frame bracket (optional) |
1 piece |
7. VESA folding bracket (optional) |
1 piece |
8. VESA rail slot (optional) |
1 piece |
