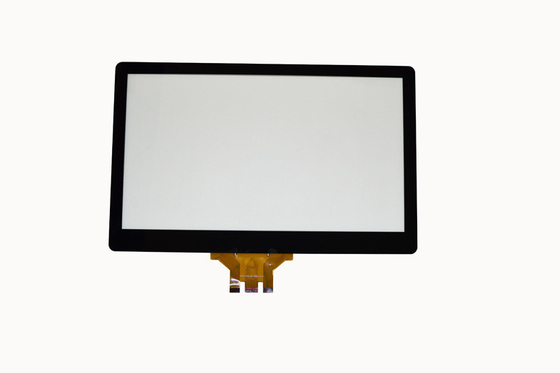

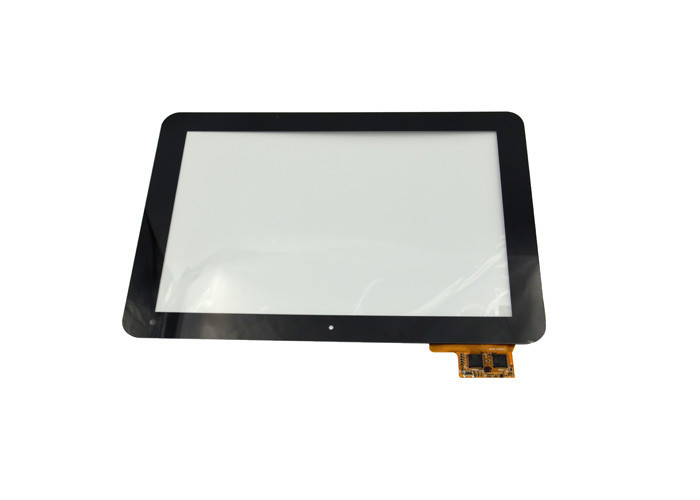

LH - CTP 7 inch capacitive LCD Touch Panel display module with Focaltech controller
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Size:: | 7 Inch | Active Area:: | 151.72 X 95.2 Mm |
|---|---|---|---|
| Overall Dimention:: | 186.5 X 116.2 Mm | Thickness:: | 1.4mm |
| Surface Hardness:: | 6H | Operate Temperature:: | -20~70 |
| Storage Temperature:: | -30~80 | Sample: | Available In 1 Week |
| High Light: | lcd touch screen display,touch screen lcd module |
||
7 inch capacitive LCD Touch Panel , with I2C interface and Focaltech controller FT5306
Quick Detail:
Cover Glass + Sensor Glass +Adhesive + FPC
Surface Hardness: 6H
IC: FT5506(Chip on Board)
Multi Touch: 10 Points
Interface: I2C
Working Voltage: 2.8-3.3V
Specification:
Model No. |
|
Size | 7 inch |
Active Area | 151.72 x 95.2 mm |
Outline Dimension | 186.5 x 116.2 mm |
Structure | Cover Glass + Sensor Glass |
FPC | Pitch=0.5 mm |
Surface Hardness | 6H |
Connection | COB |
IC Model | FT5306 |
Multi Touch | 10 Points |
| Interface | I2C |
| Working Voltage | 2.8-3.3V |
| Operating System | Android / Linux |
Transmittance | ≥86% |
Operating temperature | -20℃～70℃, ≤90%RH |
Storage temperature | -30℃～80℃, ≤90%RH |
Application:
- Smart phone
- Car navigation (GPS)
- Tablet PC (MID)
- Education electronics
- Ultra book
- All In One (AIO)
- Household appliance
- Bank system
- Smart home system
- Industrial equipment
Environment Condition:
Item | Value |
working environment | -20℃～70℃, ≤90%RH |
storage environment | -30℃～80℃, ≤90%RH |
Mechanical Characteristics:
Item | Value |
finger contact area | Φ≥5mm |
transmittance | ≥87% |
Electric Characteristics:
Item | Value |
working voltage | DC2.8~3.3V |
insulation resistance | ＞20M, DC25V |
working current | 12mA~14.5mA |
response time | ≤16ms |
Reliability Condition:
Item | condition |
high temperature and humidity | 60℃, 90%RH, 96H |
high temperature storage | 70℃/120H |
thermal shock | -20℃(0.5H)~+70℃(0.5H) by 100 cycles |
