Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen

large.img.alt
small.img.alt small.img.alt

Large Image :  Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen Get Best Price

Product Details:
Place of Origin: Taiwan
Brand Name: AUO
Certification: RoHS,UL
Model Number: G170EG01 V1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: us$130-140/pc
Packaging Details: 8pcs/ctn, 18kg/ctn,ctn size:434*278*391mm
Delivery Time: within 1 week
Payment Terms: T/T, Western Union , paypal
Supply Ability: 1000pcs per month
Contact Now
Detailed Product Description
Size: 17 Inch Resolution: 1280*1024
Brightness: 350 Cd/m² Contrast Ratio: 800:1
Interface: LVDS (2 Ch, 8-bit), 30PIN Backlight: LED
Operating Temperature: -30~85℃ View Angle: L/R/U/D 80/80/60/80
Active Area: 337.92*270.336 Mm Weight: 1350g
High Light:

AUO LCD module

,

AUO LCD screen

1280*1024 AUO 17 inch TFT LCD module Wide temperature G170EG01 V1​



Quick Detail

  • wide temperature
  • long backlight life
  • SXGA 1280X1024
  • 16.7M color (RGB 6-bit+Hi-FRC data)
  • 2 channels LVDS interface

Application

  • Industrial application



Specifications



Module number G170EG01 V1
Resolution 1280x1024,SXGA
Pixel Pitch 0.264 x 0.264  (mm)
Active Area 337.920(W) x 270.336(H)  (mm)
View angle R/L/U/D 80/80/60/80 (Deg)
Mode TN
LCD Surface Anti-glare,3H
Number of Colors 16.7M
Electrical Interface Dual channel LVDS
Brightness 350 cd/m2
Contrast ratio 800:1
Outline dimension 358.5(W) x 296.5(H) x 15.8(D)   (mm)
Gross weight 1.35 kg
Backlight WLED
LED Life (hrs.) 50K hours (Min.), replaceable
Power Consumption (W) 22(Typ.)
Supply Voltage (V) 5.0V
Response time 5  (ms)
Operate temperature -30~85℃
Storage temperature -30~85℃
Operate humidity 5-95  (%RH)
Storage humidity 5-95  (%RH)



Our Advantage



>>Quality ensurance

100% AUO original and brand new!

warranty :12 months !

You can enjoy the real panels directly from AUO factory;



>>Packing ensurance

all the products are in original package from original factory directly, and all the packages have labels andserial number!



>>Delivery ensurance

We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you !



>>After-Sale service

we have many years good experience on display solution.

any question, we will reply you within 12 hours.



Picture Show:

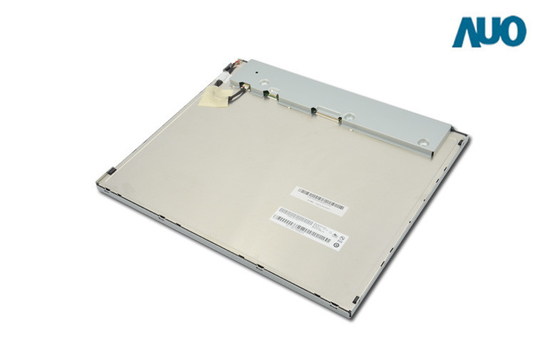

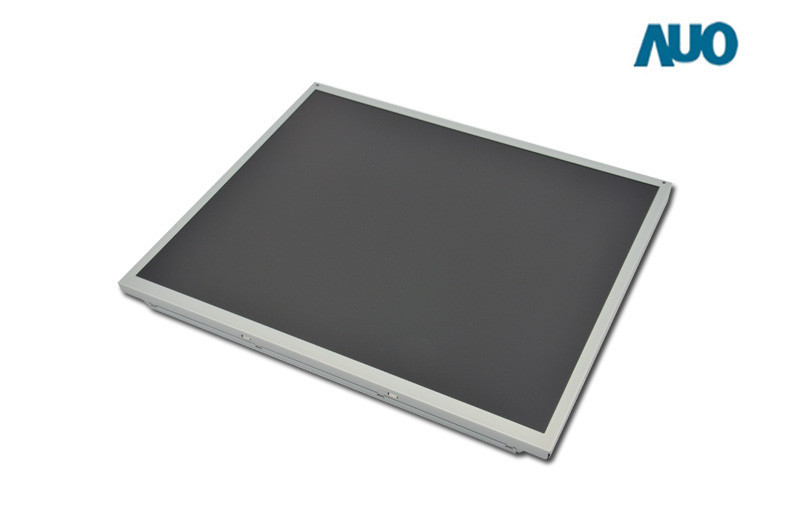

Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen 0Long backlight life AUO LCD panel G170EG01 V1 , Anti glare lcd screen 1
