Low Cost Bluetooth Hid Module Audio

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  Low Cost Bluetooth Hid Module Audio Get Best Price

Product Details:
Place of Origin: China
Brand Name: Rayson
Certification: BQB, FCC
Model Number: BTM374
Payment & Shipping Terms:
Minimum Order Quantity: 500~1K
Packaging Details: Reel/Tray/Carton
Delivery Time: 7 working days after payment for samples, 8w for MP orders
Payment Terms: T/T, L/C, Check
Supply Ability: 5~10k/day
Detailed Product Description
High Light:

bluetooth oem module

,

blue tooth module



Low Cost Bluetooth Hid Module Audio



Product Description

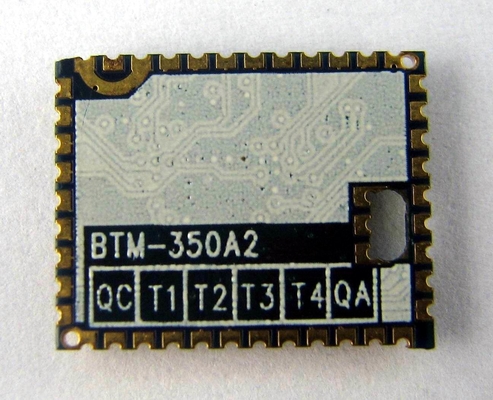

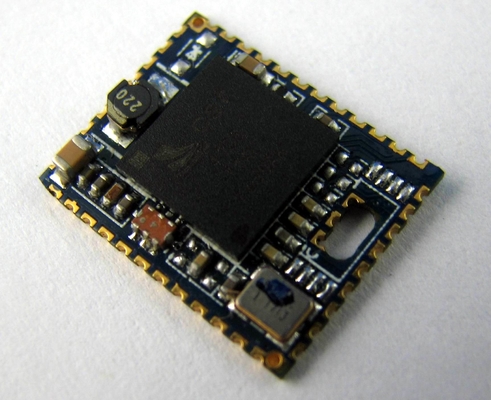

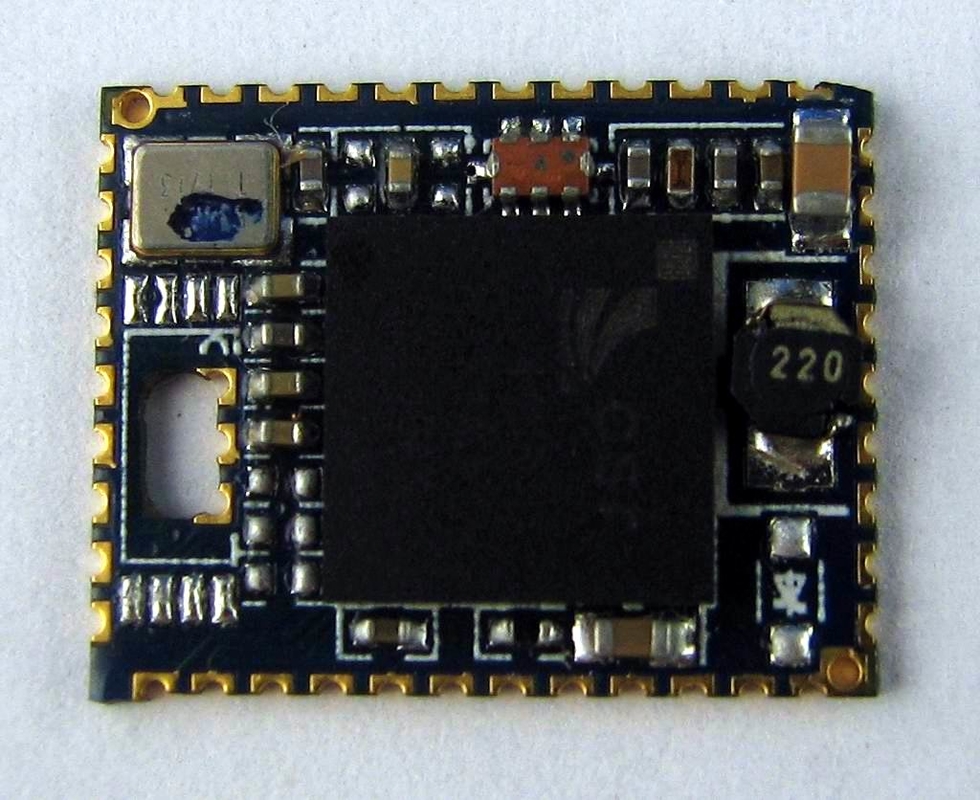

This is a Bluetooth Class2 (max 4dBm) module. It is based on CSR Bluecore 4 chip set with internal CODEC dedicated to voice applications. The dual roles firmware includes HSP and Audio Gateway functions which provide one stop solution to all the wireless voice applications. The friendly user interface include volume control, pairing, mute, call controls and battery monitoring that make product design much easier than before.
The integrated voice CODEC help to simplify the system design and lower the BOM cost as well. AT command set is also available for call control which allow the host system to implement more complicated functions.



Applications


 Bluetooth audio gate way device.
 Bluetooth headset or client device.



Product Benefits


 Due roles (HSP & AG) Bluetooth software stack
 Low power consumptions of only 92mW
 compact size



Product Specification



Dimension

16.5x13x2.2 mm

Bluetooth Standard

V2.0+EDR

RF Power

-6dBm to +4dBm

Receiving Sensitivity

-80dBm

Program Flash Memory

6M bits

Audio Interfaces

Analog,  PCM

Host Interface

UART

Supply Voltage

3V – 3.6V
