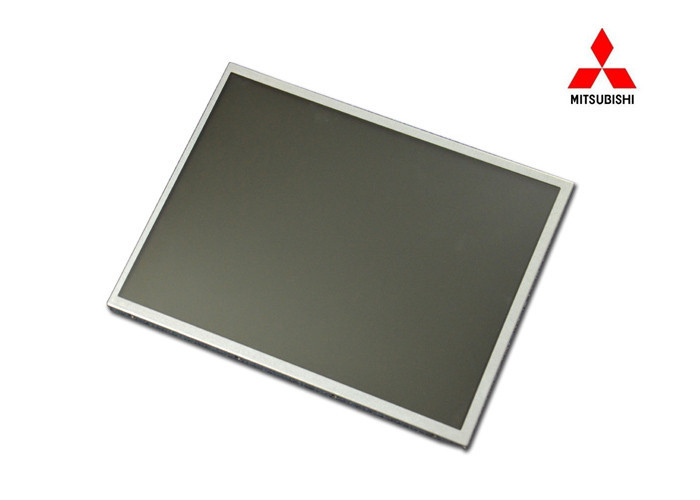

Mitsubishi big transflective lcd display screen 15" AA150XS11 IPS , normally black 1100nits

Large Image : Mitsubishi big transflective lcd display screen 15" AA150XS11 IPS , normally black 1100nits Get Best Price

Product Details:

Place of Origin:	Japan
Brand Name:	Mitsubishi
Certification:	RoHS,UL
Model Number:	AA150XS11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiated
Packaging Details:	Mitsubishi original package
Delivery Time:	within 1 week
Payment Terms:	T/T,Western Union,Paypal
Supply Ability:	1000pcs per week

Contact Now

Detailed Product Description

Size:	15 Inch	Resolution:	1024x768
Brightness:	1100 Cd/m2	Contrast Ratio:	1000:1
View Angle(L/R/U/D):	85/85/85/85(Deg)	Interface:	LVDS
Operating Temperature:	-20~70℃	Storage Temperature:	-20-80℃
High Light:	mitsubishi lcd display , mitsubishi lcd panel

Mitsubishi 15 inch tft lcd AA150XS11

Specifications:

Module number	AA150XS11
Type	a-Si TFT LCD
Panel Size	15 inch
Brand	Mitsubishi
Resolution	1024x768
Width: Height	4:3
Pixel Pitch	0.297X 0.297(mm)
Active Area	308.1 X 232.1(mm)
View angle	R/L/U/D 85/85/85/85(Deg)
Mode	IPS, normally black, transmissive
LCD Surface	Clear, Hard coating (3H)
Number of Colors	262k/16.7M (6-bit/6-bit +Hi-FRC)
Electrical Interface	LVDS(1ch, 6/8-bit)
Brightness	1100 cd/m2
Contrast ratio	1000:1
Outline dimension	326x255x12.6mm(Typ.)
Panel weight	1.28kgs(Typ.)
Backlight	WLED
Working lifetime	60K hrs(Min.)
Supply Voltage (V)	3.3V
Response time	24 (ms)
Operate temperature	-20-70 (°C)
Storage temperature	-20-80 (°C)
Application	Industrial grade use.

We also can provide total set such as lcd panel + touch panel + ad board + osd board + cables + Power Supply etc accessories for you, quality promised.

Product Features:

--Long lifetime more than 60K hours at least;

--Wide view angle;

--WLED backlight & Backlight replaceable;

--Ultra high brightness and sunlight readable;

--6/8 bit optional;

--180 Deg. rotation view support;

--High color gamut.

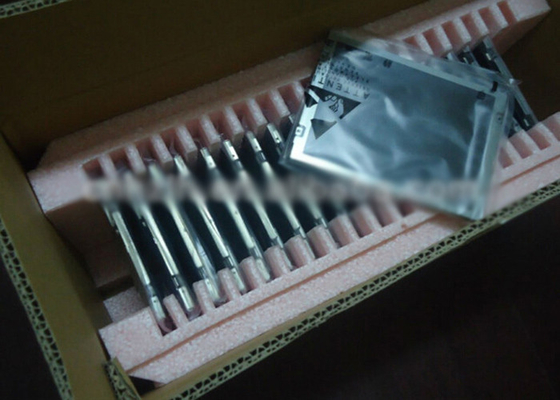

Product Show:

Mitsubishi big transflective lcd display screen 15" AA150XS11 IPS , normally black 1100nits 0
